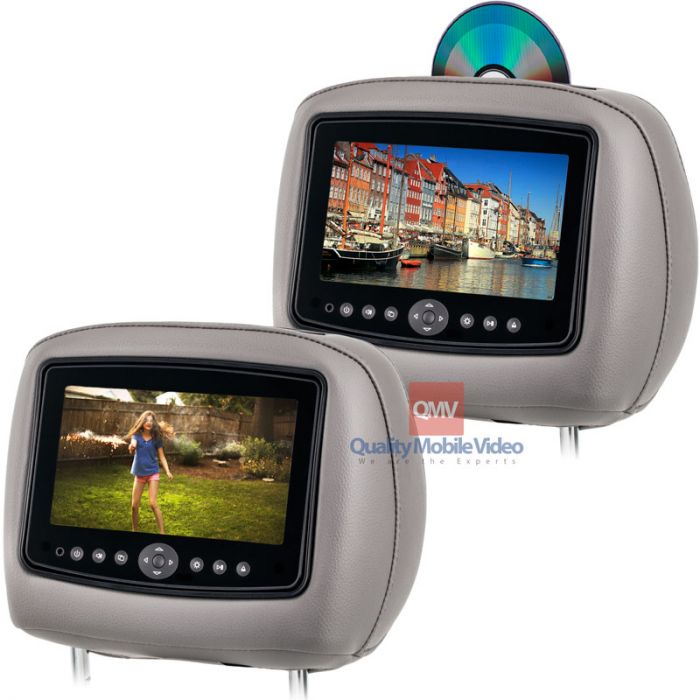

Rosen Car Show CS9000 Headrest Entertainment System for 2011 - 2016 Ford F-250

Rosen Car Show DVD Headrest System Installed



Two - 2 Channel headphones are included



OPTIONAL: HDMI input and HDMI dongle with USB



DVD Loading slot

Monitor features:
• 7 inch high definition LCD displays for excellent video quality
• Resolution: 800 x 480 pixels
• Two factory-match headrests with integrated headrest monitors
• Tablet-look styling, with bottom mounted controls
• Swivel screen for optimal viewing even when vehicle seat is not in an optimal position
• Front 3.5mm Audio Video input for easy connection to media players and other devices
• Built in FM modulator for listening to audio through the vehicles audio system
• Full control buttons to operate the unit without the remote control
• Share media between both screens, play one DVD (if equipped) on both screens
• Each unit is able to watch it's own sources in addition to sharing sources
• Optional HDMI input - HDMI source can be displayed on both screens and has a USB charging port for phones, tablets, Amazon Fire TV Stick, Roku, or Google Chromecast

Configurable sources:
• Single DVD and slave display
• Dual DVD players
• Slave monitors only

Optional HDMI:
• For use with Single DVD, Dual DVD, and slave monitors (Can also be purchased later as an Upgrade Kit)
• Provides a single HDMI input that is viewable on both displays
• Provides a 1 amp 5 volt USB power port for charging phones as they are used as a video source

Inputs and Outputs:
• 2 - Audio Video outputs on control box, slave to each monitor (Non-HDMI control box)
• 2 - Audio Video outputs on control box, slave to each monitor (HDMI control box)
• 1 - RCA Audio Video input on control box (Non-HDMI control box)
• 1 - HDMI input with USB charge port (HDMI control box)
• 1 - Wired FM modulator output (Rosen Wired FM modulator sold separately)
• 2 - IR output
• 1 - 12 volt triggered output

DVD features: (Requires system to be configured with DVD)
• Plays DVD, VCD, CD-RW, CD-R, DVD-R, DVD-RW, MP3, MPEG4, and JPEG
• Region 1 DVD player
• Electronic shock protection with built in buffer
• Dolby® Digital Decoder for surround sound

OEM Matching:
• Headrests are factory color matched to your vehicles interior
• Leather matches in grain and texture
• Matching color stitching if vehicle is equipped with contrast stitching
• Chrome hollow posts so all wiring is concealed with in the seat
• Central control box that both headrests connect to provide and provide video inputs and outputs
• Independent lab crash safety tested and meet or exceed factory vehicle crash tests (Certificate is available)

NOTE: Rosen replacement headrests are made to order, build time is 1-2 business days, please allow time for assembly before shipping. Please select vehicle color carefully as these headrests are special order items. Correctly ordered but non-matching headrests are exchanged with correctly matching headrests.
