Anderson 6810G2 SB120 Standard High Current power connector
$16.99
In stock
SKU
6810G2
Expert Knowledge
Talk to a specialist
- Safely disconnect high current power supplies and batteries
- Anderson SB120 Blue High current power connector
- Genderless design mates with itself

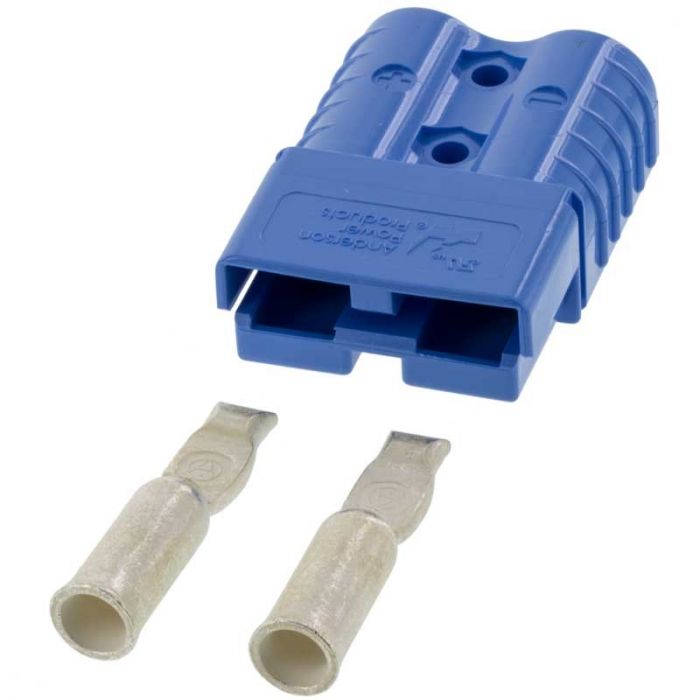

- (1) Anderson SB120 6810G2 Power connector
- (2) Anderson 1319G4 4 Gauge Silver Plated Wire contacts
Unit includes: (1) Anderson SB120 6810G2 Power connector, (2) Anderson 1319G4 Silver Plated Wire contacts
Anderson 6810G2 SB120 Standard High Current power connector
Anderson 6810G2 SB120 Standard High Current power connector
-
Features:
- SB120 Blue High current power connector
- Durable design built by Anderson Power Products
- Polycarbonate standard housing
- Stainless Steel retention spring
- Genderless design mates with itself
- Extended temperature range down to -40°C
- UV resistant
- Includes (2) 1319G4 4 Gauge silver plated contacts for superior electrical performance and durability
- Up to 10,000 mating cycles
- 600 Volt 210 amp UL 1977 Rated
- Sold individually
- Dimensions:
- Housing: 1-3/4" (W) x 2-1/2" (L) x 13/16" (H)
| Manufacturer | Anderson |
|---|---|
| Part Number | SB120 |
| Input wire gauge | 4 gauge |
| Color | Blue |
| Warranty | 1 Year |
| UPC Code | 086429132997 |
| Return period | 30 days |
| Exchange period | 30 days |
