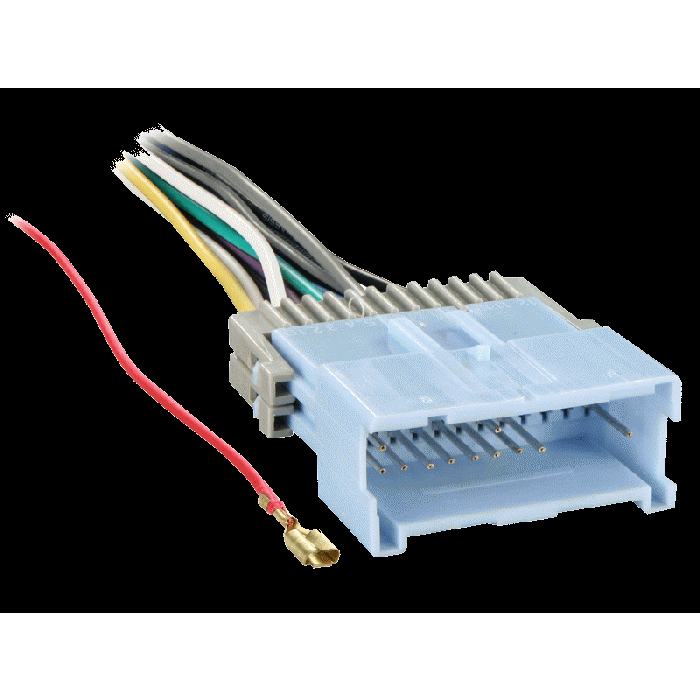

DISCONTINUED - Metra 70-2103-1 Turbo Wire Car Stereo wire harness for 2004 - 2009 General Motors vehicles
$13.99
Out of stock
SKU
70-2103-1
Expert Knowledge
Talk to a specialist
- Used to install and aftermarket car stereo for select GM vehicles
- Includes 24 Pin factory plug
- Includes 12 Pin factory plug
- Does not retain Onstar, or factory door chimes
Unit includes: Wire harness, and Instruction manual
Metra 70-2103-1 Turbo Wire Car Stereo wire harness for 2004 - 2007 General Motors features:
Connections:
Fitments:
GM:
Metra 70-2103-1 Turbo Wire Car Stereo wire harness for 2004 - 2007 General Motors features:
-
Features
- Used to install and aftermarket car stereo for select GM vehicles
- Includes 24 Pin factory plug
- Allows for the installation of an aftermarket radio using the existing factory wiring and connectors
- ABS plastic for maximum reliability
- Factory OEM quality
- Makes replacing the factory car stereo wiring very easy
- No cutting of factory wiring needed
- THIS HARNESS DOES NOT SUPPLY AN ACCESSORY LEAD. AN ACCESSORY LEAD WILL NEED TO BE OBTAINED FROM ANOTHER SOURCE. ALSO ALL OF THE FACTORY WARNING CHIMES WILL NO LONGER FUNCTION.
Connections:
- Yellow – 12V Constant
- Red – 12V Accessory
- Black - Ground
- Orange – Dash Light Dimmer/Illumination
- Green – Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White – Left Front Speaker (+)
- White with Black Stripe – Left Front Speaker (-)
- Purple – Right Rear Speaker (+)
- Purple with Black Stripe – Right Rear Speaker (-)
- Gray – Right Front Speaker (+)
- Gray with Black Stripe – Right Front Speaker (-)
Fitments:
GM:
- 2005 - 2006 Chevy Cobalt
- 2005 - 2006 Chevy Equinox
- 2004 - 2008 Chevy Malibu
- 2004 - 2008 Chevy Malibu Maxx
- 2005 - 2009 Pontiac G6
| Manufacturer | Metra |
|---|---|
| Part Number | 70-2103-1 |
| Wiring harness function | Replace Factory Radio |
| Warranty | 1 Year |
| Vehicle Year | 2004, 2005, 2006, 2007, 2008, 2009 |
| Vehicle Brand | Chevrolet, Pontiac |
| UPC Code | 086429117734 |
| Item Returns | This item can be returned |
Write Your Own Review
Customer Questions
Wiring Harnesses Explained
What do all of the wire colors mean? Aftermarket manufacturers have made car stereo receiver installation an easier process by using a standardized wire color scheme. We walk you through what each individual wire does, this way if you have an installation that doesn't perform properly you will have the resources to begin troubleshooting your installation.
