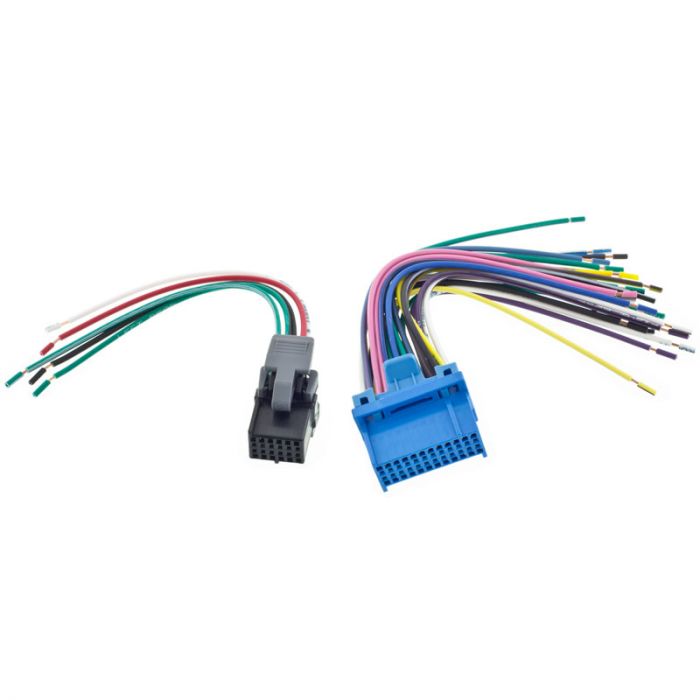

Metra 71-2103-1 TurboWires Wiring Harness General Motors 2004-2007 Vehicles

Metra 71-2103-1 TurboWires Wiring Harness General Motors 2004-2007 Vehicles

Metra 71-2103-1 Car Stereo Wire Harness for GM vehicles - Connector detail

More Views

Metra
Free Shipping on orders $99+

Overall Rating 0 (Based on 0 reviews)

Metra 71-2103-1 Product Highlights

  • Used to repair the factory harness for select GM vehicles
  • Includes 24 Pin factory plug
  • Includes 12 Pin factory plug
  • Can be used to repair a harness where the plugs have been cut off or damaged
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
Save money on all Metra installation hardware when you purchase more than one installation piece of hardware!

Overview

Unit includes: Wire harness, and Instruction manual

Metra 71-21003 Turbowires for GM Radio harness to OEM radio features:

    Features
  • Used to repair the factory harness for select GM vehicles
  • Includes 24 Pin factory plug
  • Includes 12 Pin factory plug
  • Can be used to repair a harness where the plugs have been cut off or damaged
  • ABS plastic for maximum reliability
  • Factory OEM quality
  • Makes replacing the factory car stereo wiring very easy


24 Pin Connector Connections:
  • A1) White/Black Left Front Speaker (-)
  • A2) White Left Front Speaker (+)
  • A3) Purple/Black Right Rear Speaker (-)
  • A4) Purple Right Rear Speaker (+)
  • A5) Green Left Rear Speaker (+)
  • A6) Green/Black Left Rear Speaker (-)
  • A7) Gray Right Front Speaker (+)
  • A8) Gray/Black Right Front Speaker (-)
  • A9) White/Blue Steering Wheel Controls
  • A10) Yellow/Brown 10v. Reference
  • A11) Yellow/Brown 10v. Reference (Malibu & Malibu Maxx only)
  • A12) Black Ground
  • B1) Yellow 12v. Constant
  • B2) Black/White Amp Sense (Equinox only)
  • B3) Brown/Yellow Remote Radio Control (Cobalt only)
  • B4) Brown/Blue Remote Radio Control (Malibu & Malibu Maxx only)
  • B5) Green/White No Function
  • B6) Blue/White Amplifier Turn-On for Equinox (antenna turn-on for Malibu, Malibu Maxx & G6)
  • B7) Green/Violet No Function
  • B8) Blue/Black No Function
  • B9) Pink GMLAN Serial Data / Class II
  • B10) Pink GMLAN Serial Data (Malibu, Malibu Maxx & G6 needs both Pink wires)
  • B11) Dk. Blue/Pink No Function
  • B12) White/Red Rear Seat Audio (Malibu & Malibu Maxx)


12 Pin Connector Connections:
  • A-G) No Connection
  • H) White Right Audio Signal (+)
  • J) Red Left Audio Signal (+)
  • K) Black Audio Common
  • L) Green/Black Cel Tel Voice Low Ref./Navi Audio Signal (-)
  • M) Green/White Cel Tel Voice Signal/Navi Signal (+)


Fitments:

GM:
  • 2005 - 2006 Chevy Cobalt
  • 2005 - 2006 Chevy Equinox
  • 2004 - 2008 Chevy Malibu
  • 2004 - 2008 Chevy Malibu Maxx
  • 2005 - 2009 Pontiac G6


Technical Specifications

Manufacturer Metra
Part Number 71-2103-1
Warranty 1 Year
Chassis Size No
Color Black
Vehicle Year 2004, 2005, 2006, 2007
Vehicle Brand Chevrolet, Pontiac
Vehicle Model No
UPC Code 086429138432
