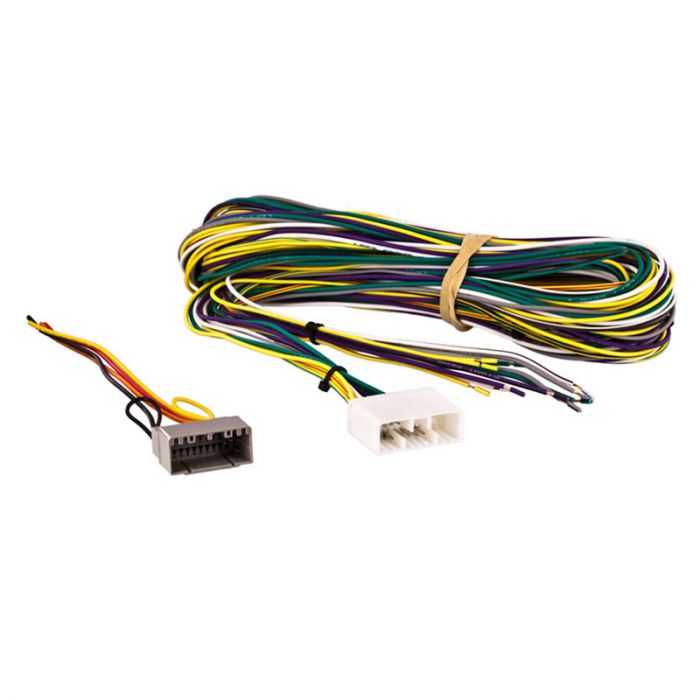

Metra TurboWires 70-6512 Wiring Harness Amplifier Bypass Dodge Ram 2002-2004 Vehicles
$26.99
Out of stock
SKU
70-6512
Expert Knowledge
Talk to a specialist
- Used to install and aftermarket car stereo and bypass factory amplifier without cutting stock connections
- Includes 22 Pin plug for power and ground connections
- Includes 18 Pin plug for speaker connections
- 208" Long leads for amplifier bypass
Unit includes: Extension Wire harness, Power harness, and Instruction manual
Metra 70-6512 Factory Amplifier Bypass Harness for 2002 - 2004 Dodge Ram:
Connections:
Fitments:
Dodge Ram:
Metra 70-6512 Factory Amplifier Bypass Harness for 2002 - 2004 Dodge Ram:
-
Features
- Used to install and aftermarket car stereo and bypass factory amplifier without cutting stock connections
- Includes 22 Pin plug for power and ground connections
- Includes 18 Pin plug for speaker connections
- 208" Long leads for amplifier bypass
- Bypass Harness is plugged in at the factory amplifier and ran to the location of the aftermarket radio or the aftermarket amplifier
- Allows for the installation of an aftermarket radio using the existing factory wiring and connectors
- ABS plastic for maximum reliability
- Factory OEM quality
- Makes replacing the factory car stereo wiring very easy
- No cutting of factory wiring needed
Connections:
- Yellow – 12V Constant
- Red – 12V Accessory
- Black - Ground
- Blue - Power Antenna
- Orange – Dash Light Dimmer/Illumination
- Green – Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White – Left Front Speaker (+)
- White with Black Stripe – Left Front Speaker (-)
- Purple – Right Rear Speaker (+)
- Purple with Black Stripe – Right Rear Speaker (-)
- Gray – Right Front Speaker (+)
- Gray with Black Stripe – Right Front Speaker (-)
Fitments:
Dodge Ram:
- 2002 - 2005 Ram (Infinity sound system)
- 2002 - 2005 Ram SRT10 (without hands free option)
Note: SRT-10 trim package with the hands free capable option, and the 2004 Dodge Ram non-SRT trim packages, please refer to the 70-6510 amplifier bypass harness.
| Manufacturer | Metra |
|---|---|
| Part Number | 70-6512 |
| Wiring harness function | Replace Factory Radio |
| Warranty | 1 Year |
| Vehicle Year | 2002, 2003, 2004 |
| Vehicle Brand | Dodge |
| UPC Code | 086429115259 |
| Item Returns | This item can be returned |
