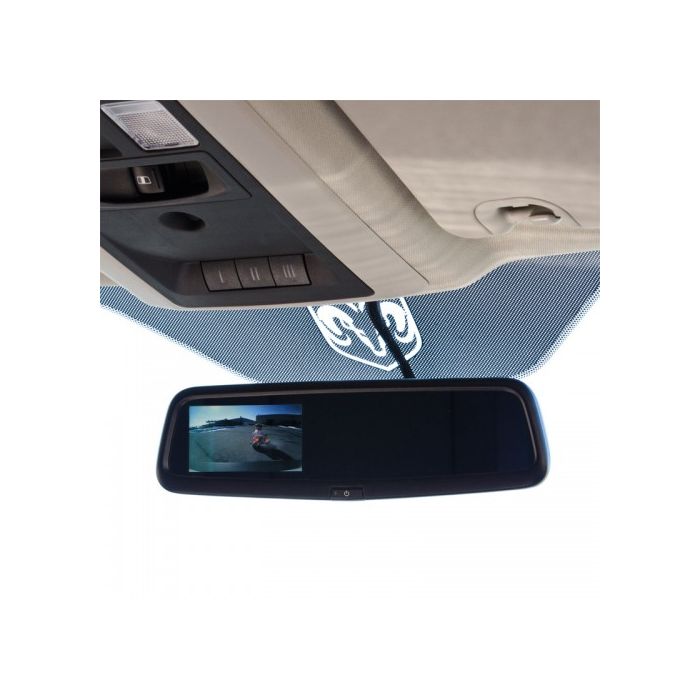

Slimline OEM Auto Dimming Mirror with 3.5" Display (Twist Off Mount) 9002-9618

Slimline OEM Auto Dimming Mirror with 3.5" Display (Twist Off Mount) 9002-9618

Slimline OEM Auto Dimming Mirror with 3.5" Display (Twist Off Mount) 9002-9618

More Views

Quality Mobile Video
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Quality Mobile Video 9002-9618 Product Highlights

  • Glass Mount Easy Twist Mount Ability
  • Bright 3.5" LCD Display
  • Auto Dimming
  • Adapter Makes Easy for Universal Camera Input
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist


This slimline mirror has the large bright LCD display of our popular 9002-9515 mirror, but in a sleeker, more compact package. It does so by using a wider 16:9 aspect ratio 3.5" screen vs. the more conventional 4:3 aspect ratio. And, it comes with the new twist-off "tri-lobe" windshield mount found on many newer vehicles from Ford, Chrysler, and others.

This high quality authentic OEM mirror comes with a universal harness that lets you connect it to any standard aftermarket camera, including our own high-grade universal camera, which is available separately (click here).

Brandmotion specializes in bringing the same equipment found on today's new cars and trucks direct to you. This mirror is identical to OEM upgrade mirrors costing hundreds more, and connects easily. The outline of the hidden 3.5” monitor is completely invisible until you put your car in reverse, unlike many less advanced systems available in the aftermarket. Professional installation is recommended.

  • An OEM-grade replacement for your vehicle's factory original mirrorthe only available twist-off mount
  • Large 3.5” color backup monitor displays vividly when you put your car in reverse
  • Compatible with all standard backup cameras through the included installation harness
  • Includes harness with RCA jack
  • Display on/off button
  • Increased vehicle resale value
  • One year factory warranty
  • Smaller form factor than our comparable 9002-9515 3.5" display mirror
  • Super bright 3.5" TFT 16:9 LCD Mirror Monitor
  • High resolution display
  • Auto dimming
  • Twist-off tri-lobe windshield mount - found on select newer Ford and Chrysler vehicles


This OEM rear view mirror with 3.5" backup monitor is compatible with all vehicles with a compatible windshield mounting plate, known as the twist-off or tri-lobe mount. If your vehicle has a mirror that mounts from the headliner (it's not on the windshield) or uses the conventional wedge-shaped "D-tab" windshield footplate, you will need to use our other mirrors .

We do not recommend trying to remove your vehicle's existing windshield mount without professional help.

Our mirrors will work with any vehicle that uses 12 DC current. In many cases the electrical connections can be made at the mirror. In other cases it may be necessary to make connections at the fuse/ junction box.

Technical Specifications

Manufacturer Quality Mobile Video
Part Number 9002-9618
Modulation NTSC only
Homelink No Homelink transmitter
Auto Dimming Yes - Full Auto Dimming
Product Options No Compass and Temperature Guage
Options No
Warranty 1 Year
Color Black
Viewing Angle No
Camera diameter No
Case included No
Connector Type RCA Cable
Built in Microphone No
Parking grid lines No
Reverse Image No
Trigger wire Yes
Waterproof ingress protection No
Auto on/off Yes
Audio Video inputs 1 Video Input
Back up camera type No
Built in Bluetooth No Bluetooth
Built in Speakers No
Camera Sensor type No
Cigarette Lighter Cord Included No
Image Flip Function No
Infrared Illumination No
LCD back light type LED
LCD Screen Brightness 500 Nit
Mirror Mount Type Glass Mount
LCD Screen Size 3 inch - 4 inch
Native Screen Resolution 480 x 234
Slide track on back No
Mount included No
Wireless Remote Control No
Widescreen Display 16:9 Widescreen Display
Wireless Transmission No, wired connection
Operation Voltage 12 - 15 Volt DC
Compass N/A
Temperature N/A
Vehicle Year N/A
Vehicle Brand N/A
Vehicle Model N/A
UPC Code No

Write Your Own Review

You're reviewing: Slimline OEM Auto Dimming Mirror with 3.5" Display (Twist Off Mount) 9002-9618

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Install (5 star for easy)

Ask questions receive answers.

Posted by Freddie, Friday, July 31, 2015


Is this slimline OEM mirror compatible with a 2012 Ford Escape??? Slimline OEM Auto Dimming Mirror with 3.5" Display (Twist Off Mount) 9002-9618 Can you recommend a good backup camera?


  • Posted by Mike Yang on Friday, July 31, 2015
    A: Yes, the slimline would be compatible with the 2012 Ford Escape.

Please login to ask a product question

Quality Mobile Video
Ships Free!
Your Price: $399.99
$0.00 Tax Outside CA
Item sku:9002-9618
Availability:In stock
