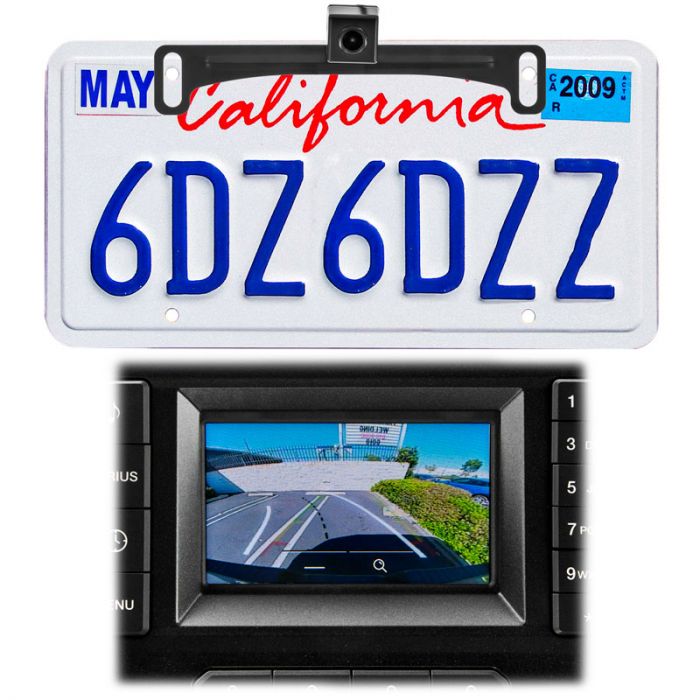

Audiovox ACA801 License Plate Mounted Backup Camera with Auto Trajectory Lines
$109.99
In stock
Only 2 left
SKU
ACA801
Expert Knowledge
Talk to a specialist
- Dual mount camera with behind license plate mount and lip mount bracket for multiple mounting options
- Cut wire to allow camera to be used as a front camera or reverse camera
- Auto adjusting trajectory lines that provide visual reference as you turn into parking spaces, the lines curve as you move
- 180° Viewing angle
Unit includes: License plate backup camera, Video extension cable, Power input cable, License plate bracket, Surface mount bracket, and Instruction manual
Audiovox ACA801 License Plate Mounted Backup Camera with Auto Trajectory Lines
Audiovox ACA801 License Plate Mounted Backup Camera with Auto Trajectory Lines
- Features:
- Dual mount camera with behind license plate mount and lip mount bracket for multiple mounting options
- Cut wire to allow camera to be used as a front camera or reverse camera
- Auto adjusting trajectory lines that provide visual reference as you turn into parking spaces, the lines curve as you move
- High quality 1089 HD CCD imaging device for excellent color and low light capability
- 180° Viewing angle
- Small compact design
- Low light sensitivity <0.1 Lux
- Waterproof IP68 rated
- Operation temperature: -10°C - 55°C
- Voltage: 12Vdc
- Inputs and Outputs
- (1) - RCA video output
- (1) - Power and ground input
- (1) - Cut wire for image orientation
- Dimensions:
- Unit dimensions (License plate bracket): 7-3/4" (W) x 2" (H) x 1-1/4" (D)
- Unit dimensions (Surface mount bracket): 1-1/2" (W) x 1-3/8" (H) x 1-1/2" (D)
| Manufacturer | Audiovox |
|---|---|
| Part Number | ACA801 |
| Camera Sensor type | CMOS |
| Back up camera type | License Plate Camera |
| License Plate Camera Type | Behind plate mount |
| Camera diameter | 2.96 mm |
| Viewing Angle | 180 degrees |
| Wireless Transmission | Wired connection |
| Waterproof ingress protection | IP68 - Dust; Immersion beyond 1 m |
| Reverse Image | Selectable |
| Parking grid lines | Trajectory Lines |
| Infrared Illumination | No |
| Built in Microphone | No |
| Connector Type | RCA Cable |
| Modulation | NTSC only |
| Operation Voltage | 8-15 Volt DC |
| Battery Powered | Hard wired |
| Color | Black |
| Warranty | 1 Year |
| UPC Code | 044476129452 |
| Return period | 30 days |
| Exchange period | 30 days |
