PAC AP4-CH31 2011 - 2015 Chrysler, Dodge, Maserati Add an Amplifier interface for Alpine™ / Beats™ / HK™ amplified sound systems

$344.99
In stock
SKU
AP4-CH31

Key Features

  • Provides all connections to add amplifiers to factory 2011 - 2015 Chrysler, Dodge, Jeep and RAM audio systems
  • Provides a Full-range output equalized output with volume control from stock stereo
  • 3-Band parametric EQ with adjustable center and "Q"
  • Remote turn on output
  • Bass control knob included
  • Plug and Play installation

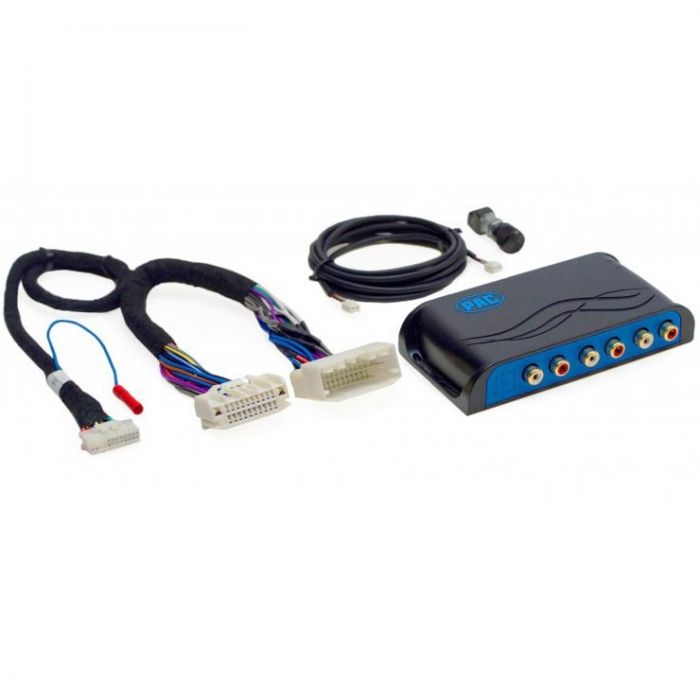

Unit includes: A) AmpPro Interface, B) AP4-CH31-HAR 22-pin harness (Dual MS CAN) Power and speaker harness, C) Bass knob, D) Knob harness and Instruction manual

PAC AP4-CH31 2011 - 2015 Chrysler, Dodge, Maserati Add an Amplifier interface for Alpine™ / Beats™ / HK™ amplified sound systems
    Interface Features:
  • Interface provides 6-channel output to connect aftermarket amplifiers to an existing stock stereo system
  • Provides a Full-range output equalized output with volume control from stock stereos that have factory equalization and data-bus volume controls
  • Allows the connection of aftermarket amplifiers to factory radio as though the stock headunit were an aftermarket radio
  • Retains all Can-Bus messages and alerts from Uconnect, factory navigation, factory Bluetooth, parking assist systems and rear seat entertainment
  • Full balance and fader control from the factory radio
  • Provides amplifier turn on output for external amplifiers
  • Optional TosLink digital output for digital connection to DSP, EQ's and ampifiers with a direct digital signal PAC APA-TOS1 Toslink Fiber-Optic Audio Output
  • Designed only for vehicles with premium sound systems. Vehicle must be equipped with Alpine, Beats, or Harmon Kardon badge on the door speakers, center speaker, or factory subwoofer
  • Includes Bass control knob
  • Complete Plug-and-Play with included harness for no cutting of factory cabling
  • Interface can be used in 2-channel / 4-channel / 6-channel modes for adding a subwoofer amp all the way to all new amplifiers
  • Dual LED for troubshooting and programming
  • PC programmable with AmpPro app
  • Firmware updates via PC programming
  • PAC AP4-CH31 2011 - 2015 Chrysler, Dodge, Jeep and RAM Radio/Amplifier interface Instruction manual
    Audio features:
    • Disables factory equalization curve
    • 3-band parametric EQ with adjustable Q-factor and frequency center to fine tune your system
    • Bass: 60Hz / 80Hz / 100Hz / 120Hz Q-factor: 0.50 / 1.0 / 1.5 / 2.0
    • Mid-range: 500Hz / 1KHz / 1.5KHz / 2.5KHz Q-factor: 0.75 / 1.0 / 1.25 / 1.50
    • High-range: 7.5KHz / 10KHz / 12.5KHz / 15KHz Q-factor: 0.75 / 1.25
  • Adjustable bass control with included rotary knob
  • 5-volt RCA pre-amp outputs (Output can be lowered to 4 volts)
    Inputs and Outputs
  • 3 - Factory audio connections with included harnesses
  • 3 - RCA audio outputs for front rear and subwoofer
  • 1 - Blue with White stripe - Amplifier turn on output
  • 1 - Bass knob control
    Vehicle fitment:
    Chrysler
  • 2011 - 2014 300
    Dodge
  • 2011 - 2014 Charger
  • 2011 - 2015 Journey
    Maserati
  • 2015 Ghibli
  • 2014 Quattroporte
More Information
Manufacturer PAC
Part Number AP4-CH31
Integration Module Add amplifiers to factory radio
Wiring harness function Replace Factory Radio
RCA Pre-amp Audio inputs 3 Pairs (Front, Rear, Subwoofer)
Warranty 1 Year
Vehicle Year 2011, 2012, 2013, 2014, 2015
Vehicle Brand Chrysler, Dodge, Maserati, Ram
UPC Code 609098819978
Return period 30 days
Exchange period 30 days
