PAC AP4-GM61 2014 - 2019 Cadillac / Chevrolet / GMC Add an Amplifier interface for Bose™ amplified sound systems
$480.99
In stock
SKU
AP4-GM61
Expert Knowledge
Talk to a specialist
- Provides all connections to add amplifiers to factory 2012 - 2018 Toyota and Lexus Radio / Amplifier interface for vehicles with JBL sound systems
- Provides a Full-range output equalized output with volume control from stock stereo
- 3-Band parametric EQ with adjustable center and "Q"
- Remote turn on output
- Bass control knob included
- Plug and Play installation

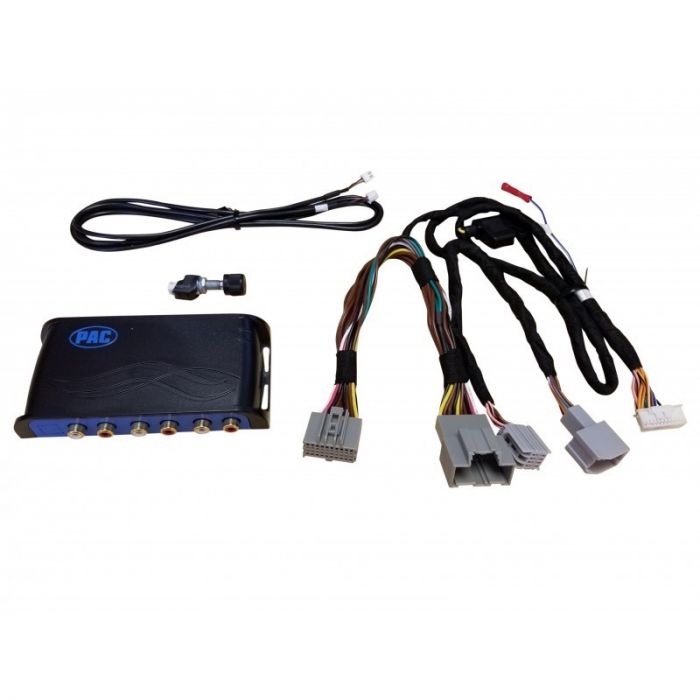

Unit includes: A) AmpPro Interface, B) AP4-TY11-HAR IE Bus Power and speaker harness, C) Bass knob, D) Knob harness and Instruction manual
PAC AP4-GM61 2014 - 2019 Cadillac / Chevrolet / GMC Add an Amplifier interface for Bose™ amplified sound systems
PAC AP4-GM61 2014 - 2019 Cadillac / Chevrolet / GMC Add an Amplifier interface for Bose™ amplified sound systems
- Interface Features:
- Interface provides 6-channel output to connect aftermarket amplifiers to an existing stock stereo system
- Provides a Full-range output equalized output with volume control from stock stereos that have factory equalization and data-bus volume controls
- Allows the connection of aftermarket amplifiers to factory radio as though the stock headunit were an aftermarket radio
- Retains all Can-Bus messages and alerts from OnStar™, factory navigation, factory Bluetooth, parking assist systems and rear seat entertainment
- Full balance and fader control from the factory radio
- Provides amplifier turn on output for external amplifiers
- Optional TosLink digital output for digital connection to DSP, EQ's and ampifiers with a direct digital signal PAC APA-TOS1 Toslink Fiber-Optic Audio Output
- Designed only for vehicles with premium sound systems. Vehicle must be equipped with badge on the door speakers, center speaker, or factory subwoofer or Sony audio system
- Includes Bass control knob
- Complete Plug-and-Play with included harness for no cutting of factory cabling
- Interface can be used in 2-channel / 4-channel / 6-channel modes for adding a subwoofer amp all the way to all new amplifiers
- Dual LED for troubshooting and programming
- PC programmable with AmpPro app
- Firmware updates via PC programming
- PAC AP4-GM61 2014 - 2019 Cadillac / Chevrolet / GMC Add an Amplifier interface for Bose™ amplified sound systems Instruction manual
- Factory tuner locations
- Compatibility notes:
- Must have Infotainment system RPO code IO5 or IO6 to be compatible
- To verify the "IO" RPO code on your vehicle, check the glove compartment for a silver sticker with these codes. If this sticker is not present, you must scan the QR code on the GM label found in the driver's door jamb. The RPO codes will be listed in alphabetical order in either scenario
-
Audio features:
- Disables factory equalization curve
- 3-band parametric EQ with adjustable Q-factor and frequency center to fine tune your system
- Bass: 60Hz / 80Hz / 100Hz / 120Hz Q-factor: 0.50 / 1.0 / 1.5 / 2.0
- Mid-range: 500Hz / 1KHz / 1.5KHz / 2.5KHz Q-factor: 0.75 / 1.0 / 1.25 / 1.50
- High-range: 7.5KHz / 10KHz / 12.5KHz / 15KHz Q-factor: 0.75 / 1.25
- Adjustable bass control with included rotary knob
- 5-volt RCA pre-amp outputs (Output can be lowered to 4 volts)
- Inputs and Outputs
- 3 - Factory audio connections with included harnesses
- 3 - RCA audio outputs for front rear and subwoofer
- 1 - Blue with White stripe - Amplifier turn on output
- 1 - Bass knob control
- Vehicle fitment:
- Cadillac
- 2015 - 2018 Escalade
- Chevrolet
- 2016 - 2018 Camaro
- 2015 - 2018 Colorado
- 2014 - 2019 Corvette
- 2017 - 2018 Cruze
- 2018 Equinox
- 2014 - 2019 Impala
- 2016 - 2018 Malibu
- 2014 - 2018 Silverado
- 2015 - 2019 Silverado HD
- 2015 - 2018 Suburban
- 2015 - 2019 Tahoe
- 2018 - 2019 Traverse
- GMC
- 2018 - 2019 Acadia
- 2015 - 2018 Canyon
- 2014 - 2018 Sierra
- 2015 - 2019 Sierra HD
- 2018 Terrain
- 2015 - 2019 Yukon
- 2015 - 2019 Yukon XL
| Manufacturer | PAC |
|---|---|
| Part Number | AP4-GM61 |
| Integration Module | Add amplifiers to factory radio |
| Wiring harness function | Replace Factory Radio |
| RCA Pre-amp Audio inputs | 3 Pairs (Front, Rear, Subwoofer) |
| Warranty | 1 Year |
| Vehicle Year | 2014, 2015, 2016, 2017, 2018, 2019 |
| Vehicle Brand | Cadillac, Chevrolet, GMC |
| UPC Code | 60909882610 |
| Return period | 30 days |
| Exchange period | 30 days |
