PAC AP4-TY12 2012 - 2018 Toyota and Lexus Add an Amplifier interface for JBL™ amplified sound systems
$344.99
In stock
SKU
AP4-TY12
Expert Knowledge
Talk to a specialist
- Provides all connections to add amplifiers to factory 2012 - 2018 Toyota and Lexus Radio / Amplifier interface for vehicles with JBL sound systems
- Provides a Full-range output equalized output with volume control from stock stereo
- 3-Band parametric EQ with adjustable center and "Q"
- Remote turn on output
- Bass control knob included
- Plug and Play installation

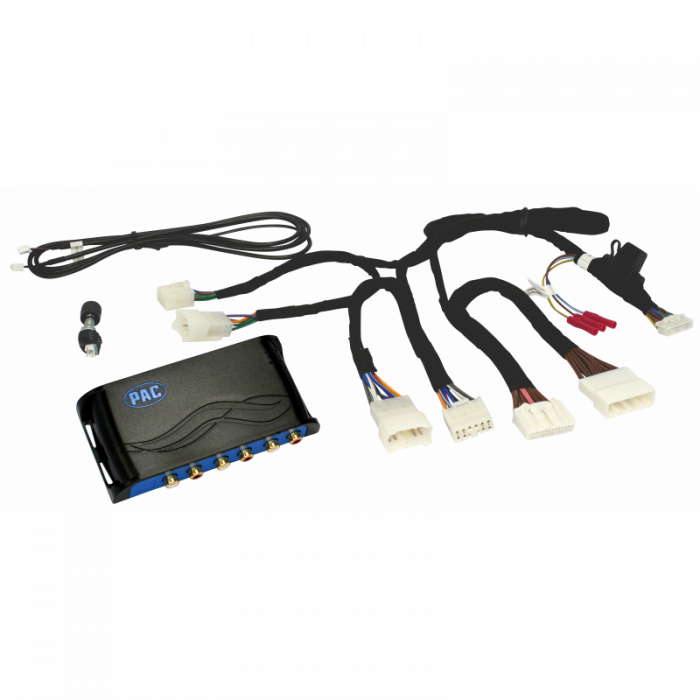

Unit includes: A) AmpPro Interface, B) AP4-TY21-HAR 24-pin and 54-pin harness (MS CAN) (Dual MS CAN) Power and speaker harness, C) Bass knob, D) Knob harness and Instruction manual
PAC AP4-TY12 2012 - 2018 Toyota and Lexus Add an Amplifier interface for JBL™ amplified sound systems
PAC AP4-TY12 2012 - 2018 Toyota and Lexus Add an Amplifier interface for JBL™ amplified sound systems
- Interface Features:
- Interface provides 6-channel output to connect aftermarket amplifiers to an existing stock stereo system
- Provides a Full-range output equalized output with volume control from stock stereos that have factory equalization and data-bus volume controls
- Allows the connection of aftermarket amplifiers to factory radio as though the stock headunit were an aftermarket radio
- Retains all Can-Bus messages and alerts from Sync, factory navigation, factory Bluetooth, parking assist systems and rear seat entertainment
- Full balance and fader control from the factory radio
- Provides amplifier turn on output for external amplifiers
- Optional TosLink digital output for digital connection to DSP, EQ's and ampifiers with a direct digital signal PAC APA-TOS1 Toslink Fiber-Optic Audio Output
- Designed only for vehicles with premium sound systems. Vehicle must be equipped with badge on the door speakers, center speaker, or factory subwoofer or Sony audio system
- Includes Bass control knob
- Complete Plug-and-Play with included harness for no cutting of factory cabling
- Interface can be used in 2-channel / 4-channel / 6-channel modes for adding a subwoofer amp all the way to all new amplifiers
- Dual LED for troubshooting and programming
- PC programmable with AmpPro app
- Firmware updates via PC programming
- PAC AP4-TY12 2012 - 2018 Toyota and Lexus Radio / Amplifier interface Instruction manual
-
Audio features:
- Disables factory equalization curve
- 3-band parametric EQ with adjustable Q-factor and frequency center to fine tune your system
- Bass: 60Hz / 80Hz / 100Hz / 120Hz Q-factor: 0.50 / 1.0 / 1.5 / 2.0
- Mid-range: 500Hz / 1KHz / 1.5KHz / 2.5KHz Q-factor: 0.75 / 1.0 / 1.25 / 1.50
- High-range: 7.5KHz / 10KHz / 12.5KHz / 15KHz Q-factor: 0.75 / 1.25
- Adjustable bass control with included rotary knob
- 5-volt RCA pre-amp outputs (Output can be lowered to 4 volts)
- Inputs and Outputs
- 3 - Factory audio connections with included harnesses
- 3 - RCA audio outputs for front rear and subwoofer
- 1 - Blue with White stripe - Amplifier turn on output
- 1 - Bass knob control
- Vehicle fitment:
- 2014 - 2017 CT200H (Without Navigation)
- 2015 - 2017 ES350 (Without Navigation)
- 2014 - 2017 GX460 (Without Navigation)
- 2016 - 2017 IS200T (Without Navigation)
- 2014 - 2015 IS250 (Without Navigation)
- 2016 - 2017 IS300 (Without Navigation)
- 2015 - 2017 NX200T (Without Navigation)
- 2015 - 2017 NX300H (Without Navigation)
- 2016 - 2017 RC200T (Without Navigation)
- 2016 - 2017 RC300 (Without Navigation)
- 2015 - 2017 RC350 (Without Navigation)
- 2016 - 2017 RX350 (Without Navigation)
- 2014 - 2018 4-Runner
- 2013 - 2014 Avalon (Equipped with JBL and 10/6-pin BHA1761 style harness)
- 2015 - 2018 Avalon
- 2012 - 2014 Camry (Equipped with JBL and 10/6-pin BHA1761 style harness)
- 2015 - 2017 Camry
- 2014 - 2018 Highlander
- 2012 - 2015 Prius (Equipped with JBL and 10/6-pin BHA1761 style harness)
- 2016 - 2017 Prius
- 2014 - 2014 RAV-4 (Equipped with JBL and 10/6-pin BHA1761 style harness)
- 2015 - 2018 RAV-4
- 2013 - 2014 Sequoia (Equipped with JBL and 10/6-pin BHA1761 style harness)
- 2015 - 2018 Sequoia
- 2015 - 2017 Sienna
- 2014 - 2017 Tacoma
- 2014 - 2018 Tundra
- 2013 - 2014 Venza (Equipped with JBL and 10/6-pin BHA1761 style harness)
- 2015 - 2016 Venza
- Lexus
- Toyota
| Manufacturer | PAC |
|---|---|
| Part Number | AP4-TY12 |
| Integration Module | Add amplifiers to factory radio |
| Wiring harness function | Replace Factory Radio |
| RCA Pre-amp Audio inputs | 3 Pairs (Front, Rear, Subwoofer) |
| Warranty | 1 Year |
| Vehicle Brand | Lexus, Toyota |
| Vehicle Model | 4-Runner, Avalon, Camry, CT Hybrid, ES350, GX460, Highlander, IS, NX, Prius, Rav-4, RC, RX, Sequoia, Sienna, Tacoma, Tundra, Venza |
| Return period | 30 days |
| Exchange period | 30 days |
