Axxess AX-ADDCAM CAN-BUS Multi-Camera CAN-BUS Controller with Screen Interface

Rating:
76 % of 100
$172.99
In stock
SKU
AX-ADDCAM

Key Features

  • Add (3) additional cameras to a factory back up camera system (Retains factory camera if equipped)
  • Add (4) cameras to a factory radio if vehicle doesn't have a factory back up camera
  • Add (4) cameras to an aftermarket radio when aftermarket radio has a back up camera input
  • Automatically switches to proper camera via triggers

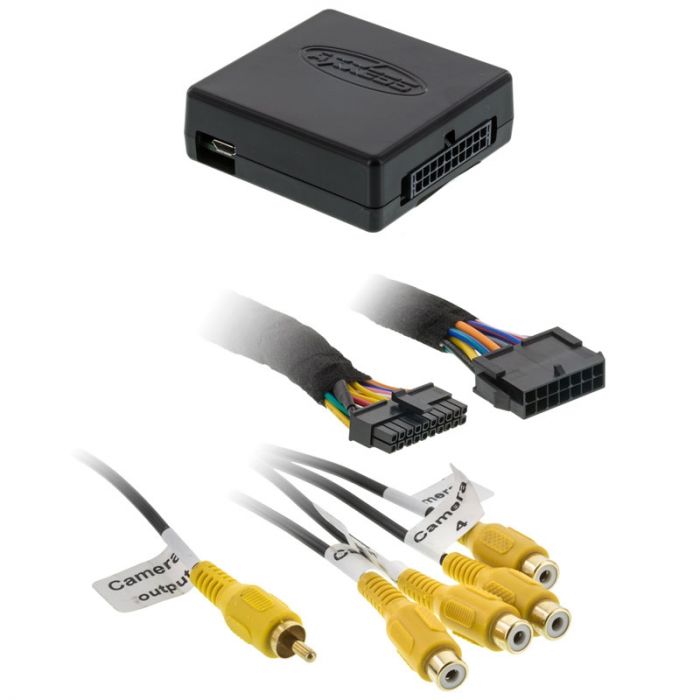

Unit Includes: Interface Control Box, Wiring Harnesses, RCA input harness, and Instruction manual

Axxess AX-ADDCAM CAN-BUS Factory Navigation Screen Interface Converter
    Features:
  • AX-ADDCAM interface is a camera switching interface that will provide up to (3) additional camera inputs to the factory radio, while still retaining the factory camera if equipped
  • AX-ADDCAM can also be used if the factory system does not originally come equipped with a backup camera, adding up to (4) cameras for a full car camera system
  • AX-ADDCAM can be used along with an aftermarket radio. Aftermarket radio must have a input designated for a backup camera allowing you to add multiple cameras
  • High quality RGB converter that converts camera signals to RGB signals that are compatible to factory entertainment systems
  • Automatically switches to the backup camera input when the vehicle is shifted into reverse via CAN-BUS signals
  • Automatically switches to the left or right side camera input when the vehicle indicator is selected via CAN-BUS signals
  • Auto (Reverse to Drive) Video Trigger 4, when installing a front camera. The camera will activate automatically once a reverse-then-drive sequence displaying the front camera and disable once 15 MPH is reached
  • Can also be manually controlled, and used along with an aftermarket radio instead of factory radio
  • Onscreen display shows video input selected while switching
  • Interrupts the factory screen connection
  • Plug-and-play installation allows conversion of radio back to OEM specifications within minutes
  • Programmable 12V 5-amp switched output (configured through the Axxess Updater program)
  • (4) Programmable camera control wires (configured through the Axxess Updater program)
  • Vehicle speed sense input control
  • 4 - RCA video inputs
  • Does not support factory back up camera
  • Can be installed with a plug and play harness or a universal harness
  • 100 percent automotive grade video interface
  • Made in the U.S.A.
  • Instruction Manual - Axxess AX-ADDCAM CAN-BUS Factory Navigation Screen Interface Converter Instruction manual
    Inputs and Outputs
  • 1 - Front Camera input
  • 1 - Rear Camera inputs
  • 2 - Side Camera inputs
  • 4 - Programmable (Analog) Trigger inputs (positive or negative)
  • 1 - Can-Bus input
  • 1 - VSS (Vehicle Speed Sense( input
    Compatible harnesses
  • AX-ADDCAM-CH4
  • AX-ADDCAM-CH5
  • AX-ADDCAM-FD1
  • AX-ADDCAM-MAZ2
More Information
Manufacturer Axxess
Part Number AX-ADDCAM
VGA input No - VGA input
HDMI input No
Audio Video inputs 4 Video Input
Back up camera input Yes
Auto on/off Yes
Connector Type RCA Cable
USB input No
Warranty 1 Year
Return period 30 days
Exchange period 30 days
