Axxess AX-DSP-HON1 AX-DSP Plug-and-Play T-Harness for 2009 - 2014 Acura vehicles - Non-Amplified
Axxess AX-DSP-HON1 AX-DSP Plug-and-Play T-Harness for 2009 - 2014 Acura vehicles - Non-Amplified
Key Features
Fits 2009 - 2014 Acura vehicles with Non-Amplified audio systems T-harness is a simple plug-n-play harness for easy installation of the AX-DSP Provides (4) Channel Speaker leads to utilize factory speaker wires with an aftermarket amplifier Provides Line-level RCA outputs from factory headunit with AX-DSP AX-DSP (Sold separately) provides equalization, time alignment, high and low pass crossovers

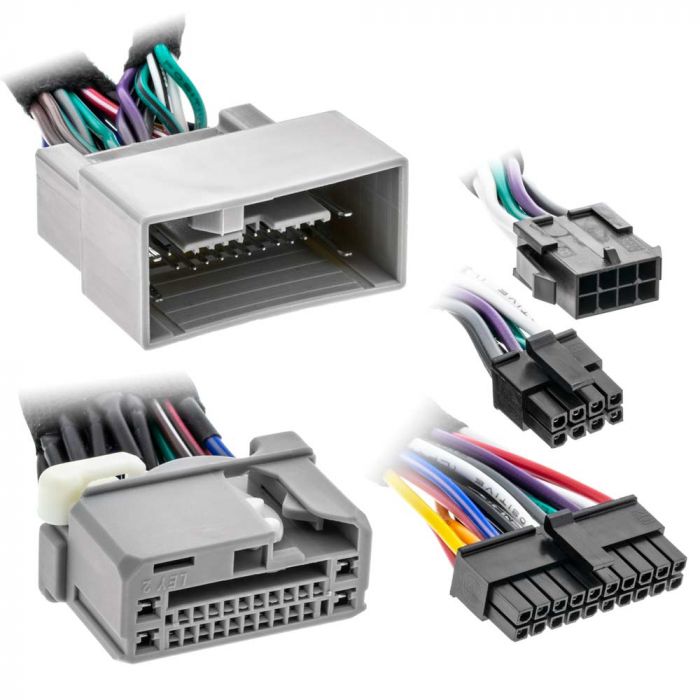

Unit Includes: Plug-and-Play T-Harness
Axxess AX-DSP-HON1 AX-DSP Plug-and-Play T-Harness for 2009 - 2014 Acura vehicles - Non-Amplified
Features:
Fits 2009 - 2014 Acura vehicles
T-harness is a basic and simple plug-n-play harness for easy installation of the AX-DSP
Provides (4) Channel Speaker leads to utilize factory speaker wires with an aftermarket amplifier
Provides Line-level RCA outputs with DSP equalization, time alignment, high and low pass crossovers when used with the AX-DSP
Axxess AX-DSP features (Sold separately)
Digital Signal Processor that allows full control of your stock stereo or aftermarket stereo to produce the best possible sound
31 band EQ with independent control for front / rear / subwoofer for optimal tuning of each speaker
Independent two-way crossover (High or Low Pass) for front / rear / subwoofer for optimal tuning of each speaker
Digital time alignment with delay up to 10ms per speaker location ( FL / FR / RL / RR / Subwoofer)
Android App:Axxess DSP control app for Android
iOS App:Axxess DSP control app for iOS
Instruction manual
Instruction Manual -
Acura
2009 - 2014 TL
2009 - 2014 TSX
2010 - 2013 ZDX
More Information
Manufacturer
Metra
Part Number
AX-DSP-HON1
Integration Module
Add amplifiers to factory radio
Wiring harness function
Bypass OEM Amplifier, Add Amplifier to Factory Radio
Steering Wheel Control
No
RCA Pre-amp Audio inputs
3 Pairs (Front, Rear, Subwoofer)
Speaker level inputs
Yes
Warranty
1 Year
Vehicle Year
2009, 2010, 2011, 2012, 2013, 2014
Vehicle Brand
Acura
UPC Code
086429357710
Return period
30 days
Exchange period
30 days
Wiring Harnesses Explained
What do all of the wire colors mean? Aftermarket manufacturers have made car stereo receiver installation an easier process by using a standardized wire color scheme. We walk you through what each individual wire does, this way if you have an installation that doesn't perform properly you will have the resources to begin troubleshooting your installation.
