Unit includes: HDMI, USB and 3.5mm Auxiliary input jack panel and extension cable
Replace the knockout in GM vehicles that easily allows you to add HDMI, two USB's and 3.5mm Audio connection!
Install the Axxess AX-GMUSBAUX-3 in most vehicles with rectangular cut-out. This panel jack fits most GM vehicles that have the factory Hub. The jack panel is designed to be used when replacing the factory radio and where you cannot retain the factory Hub due to the new radio. But now you can provide easy connections to your replacement car radio and have HDMI, USB inputs, and 3.5mm audio input without ever touching the back of the radio.

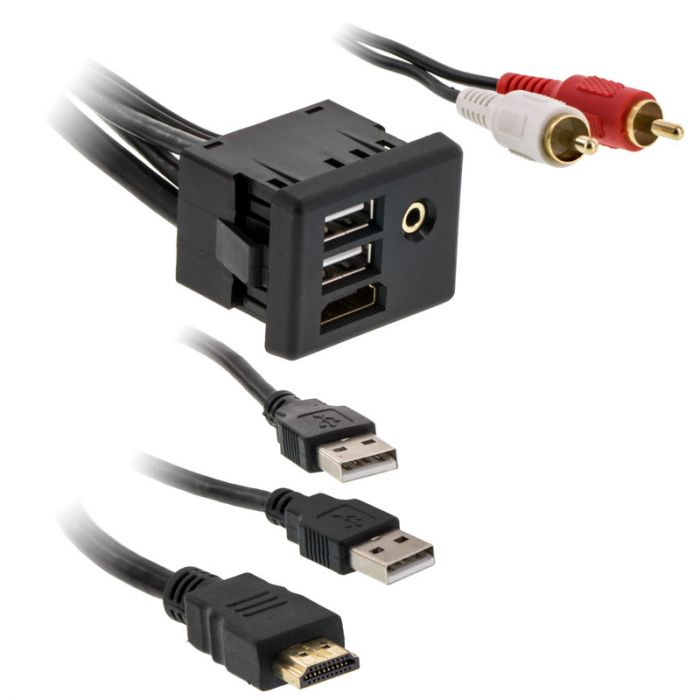

Axxess AX-GMUSBAUX-3 HDMI, USB and 3.5mm Rectangle Panel Jack and Extension Cable
- Replaces exiting GM Hub when replacing the factory radio to retain jacks to the new radio
- HDMI, (2) USB's and 3.5mm Auxiliary mount jack with extension cable
- Can be used with any radio that supports HDMI, USB and 3.5mm inputs
- 3.5 mm jack is a 2 ring type for audio connection
- Enables you to conveniently mount the USB on the dash and make connections to the rear of the radio
- Works with USB 2.0 storage devices
- Up to 12Mbps transfer rate
- Hot pluggable
- Overall: 1-1/4" (L) x 1-7/8" (W) x 1-3/4" (D)
- Cutout: 1-1/16" (L) x 1-5/8" (W)
Vehicle specific fitment:
- 2015 - 2015 ATS
- 2015 - 2015 CTS
- 2014 - 2015 ELR
- 2015 - 2015 XTS
- 2016 - 2016 Camaro
- 2014 - 2015 Corvette
- 2016 - 2016 Cruze
- 2016 - 2016 Malibu
- 2014 - 2016 Silverado
- 2015 - 2016 Suburban
- 2015 - 2016 Tahoe
- 2017 - 2017 Acadia
- 2015 - 2015 Yukon
