DISCONTINUED - POWER ACOUSTIK BAMF1600/4D BAMF Series Class D Amp with audiophile-grade IRTM transistors

DISCONTINUED - POWER ACOUSTIK BAMF1600/4D BAMF Series Class D Amp with audiophile-grade IRTM transistors

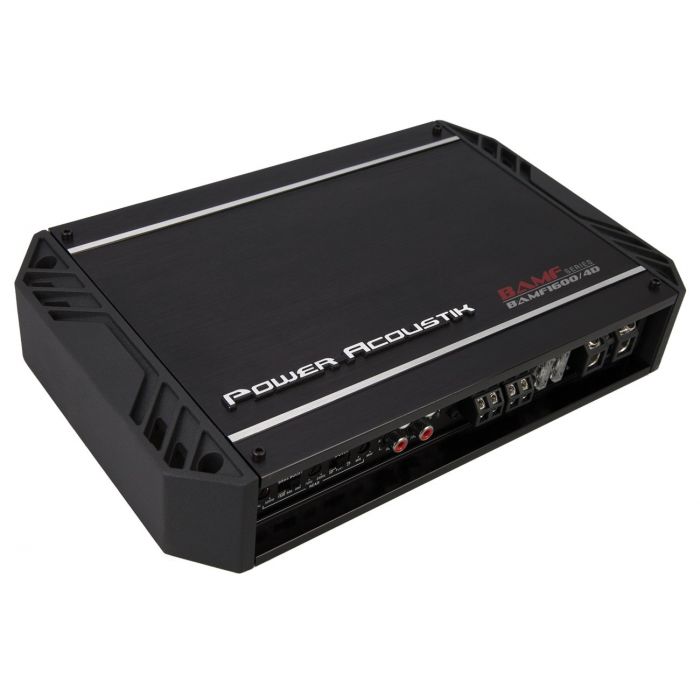

POWER ACOUSTIK BAMF1600/4D BAMF Series Class D Amp

More Views

Power Acoustik
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Power Acoustik BAMF1600/4D Product Highlights

  • 18dB bass boost increases low-octave harmonics
  • Dim: 2"H x 7"W
  • 1,600W max, 4 channel
  • 125W x 4 @ 4Ω, 170W x 4 @ 2Ω, 340W x 2 4Ω bridged
  • Dim: x 11"D
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Overview

Unit includes: POWER ACOUSTIK BAMF1600/4D BAMF Series Class D Amp (1,600W Max, 4 Channel)

POWER ACOUSTIK BAMF1600/4D BAMF Series Class D Amp features:

    Features:
  • This full range amp will give you uninterrupted enjoyment of music
  • High-efficiency Class D full range amp
  • MOSFET power supply with audiophile-grade IRTM transistorsHybrid aluminum alloy heatsink
  • for optimum dissipation2Ω stereo &4Ω bridged full range operation
  • 1Ω stable monoblock operation
  • Military-grade SMT PCB maintains dynamic performance
  • Direct short, thermal & overload circuits protect amp
  • Easy DIY install single-sided terminals & controls
  • Angled wire terminals secure wire connections
  • Interchangeable top panel for unique installation
  • Chassis-integrated aluminum mounting points
  • Variable 12dB high pass, low pass & subsonic crossovers
  • 200mV–7.5V low level RCA inputs
  • 18dB bass boost increases low-octave harmonics

  • Max Power Output:
  • 1,600W max

  • RMS Power Output:
  • 125W x 4 @ 4Ω,
  • 170W x 4 @ 2Ω,
  • 340W x 2 4Ω bridged

  • Dimensions:
  • Dimensions: 7"W x 11"L x 2"H

Technical Specifications

Manufacturer Power Acoustik
Part Number BAMF1600/4D
Amplifier Topology Class Class D
Number of Channels 4 Channel
Total Peak Power Output 1501 - 2000 watts
Total RMS Power Output 1000 - 1500 Watts
Amplifier Bridging Bridgable @ 4 ohms
Minimum Impedance in Bridged Mode 4 ohm
Minimum Impedance in Un-Bridged Mode 2 ohm
Strappable Amplifier No
Strappable Power Output No
RCA Pre-amp Audio inputs N/A
RCA Pre-amp Audio outputs 2 Pairs (Front, Rear)
Preamp voltage 6 volts
Speaker level inputs Yes
Gain Control Yes
Bass Knob / Remote Gain No
Built in Crossover High-pass, Low-pass
Cooling Fan No
Color Black
Warranty 1 Year
Recommended Power Wire Gauge No
UPC Code 709483047310
