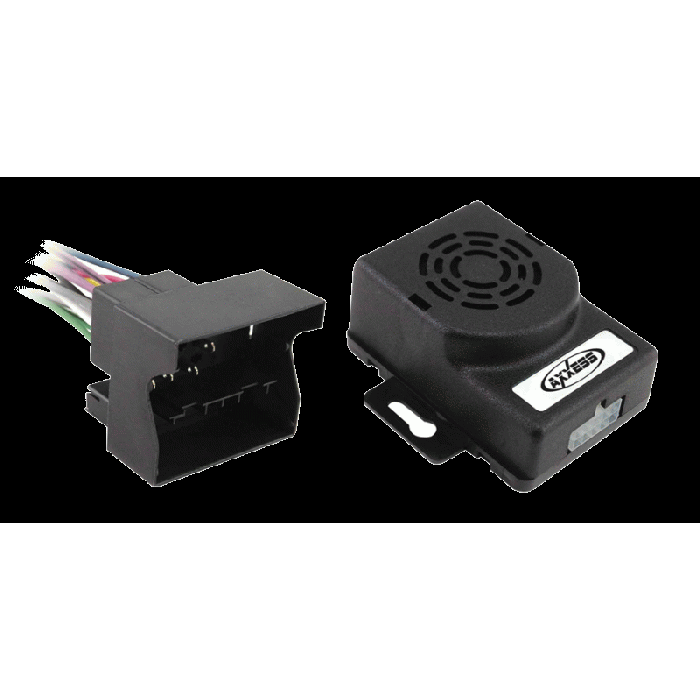

Metra BMRC-01 BMW Data Bus Radio Replacement Interface with Chime Retention and Built In Speaker

$137.99
In stock
SKU
BMRC-01

Key Features

  • Complete car stereo integration harness for Non-Amplified audio systems or when removing factor amplifier
  • Provides RAP (Retained Accessory Power)
  • High level speaker inputs for connections to factory speakers
  • Retains all warning chimes with built in speaker
  • 12 volt 10 amp car accessory
Unit includes: BMRC-01 data interface, 10-pin to 16-pin BMW harness with stripped leads, and Instruction manual

Metra BMRC-01 BMW Data Bus Radio Replacement Interface with Chime Retention and Built In Speaker
    Features
  • Complete car stereo integration harness for Non-Amplified audio systems or when removing factor amplifier
  • Provides RAP (Retained Accessory Power)
  • High level speaker inputs for connections to factory speakers
  • Retains all warning chimes with built in speaker
  • 12 volt 10 amp car accessory
  • Provides NAV outputs (parking brake, reverse, mute, V.S.S.)
  • Retains balance and fader


Connections:
  • Yellow - 12V Constant
  • Red - 12V Accessory
  • Black - Ground
  • Orange with White stripe - Dash Light Dimmer/Illumination
  • Blue with White stripe - Power amplifier turn on (+)
  • Green - Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White - Left Front Speaker (+)
  • White with Black Stripe – Left Front Speaker (-)
  • Purple - Right Rear Speaker (+)
  • Purple with Black Stripe – Right Rear Speaker (-)
  • Gray - Right Front Speaker (+)
  • Gray with Black Stripe – Right Front Speaker (-)
  • Blue with Pink Stripe - VSS (Vehicle speed sensor)
  • Green with Purple Stripe - Reverse wire (+)
  • Light Green - Parking brake wire(-)


Compatible With:

BMW
  • 2008 - and Up 1-Series
  • 2006 - and Up 3-Series


Mini
  • 2008 - and Up Mini Cooper


More Information
Manufacturer Metra
Part Number BMRC-01
Warranty 1 Year
UPC Code 086429215966
Return period 30 days
Exchange period 30 days
