Discontinued - Boss Audio BV9561B Double DIN 7" In dash touchscreen AM/FM Receiver with Bluetooth

Discontinued - Boss Audio BV9561B Double DIN 7" In dash touchscreen AM/FM Receiver with Bluetooth

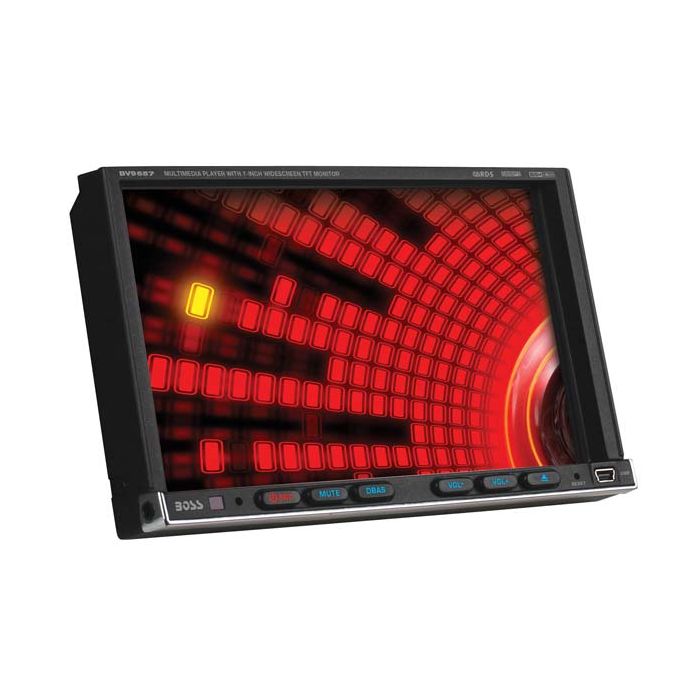

Boss Audio BV9557 Double DIN 7" In dash touchscreen AM/FM Receiver

More Views

Boss Audio
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Boss Audio BV9561B Product Highlights

Discontinued - Boss Audio BV9561B Double DIN 7" In dash touchscreen AM/FM Receiver with Bluetooth
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Overview

Unit includes: Double DIN indash radio, Mounting cage, Wiring harness, Remote control, and Instruction manual

Boss Audio BV9561B Double DIN 7" In dash touchscreen AM/FM Receiver features
  • Chassis Mounting: Double DIN
  • Screen Size: 7" Widescreen Touchscreen
  • Adjustable Monitor
  • Monitor Display Format: Digital TFT Display
  • Motorized
  • Resolution: 800 x 480 Pixels
  • Brightness: 600
  • TV System Compatible: NTSC, PAL
  • On Screen Display Menu
  • PLL Synthesized AM/FM Tuner
  • AM Stations: 12
  • FM Stations: 18
  • 30 Stations Preset
  • Switchable Radio Regions: USA, EUROPE
  • RDS (Radio Data System)
  • Disk Player Mechanism: DVD
  • Disc Player Compatible: WMA, MP3, DVD, SVCD, VCD, CD, CDR, CDRW
  • USB Input: MINI Front & Rear
  • SD/MMC Memory Card Port Input: Behind Panel
  • AUX Input: Side panel
  • Rear View Camera RCA Input
  • Audio RCA Output: 4
  • Subwoofer RCA Output: 1
  • Preset Equalizer Selection Switch
  • Separate Bass and Treble Adjustment Control
  • Balance and Fader Adjustment Control
  • Mute
  • Digital Clock Display
  • Last Position Memory
  • ESP (Anti Skip Mechanism)
  • 1-bit D/a Convertor
  • 8x Oversampling
  • Remote Control
  • Steering Wheel Control Connection
  • Speaker Outputs Channels: 4
  • Total Output Power: 340 Watts
  • Compatible with Audio Output of iPod and other MP3 Players
  • Dimensions (H x L x W): 10" x 10.63" x 7.38"

Technical Specifications

Manufacturer Boss Audio
Part Number BV9561B
Chassis Size Double DIN
Faceplate features No
RCA Pre-amp Audio outputs 3 Pairs (Front, Rear, Sub)
Preamp voltage 2 volts
LCD Screen Size 7 inch - 8 inch
Illumination color No
LCD Screen Brightness 600 Nit
Swivel Screen Yes
Touchscreen Yes
Widescreen Display 16:9 Widescreen Display
Native Screen Resolution 800 x 480
Front camera input N/A
Back up camera input No
Audio Video inputs 2 Video Inputs
Front mounted auxiliary input 3.5 mm audio/video input
Audio Video Outputs 1 Audio/Video output
Built-in DVD Player Yes
Disc Playback DVD
Anti-Shock Yes
Dual Zone Control No
iPod Audio Connection Yes, via USB
iPod Video Connection Yes, via USB
SD Card input Yes, SD Card
USB input Yes
HDMI input No
HDMI output No
Pandora Streaming No
Smartphone Compatible No
Smartphone Technology N/A
NTSC/PAL NTSC only
Audio Formats N/A
Video Formats N/A
MP3 Playback Yes
Built in Bluetooth Built in Bluetooth
NFC (Near Field Communication) N/A
HD Radio No
Radio Data Service - RDS Yes
Satellite Radio No
Navigation No
GPS Maps No
Text to Speech No
Traffic Tuner No
Points of Interest No
Integration Module N/A
Steering Wheel Control Input Yes, requires external module
Wireless Remote Control Yes
TV Tuner No Tuner
VGA input No
Operation Voltage No
Warranty 1 Year
Vehicle Year N/A
Vehicle Brand N/A
Vehicle Model N/A
UPC Code No

Write Your Own Review

You're reviewing: Discontinued - Boss Audio BV9561B Double DIN 7" In dash touchscreen AM/FM Receiver with Bluetooth

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Value
Quality
Durability
Install (5 star for easy)
Price

Ask questions receive answers.

Posted by info@yahoo.com, Saturday, June 12, 2055

Question:

Will this Double Din radio fit my vehicle?

Answers:

  • Posted by Store Owner on Wednesday, June 13, 2018
    A:
    1. The first way to tell if this will fit your vehicle is to check the size. You need a Double DIN opening, with no obstructions in-front of the screen area.
    2. To check the size you can visit www.metraonline.com
    3. Enter your vehicle information in the section labeled Vehicle Fit Guide
    4. If a Double DIN dash kit is available you can use this radio.
    5. Click on Metra Radio Install kits to see what part number you need for your Double Din Dash trim
    6. Click on Metra Antenna adaptors to see what part number you need for your Antenna Adapter
    7. Click on Metra Radio Harness Into Car to see what part number you need for your Wiring Harness. Standard harnesses will only work for basic audio systems. If your vehicle is equipped with an amplified audio system you will need a Radio Replacement Interface, those are available by clicking on Replace Factory Radio
    8. Click on Replace Factory Radio to see what part number you need for your Radio Replacement Interface You may see more than one interface listed depending on vehicle options such as steering wheel control, factory back-up camera and various factory audio systems.
    9. You can also call, email or chat with us and we can select the right installation items for your vehicle.
