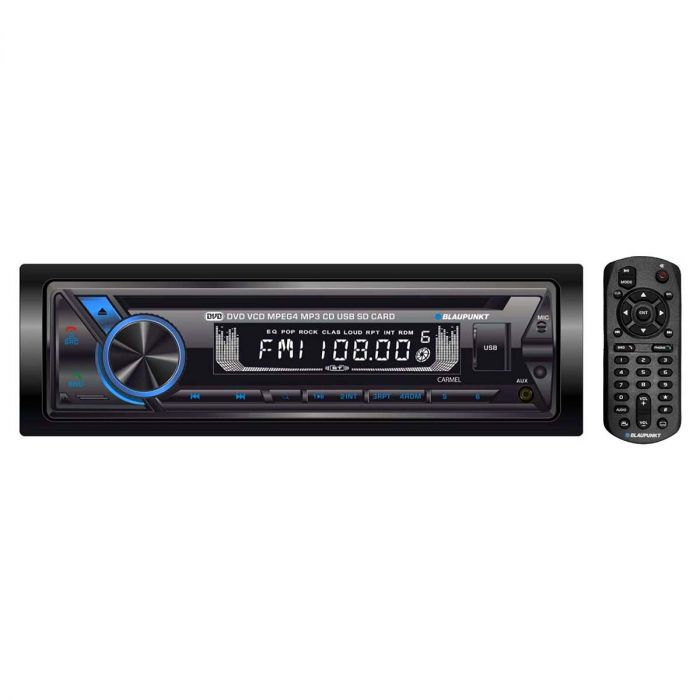

Blaupunkt CARMEL In Dash DVD Player with AM/FM Radio, 30 watts x 4 amplifier and USB Card slot
Expert Knowledge
Talk to a specialist
- Single DIN In-Dash Car Stereo DVD receiver
- AM/FM radio tuner
- Blue button illumination
- 2 video outputs
- USB input slot
- Bluetooth for convenient hands-free phone calls and supports A2DP & AVRCP
Blaupunkt CARMEL In Dash DVD Player with AM/FM Radio, 30 watts x 4 amplifier and USB Card slot
-
Features:
- Single DIN In-Dash Car Stereo DVD receiver
- Large 32 Segment LCD Display with Blue LED Back-light
- Blue button illumination
- AM/FM radio tuner
- Front 3.5mm auxiliary input
- Front full size USB connector
- Speaker Power Output: 4 channels x 30 watts peak and 4 channels x 17 watts RMS
- MP3, MP4, AVI, WAV, DivX, 5.X, JPG, & WMA playback from CD's, USB, and SD card
- Easily accessible with wireless remote control
- Jpeg picture viewer
- Audio features:
- Plays DVD, VCD, CD-RW, CD-R, DVD-R, DVD-RW, MP3, MPEG4, DivX, WMA, and AVI
- Region free DVD player
- Electronic shock protection with built in buffer
- Includes PLL synthesized AM & FM tuner with 18 FM & 12 AM preset stations memory
- Selectable USA and European radio frequencies sets
- Rotary Knob Controls: Volume, Fader, Bass, Treble, Balance, DBass
- CD text information, display artist and song information
- MP3 ID3 tag information, display artist and song information
- Bluetooth features:
- Integral Bluetooth technology facilitates convenient hands-free phone calls and supports A2DP & AVRCP
- A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
- AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
- External microphone with 10 foot cord for optimal placement
- Bluetooth 2.0+ certified
- Compatible with most Bluetooth phone that support Bluetooth 2.0 and above
- Inputs and outputs:
- 1 - Rear Audio Video input
- 1 - Rear Audio Video output
- 1 - Front full size USB connection accepts up to a 32Gb
- 1 - Front 3.5mm Audio video input
- Dimensions:
- Single DIN chassis
- Dimensions: 7"W x 6-1/2"D x 2"H
| Manufacturer | Blaupunkt |
|---|---|
| Part Number | CARMEL |
| Chassis Size | Single DIN |
| Faceplate features | Detachable face plate |
| RCA Pre-amp Audio outputs | None |
| Illumination color | Blue |
| Front camera input | No |
| Back up camera input | No |
| Audio Video inputs | 1 Audio Video Input |
| Front mounted auxiliary input | 3.5 mm audio/video input |
| Audio Video Outputs | 1 Audio/Video output |
| Built-in DVD Player | Yes |
| Disc Playback | DVD |
| Anti-Shock | Yes |
| Dual Zone Control | No |
| SD Card input | No |
| USB input | Front USB |
| HDMI input | No |
| HDMI output | No |
| Smartphone Compatible | No |
| Built in Phone Mirroring | No |
| Amazon Alexa | No |
| Time Alignment | No |
| Modulation | NTSC only |
| Audio Formats | Mpeg-3, WAV, WMA |
| Video Formats | AVI, Divx, H.264, MPEG-2, MPEG-4, Xvid |
| Built in Bluetooth | Built in Bluetooth |
| NFC (Near Field Communication) | No |
| HD Radio | No |
| Radio Data Service - RDS | No |
| Satellite Radio | No |
| Integration Module | None |
| Steering Wheel Control | No |
| Wireless Remote Control | Yes |
| Operation Voltage | 12-15 Volt DC |
| CEA2006 Compliant | No |
| Warranty | 90 days |
| UPC Code | 815592028109 |
| Return period | 30 days |
| Exchange period | 30 days |
