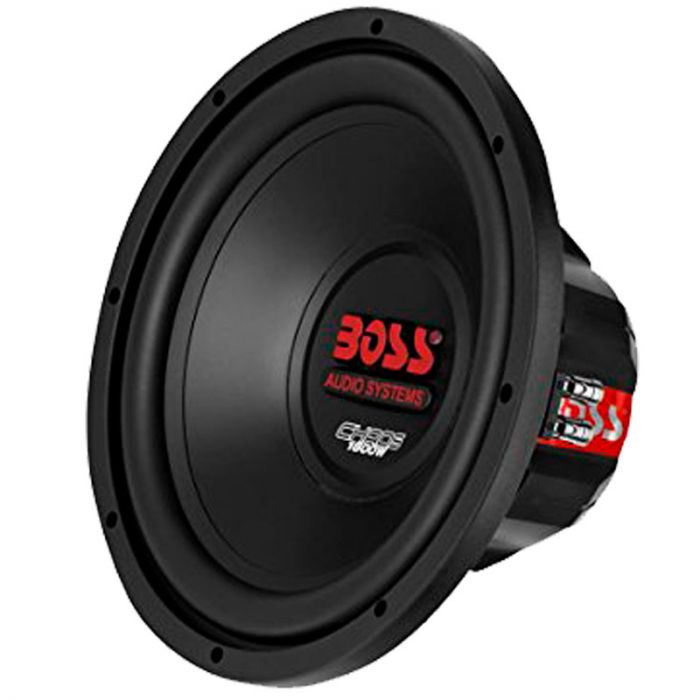

DISCONTINUED - Boss Audio CH10DVC Chaos 1500 Watt 10 inch Subwoofer - Dual 4 Ohm Voice Coil
Expert Knowledge
Talk to a specialist
- 10 inch Chaos Series Sub-woofer
- Peak 1500 Watts Max RMS 750 Watts Power Handling
- Black injection molded polypropylene cone
- Foam surround for better insulation
- Magnet with rubber protective boot cover
- 84 decibel sensitivity
- Frequency Response 25-250 Hz
- Designed for use in sealed and ported enclosures
- Fits in 0.8 CuFt sealed or 1.4 CuFt Ported Enclosure
The Boss Audio CH10DVC sub-woofer with dual voice coil (4 Ohm) is all set to give you an all new experience during your drive on the highway when you can treat yourself to some rocking music. Thanks to the all new Boss Audio CH10DVC, the 10-inch audio dual voice coil sub-woofer. This amazing audio sub-woofer lets you enjoy rocking music while on the go. The 1500 Watts Max 750 Watts RMS power handling is enough to fill your ride with blasting music while zipping down the highway. The sub-woofer is protected against thermal, overload and short circuits, and is fully insulated in high quality rubber, which provides optimum cone-edge suspension for this amazing sub-woofer and absorbs all distortions that are likely to travel up to the edge of the cone.
You can now go on those long drives and listen to your favorite music and rock along, thanks to the poly injection cone edge sub-woofer that has amazing properties that make it long lasting. Measuring just 10 inches across, this stand alone sub-woofer is easy to install this high quality sub-woofer at any point in your ride so that you can enjoy some high quality music on your road trips.
Unit includes: Unit includes: Car subwoofer driver and Instruction manualBoss Audio CH10DVC Chaos 1500 Watt 10 inch Subwoofer - Dual 4 Ohm Voice Coil
- Features
- 10” Chaos Series 1500 Sub-woofer
- Dual 4 ohm Voice coil
- Poly injection color treated cone for optimum performance
- Rubber surround structure for maximum output
- Compatible with either 1.4 CuFt ported or 0.8 CuFt sealed enclosure
- Can work efficiently with sealed and ported enclosures
- Increased power handling with dual voice coil sub-woofer
- Max Power Handling
- 1500 watts peak power handling
- RMS Power Handling
- 750 watts RMS power handling
- Quick Specs
- Resonant Frequency @ 38 Hz
- 84dB of Sensitivity @ 1 watt/meter
- QES: 0.72 & QTS: 0.6
- QMS: 3.39 & VAS: 1.42 CuFt
- X Max one way: 14 mm
- Dimensions
- Cutout Diameter: 9.25” (235 mm)
- Mounting Depth: 4.625” (117 mm)
- External Enclosure Dimensions
- Sealed: 20” L (508 mm) x 9” W (229 mm) x 12” H (305 mm)
- Ported: 22-1/2” L (572 mm) x 15” W (381 mm) x 12” H (305 mm)
- Warranty Duration:
- Basic Warranty: 1 year
| Manufacturer | Boss Audio |
|---|---|
| Part Number | CH10DVC |
| Driver Size | 10 inch |
| Subwoofer Shape | Round |
| Voice coils | Dual voice coil |
| Impedance (per voice coil) | 4 ohm |
| FS | 38 Hz |
| QES | 0.72 |
| QMS | 3.39 |
| QTS | 0.6 |
| VAS | 1.42 ft3 |
| Xmax (millimeters) | 14 |
| Sensitivity | 84 dB |
| Frequency Response | 25 Hz - 250 Hz |
| Power Handling Peak | 1500 Watts |
| Shallow Mount Subwoofer | No |
| Mounting Depth | 4.63 Inches |
| Cutout Dimensions | 9.25 Inches |
| Sealed Enclosure Recommended Size | 0.8 ft3 |
| Ported Enclosure Recommended Size | 1.4 ft3 |
| Color | Black |
| Warranty | 1 Year |
| UPC Code | 791489122962 |
| Return period | 30 days |
| Exchange period | 30 days |
