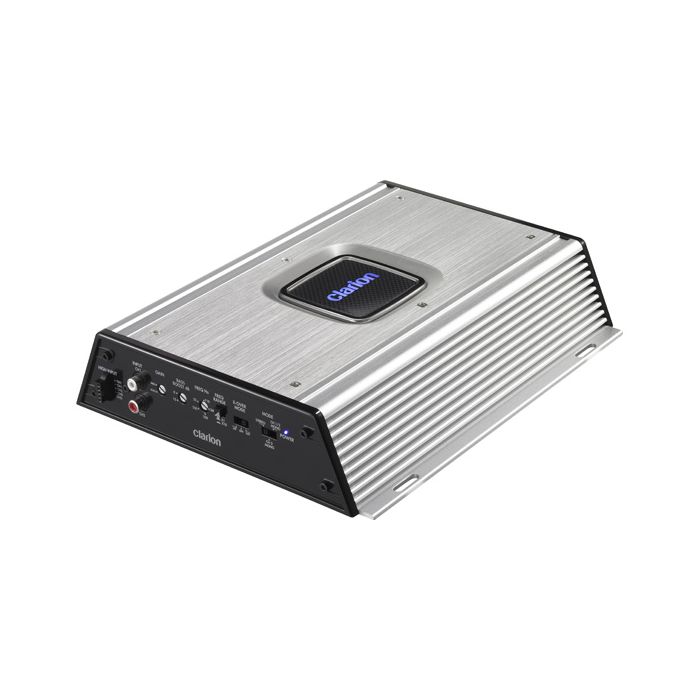

DISCONTINUED - Clarion APX290M 2 Channel Marine amplifier

DISCONTINUED - Clarion APX290M 2 Channel Marine amplifier

DISCONTINUED - Clarion APX290M 2 Channel Marine amplifier

More Views

Clarion
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Clarion APX290M Product Highlights

Clarion APX290M 2 Channel Marine amplifier
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Overview

Marine 360W 2/1 Channel Power Amplifier
  • 360 Watts of Maximum Music Power
  • 90W x 2 into 4 Ohms, 20Hz - 50kHz @ <.1%THD
  • 180W x 2 into 2 Ohms, 20Hz - 50kHz @ <.1% THD
  • Variable Bass Extender, 0 - 15dB @ 45Hz
  • Adjustable -12db/Oct. High/Low Pass Crossover, 55 - 550Hz, 550 - 5.5kHz
  • Mixed Mode Operation
  • Conformal Coated Double Sided PCB
  • Non-Corrosive Aluminum Heat Sink
  • Dimensions 10-1/2" x 9-1/8" x 2-1/4"
    • CEA 2006 Power Ratings

    • 160W x 2 RMS [2 @14.4V 1% THD+N]
    • 100W x 2 RMS [4 @14.4V 1% THD+N]
    • S/N 95dB (Ref: 1W into 4)

Technical Specifications

Manufacturer Clarion
Part Number APX290M
Amplifier Topology Class Class AB
Number of Channels 2 Channel
Total Peak Power Output Up to 500 watts
Total RMS Power Output Up to 250 Watts
Total RMS Power at 1 ohm N/A
Total RMS Power at 2 ohm N/A
Total RMS Power at 4 ohm N/A
Total Peak Power Output N/A
Amplifier Bridging No
Minimum Impedance in Bridged Mode No
Minimum Impedance in Un-Bridged Mode No
Strappable Amplifier N/A
Strappable Power Output N/A
RCA Pre-amp Audio inputs N/A
RCA Pre-amp Audio outputs No
Preamp voltage No
Speaker level inputs No
Gain Control No
Bass Knob / Remote Gain No
Built in Crossover High-pass, Low-pass
Cooling Fan No
Color No
Warranty 1 Year
Recommended Power Wire Gauge N/A
UPC Code No
