Quality Mobile Video CVFQ-E123 Universal 7 Inch Touchscreen LCD Monitor with VGA, HDMI, AV Inputs and Pedestal Stand

Quality Mobile Video CVFQ-E123 Universal 7 Inch Touchscreen LCD Monitor with VGA, HDMI, AV Inputs and Pedestal Stand

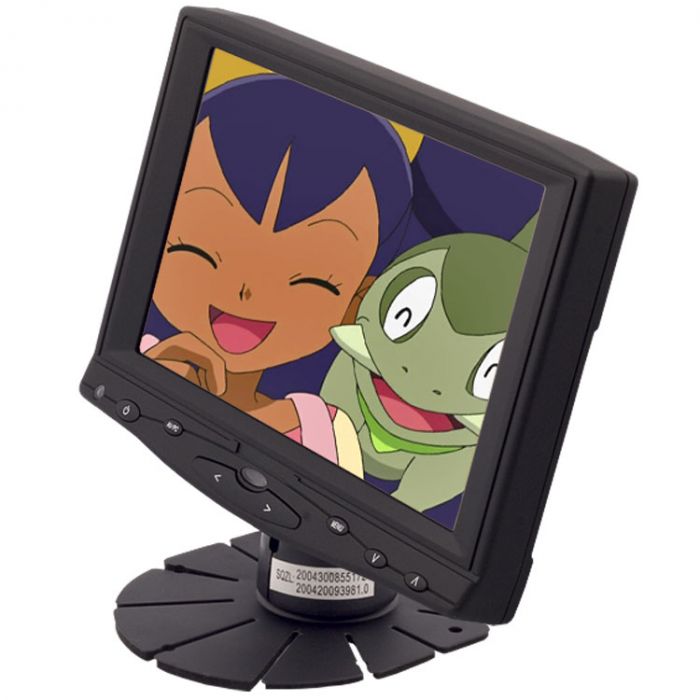

Quality Mobile Video CVFQ-E123 7 inch HDMI monitor - Main

More Views

Quality Mobile Video
Ships Free!

Overall Rating 3.5 (Based on 2 reviews)

Quality Mobile Video CVFQ-E123 Product Highlights

  • 7 inch touchscreen monitor
  • HDMI input
  • VGA input with USB touchscreen control
  • Dual Video Inputs
  • Cigarette Lighter Included
  • Fan Mount Included
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Frequently Bought Together


Unit includes: Remote Control, Stylus and Connectors

Quality Mobile Video CVFQ-E123 Universal 7 Inch Touchscreen LCD Monitor with VGA, HDMI, AV Inputs and Pedestal Stand
  • 7 inch touchscreen monitor
  • HDMI input
  • 2 AV video inputs
  • Comes with all cables & mounting hardware
  • AV input can work with rear view cameras and over devices in your CAR!
  • User friendly
  • Low Energy Consumption
  • Can also be used as a tablet PC
  • 4, 9 and 25 point touchscreen calibration
  • Detachable & Adhesive stand, can be placed on your car's dashboard

  • Touchscreen Monitor Internal Menu Specs
  • Color: Brightness, Contrast, Color Temperature
  • Adjust: Auto Config, H Position, V Position, Phase, Clock
  • OSD: H position, V Position, OSD Time Out, Transparent
  • OSD: Languages: English, Chinese, French, Italian, German, Spanish, Japanese, Russian
  • Settings: Reset, Display Ratio, LR, UD
  • Sound: Volume Control

  • Specifications
  • Main Function: 7 Inch Touchscreen Car Monitor (HD, AV, VGA)
  • Screen: 7 Inch TFT LCD Touchscreen (1440000 Pixels)
  • Native Screen Resolution: 800 x 480 (VGA) /
  • Via Interpolation: 1720 x 1440 (VGA)
  • Brightness: 300cd/m2 (without touchscreen)
  • Contrast: 500:1
  • Viewing Angle: 70 degrees /70 degrees , 50 degrees /60 degrees (L/R, U/D)
  • Video Signal Input: 0.7 - 1.4Vp-p/75O
  • VGA Signal Input: H:30 - 60KHz, V:60-75Hz
  • Speaker: 250mW/7O
  • Color System: PAL-4.43, NTSC-3.57
  • Power Source: DC9-15V
  • Signal Input: PC, VGA, AV1, AV2, HDMI 1.2
  • Display Ratio: 16:9, 4:3
  • Power Requirements: +5VDC ( Maximum 100mA, typical 70mA, 50mV peak to peak maximum ripple)
  • Operating temperature: 0 to 50 Degrees Celsius
  • USB Model: USB 1.1
  • Resolution: 2048 X 2048
  • Response time Resistive: Max. 35 ms
  • Input: VGA
  • Input: AV1 with mono sound
  • Input: AV2 no sound (for rear view camera)
  • Input: HDMI
  • Remote Controller: Yes
  • Supported Operating Systems for Touchscreen Software: Windows 97SE, XP, Vista, Windows 7, Linux, MAC
  • Certification: CE, FCC, RoHS
  • Dimensions: W:209 x L:145 x D:35 (mm)
  • Bracket: W:95 x L:140 x D:32 (mm)

  • Features
  • 25 point calibration
  • Advanced Feature: Support monitor / display rotation
  • Advanced Feature: Support multiple monitor / display
  • Advanced Feature: Support QVGA and Half-VGA function
  • Advanced Feature: Support edge compensation
  • Advanced Feature: Support constant touch
  • Controller Setting: Support multiple controllers
  • Controller Setting: Dynamical add / remove controllers
  • Controller Setting: Change Controller interface without reboot
  • Mouse: Emulator 1 - Right / Left button emulation
  • Mouse: Normal / Click on touch / Click on release mode
  • Mouse: Auto right button
  • Sound Notification: Sound option (No Sound / Touch Down / Lift Up)
  • Sound Notification: Frequency adjustment
  • Sound Notification: Duration adjustment
  • Double Click: Configurable double click speed and Configurable double click area
  • OS support 1: Windows 95 / 98 / ME / NT4 / 2000 / XP / Windows 7
  • OS support 1: Windows XP Tablet PC Edition: Windows CE 2.12 / 3.0 / .NET
  • OS support 1: Linux ( RedHat / Fedora / Mandrake /Suse / YellowDog )
  • OS support 1: iMac. OS9.X / OSX
  • OS support 1: MS-DOS
  • Support display resolution: 320x200, 640x200, 640x350, 640x480, 800x600, 1024x768 and 1280x1024

  • Package Contents for Model CVFQ-E123
  • 7 inch Touchscreen Monitor
  • User Manual - English
  • Remote Control
  • Car Cigar Lighter Power Adapter
  • SKS Cable (USB Cable, AV 9PIN VGA)
  • Driver CD
  • Stylus / Touch Pen
  • Stand
  • Stand Sticky Pad
  • Mounting Frame
  • Power Adapter (100-240v)

Technical Specifications

Manufacturer Quality Mobile Video
Part Number CVFQ-E123
LCD Screen Size 7 inch - 8 inch
Native Screen Resolution 800 x 480
Widescreen Display 16:9 Widescreen Display
LCD back light type CCFL
LCD Screen Brightness 300 Nit
Swivel Screen No
Touchscreen Yes
Modulation NTSC and PAL
Built-in DVD Player No
Dual DVD capable No
Last Position Memory No
Anti-Shock No
Headphone Transmitter Single channel
Headphone Jack Yes
Built in FM Modulator No
Built in Speakers Yes
HDMI input Yes
VGA input Yes - VGA input
Audio Video inputs 1 Audio Video Input
Audio Video Outputs No
Composite video input Yes
Front mounted auxiliary input No
USB input No
SD Card input No
Phone Mirroring N/A
Housing material Plastic
Slide track on back Yes
Mounting thread for stand mount Yes
Mount included Yes, Pedistal stand
Trigger wire No
Image Flip Function No
Quad Screen No
Cigarette Lighter Cord Included Yes
Operation Voltage 12 - 15 Volt DC
Ac Adapter included Yes
Headrest Shroud included Yes
Headrest Type No
Zipper security cover No
Built in Game System No
Wireless Remote Control Yes
Monitor Color Black
Color Black
Overall Height 0 Inches
Overall Length 0 Inches
Overall Width 0 Inches
Warranty 1 Year
UPC Code No

Customer Reviews

Poor customer service
Review by
Install (5 star for easy)
Unit served it's purpose as a mini-monitor for a PC. The box comes complete with all cables you need to attach to a PC and get going.
The touch screen feature is nice and eliminates the need for a mouse (stylus included in pkg).
The unit is somewhat cheaply built: The touchscreen overlay is misaligned with the unit case, and there was a loose part rattling around inside the case.
The cabling is also somwhat confusing.
(Posted on 6/14/2012)
Great quality
Review by
Install (5 star for easy)
I set this up with an automotive CCTV video server running Ubuntu. Picture quality was excellent, however, I could not get the touchscreen to operate with this OS. Will try Windows 7 in the next couple of weeks to see how that performs. All in all, I really like this monitor. [...]. This was my second purchase from Quality Mobile Video and I will have no hesitation buying from this company again. (Posted on 4/7/2011)
