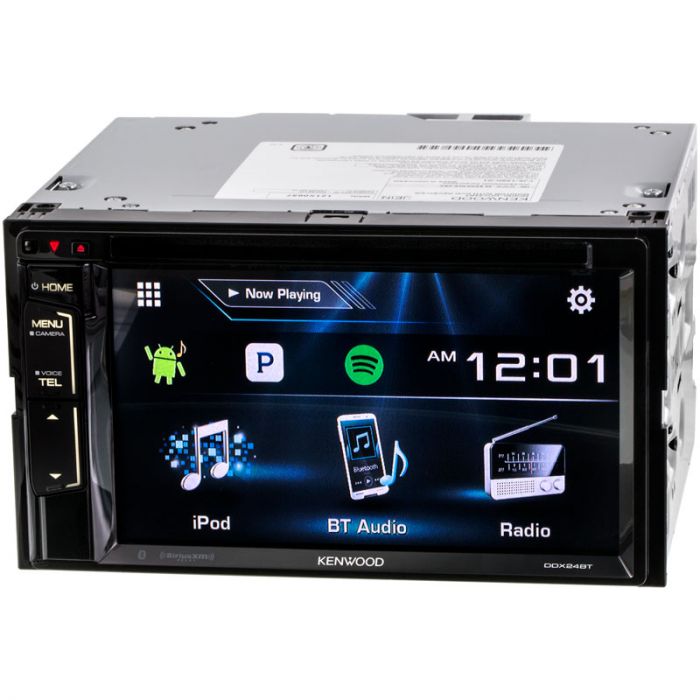

Kenwood DDX24BT Double DIN 6.2" In-Dash DVD/CD/AM/FM Receiver with Bluetooth

Description

What's in the box: Double DIN radio, Wiring harness, Parking brake extension, Mounting hardware, Back strap, USB cable, External microphone, Double DIN mounting cage, Radio removal keys, Double DIN trim, and Instruction manual

Kenwood DDX24BT Double DIN 6.2" In-Dash DVD/CD/AM/FM Receiver with Bluetooth

Features:

6.2 inch wide Double DIN In-Dash TFT and LCD Touch screen monitor
Resistive Touch screen control
LCD screen Resolution: 800 x 480 Pixels
Variable button illumination for perfect matching of your factory button color
Customizable background and menus (JPEG / PNG / BMP file support)
Multi-language menu (18 Languages (English, Spanish, French and others)
Power Output:
- 4 channels x 50 watts peak
- 4 channels x 22 watts RMS
Optional remote control KNA-RCDV331
Displays CD text and MP3 ID3 Tag including title, artist & album
Security key feature to prevent use after theft
iPod and Iphone interface control with Apple USB cable
Built in adjustable parking grid lines with color coded guide
Android Rapid Charge
Compatible Kenwood Music Play Android App
iPod interface control (30 Pin connector) with optional KCA-iP102 cable
iPod interface control (Lightning connector) with optional KCA-iP103 cable

Media playback features:

Plays DVD, VCD, CD-RW, CD-R, DVD-R, DVD-RW, MP3, MPEG4 WMA, DivX, and AVI
Region 1 DVD player
Electronic shock protection with built in buffer
MP3/WMA/iTunes/AAC Audio Playback on CD/DVD/USB Card
MP3 ID3 tag information, display artist and song information
JPEG / PNG / BMP image playback on USB or DVD
H.264/WMV Video Playback on CD/DVD/USB/SD Card
Linear PCM decoder for excellent digital audio quality
MPEG-1, MPEG-2, MPEG-4 Decoder for playback of nearly any digital file
Pandora Radio App Compatible
iHeart Radio App Compatible
Spotify Radio App Compatible

Audio features:

96 kHz/24-bit D/A Converter for high quality digital to analog conversion
13-band parametric equalizer:
- 8 preset and custom options (Drive EQ / Natural / Rock / Pops / Easy / Powerful / Top 40 / Jazz)
- EQ Frequency centers: 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
- Gain: -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9 [dB]
- Q factor: 1.35/1.5/2.0
High-Pass filter with variable slopes and crossover frequencies:
- Frequency centers: Through/30/40/50/60/70/80/90/100/120/150/180/220/250
- Slope: -6/-12/-18/-24 [dB/Oct.]
- Gain: -8/-7/-6/-5/-4/-3/-2/-1/0 [dB]
- Frequency centers: Through/30/40/50/60/70/80/90/100/120/150/180/220/250
- Slope: -6/-12/-18/-24 [dB/Oct.]
- Gain: -8/-7/-6/-5/-4/-3/-2/-1/0 [dB]
- Frequency centers: 30/40/50/60/70/80/90/100/120/150/180/220/250/Through
- Slope: -6/-12/-18/-24 [dB/Oct.]
- Gain: -8/-7/-6/-5/-4/-3/-2/-1/0 [dB]
- Phase control: Normal/Reverse
Variable subwoofer level control (-50dB to +10dB)
Speaker size setup for perfect crossover mapping from subwoofer to door speakers (Standard, Narrow, Middle or Wide speaker type)
Loudness function (Boost bass and upper frequencies)
Drive EQ boosts specific frequencies in the audio signal to compensate the negative impact of road noise

Tuner features:

AM & FM tuner with 24 preset stations memory
RDS (Radio data service) Tuner
SiriusXM radio ready with SXV300 Sirius XM tuner

Bluetooth features:

Integral Bluetooth technology with facilitates convenient hands-free phone calls and audio streaming
A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
SPP: Serial Port Profile provides a wireless replacement for RS-232 based serial communications
HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list
SSP: Secure Simple Pairing
SDP: Service Discovery Profile
GAP: Generic Access Profile
External microphone with 10 foot cord for optimal placement
Bluetooth 3.0+ EDR certified
Compatible with most Bluetooth phone that support Bluetooth 2.0 and above
Full text message support during calls
Siri Eyes Free voice support

Inputs and outputs:

3 - 2V preamp outputs (Front, Rear and Subwoofer)
1 - Rear Camera input
1 - Rear Video output to connect to an external monitors
1 - 3.5mm rear audio video input for connection to external source
1 - 3.5mm iPod audio video input
1 - SiriusXM radio tuner input
1 - Rear USB connection
1 - Rear microphone input

Dimensions:

Double DIN chassis
Dimensions: 7"W x 6-5/16"D x 3-15/16"H

Specifications

More Information
Manufacturer	Kenwood
Part Number	DDX24BT
Chassis Size	Double DIN
Faceplate features	None
RCA Pre-amp Audio outputs	3 Pairs (Front, Rear, Sub)
Preamp voltage	2 volts
LCD Screen Size	5 inch - 6 inch
Illumination color	Full Color
LCD Screen Brightness	400 Nit
Swivel Screen	No
Touchscreen	Yes
Widescreen Display	16:9 Widescreen Display
Native Screen Resolution	800 x 480
Front camera input	No
Back up camera input	Yes
Audio Video inputs	1 Audio Video Input
Front mounted auxiliary input	None
Audio Video Outputs	1 Audio/Video output
Built-in DVD Player	Yes
Disc Playback	DVD
Anti-Shock	Yes
Dual Zone Control	No
SD Card input	No
USB input	Yes
HDMI input	No
HDMI output	No
Smartphone Compatible	Yes
Audio Formats	AAC, Mpeg-3, WAV, WMA
Video Formats	JPEG, MPEG-1, MPEG-2
Built in Bluetooth	Built in Bluetooth
NFC (Near Field Communication)	No
HD Radio	No
Radio Data Service - RDS	Yes
Satellite Radio	Sirius XM Ready
Navigation	No
Integration Module	None
Steering Wheel Control	No
Wireless Remote Control	Optional
Operation Voltage	12-15 Volt DC
CEA2006 Compliant	No
Warranty	1 Year
Return period	30 days
Exchange period	30 days
