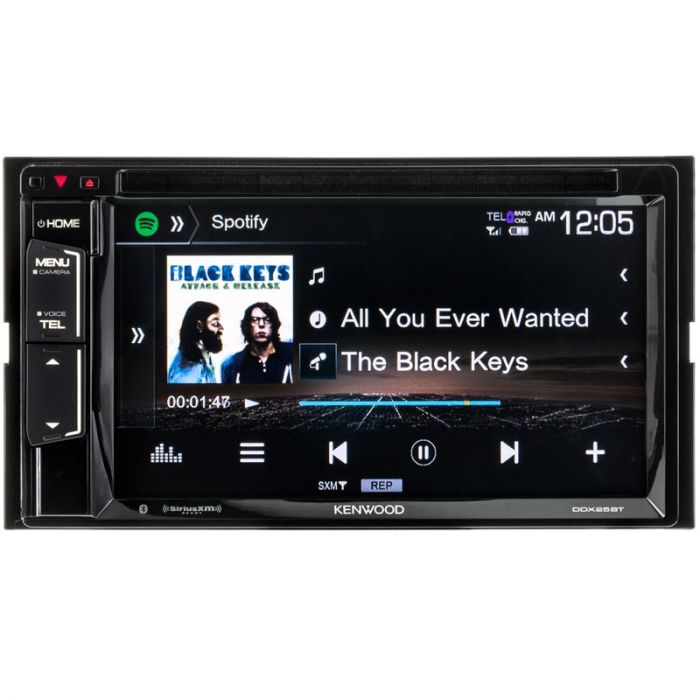

Kenwood DDX25BT Double DIN 6.2" In-Dash DVD/CD/AM/FM Receiver with Bluetooth

Kenwood DDX25BT Double DIN 6.2" In-Dash DVD/CD/AM/FM Receiver with Bluetooth

Kenwood DDX25BT Double DIN 6.2" In-Dash DVD/CD/AM/FM Receiver - Main



More Views

Kenwood
Ships Free!

Overall Rating 4.6 (Based on 1 reviews)

Kenwood DDX25BT Product Highlights

  • 6.2 inch wide Double DIN In-Dash TFT and LCD Touch screen monitor
  • Built in DVD Player
  • Back up camera input
  • Full DSP with time alignment, 13 band EQ, Drive EQ, and Crossovers
  • Built in Bluetooth
  • SiriusXM radio ready
  • Pandora / iHeart / Spotify Radio App Compatible
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Overview

What's in the box: Double DIN radio, Wiring harness, Parking brake extension, Mounting hardware, Back strap, USB cable, External microphone, Double DIN mounting cage, Radio removal keys, Double DIN trim, and Instruction manual

Kenwood DDX25BT Double DIN 6.2" In-Dash DVD/CD/AM/FM Receiver with Bluetooth

Features:
  • 6.2 inch wide Double DIN In-Dash TFT and LCD Touch screen monitor
  • Resistive Touch screen control
  • LCD screen Resolution: 800 x 480 Pixels
  • Variable button illumination for perfect matching of your factory button color
  • Customizable background and menus (JPEG / PNG / BMP file support)
  • Multi-language menu (18 Languages (English, Spanish, French and others)
  • Power Output:
    • 4 channels x 50 watts peak
    • 4 channels x 22 watts RMS
  • Optional remote control KNA-RCDV331
  • Displays CD text and MP3 ID3 Tag including title, artist & album
  • Security key feature to prevent use after theft
  • iPod and Iphone interface control with Apple USB cable
  • Built in adjustable parking grid lines with color coded guide
  • Android Rapid Charge
  • Compatible Kenwood Music Play Android App
  • iPod interface control (30 Pin connector) with optional KCA-iP102 cable
  • iPod interface control (Lightning connector) with optional KCA-iP103 cable


Media playback features:
  • Plays DVD, VCD, CD-RW, CD-R, DVD-R, DVD-RW, MP3, MPEG4 WMA, DivX, and AVI
  • Region 1 DVD player
  • Electronic shock protection with built in buffer
  • MP3/WMA/iTunes/AAC Audio Playback on CD/DVD/USB Card
  • MP3 ID3 tag information, display artist and song information
  • JPEG / PNG / BMP image playback on USB or DVD
  • H.264/WMV Video Playback on CD/DVD/USB/SD Card
  • Linear PCM decoder for excellent digital audio quality
  • MPEG-1, MPEG-2, MPEG-4 Decoder for playback of nearly any digital file
  • Pandora Radio App Compatible
  • iHeart Radio App Compatible
  • Spotify Radio App Compatible


Audio features:
  • 96 kHz/24-bit D/A Converter for high quality digital to analog conversion
  • 13-band parametric equalizer:
    • 8 preset and custom options (Drive EQ / Natural / Rock / Pops / Easy / Powerful / Top 40 / Jazz)
    • EQ Frequency centers: 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
    • Gain: -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9 [dB]
    • Q factor: 1.35/1.5/2.0
  • High-Pass filter with variable slopes and crossover frequencies:
      Front high pass:
    • Frequency centers: Through/30/40/50/60/70/80/90/100/120/150/180/220/250
    • Slope: -6/-12/-18/-24 [dB/Oct.]
    • Gain: -8/-7/-6/-5/-4/-3/-2/-1/0 [dB]
      Rear high pass:
    • Frequency centers: Through/30/40/50/60/70/80/90/100/120/150/180/220/250
    • Slope: -6/-12/-18/-24 [dB/Oct.]
    • Gain: -8/-7/-6/-5/-4/-3/-2/-1/0 [dB]
      Subwoofer low pass:
    • Frequency centers: 30/40/50/60/70/80/90/100/120/150/180/220/250/Through
    • Slope: -6/-12/-18/-24 [dB/Oct.]
    • Gain: -8/-7/-6/-5/-4/-3/-2/-1/0 [dB]
    • Phase control: Normal/Reverse
  • Variable subwoofer level control (-50dB to +10dB)
  • Speaker size setup for perfect crossover mapping from subwoofer to door speakers (Standard, Narrow, Middle or Wide speaker type)
  • Loudness function (Boost bass and upper frequencies)
  • Drive EQ boosts specific frequencies in the audio signal to compensate the negative impact of road noise


Tuner features:
  • AM & FM tuner with 24 preset stations memory
  • RDS (Radio data service) Tuner
  • SiriusXM radio ready with SXV300 Sirius XM tuner


Bluetooth features:
  • Integral Bluetooth technology with facilitates convenient hands-free phone calls and audio streaming
  • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
  • AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
  • SPP: Serial Port Profile provides a wireless replacement for RS-232 based serial communications
  • HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
  • PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list
  • SSP: Secure Simple Pairing
  • SDP: Service Discovery Profile
  • GAP: Generic Access Profile
  • External microphone with 10 foot cord for optimal placement
  • Bluetooth 3.0+ EDR certified
  • Compatible with most Bluetooth phone that support Bluetooth 2.0 and above
  • Full text message support during calls
  • Siri Eyes Free voice support


Inputs and outputs:
  • 3 - 2V preamp outputs (Front, Rear and Subwoofer)
  • 1 - Rear Camera input
  • 1 - Rear Video output to connect to an external monitors
  • 1 - SiriusXM radio tuner input
  • 1 - Rear steering wheel control input
  • 1 - Rear USB connection
  • 1 - Rear microphone input
  • 1 - Radio Antenna


Dimensions:
  • Double DIN chassis
  • Dimensions: 7"W x 6-5/16"D x 3-15/16"H

Technical Specifications

Manufacturer Kenwood
Part Number DDX25BT
Chassis Size Double DIN
Faceplate features None
RCA Pre-amp Audio outputs 3 Pairs (Front, Rear, Sub)
Preamp voltage 2 volts
LCD Screen Size No
Illumination color White
LCD Screen Brightness No
Swivel Screen No
Touchscreen Yes
Widescreen Display No
Native Screen Resolution 800 x 480
Front camera input No
Back up camera input Yes
Audio Video inputs No
Front mounted auxiliary input No
Audio Video Outputs 1 Video output
Built-in DVD Player Yes
Disc Playback DVD
Anti-Shock No
Dual Zone Control No
iPod Audio Connection Yes, Built in
iPod Video Connection Yes, Built in
SD Card input No
USB input Yes
HDMI input No
HDMI output No
Pandora Streaming Yes
Smartphone Compatible Yes
Smartphone Technology No
Modulation No
Audio Formats AAC, FLAC, Mpeg-3, WAV, WMA
Video Formats JPEG, MPEG-1, MPEG-2
MP3 Playback Yes
Built in Bluetooth No
NFC (Near Field Communication) No
HD Radio No
Radio Data Service - RDS Yes
Satellite Radio Sirius XM Ready
Navigation No
GPS Maps No
Text to Speech No
Traffic Tuner No
Points of Interest No
Integration Module No
Steering Wheel Control Input Yes, requires external module
Wireless Remote Control Yes
TV Tuner No
VGA input No
Operation Voltage No
Warranty 1 Year
Vehicle Year No
Vehicle Brand No
Vehicle Model No
UPC Code 19048219848

Customer Reviews

Great product
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
Order was on time and a great product. (Posted on 6/2/2018)

Write Your Own Review

You're reviewing: Kenwood DDX25BT Double DIN 6.2" In-Dash DVD/CD/AM/FM Receiver with Bluetooth

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Value
Quality
Durability
Install (5 star for easy)
Price

Ask questions receive answers.

Posted by info@yahoo.com, Saturday, June 12, 2055

Question:

Will this Double Din radio fit my vehicle?

Answers:

  • Posted by Store Owner on Wednesday, June 13, 2018
    A:
    1. The first way to tell if this will fit your vehicle is to check the size. You need a Double DIN opening, with no obstructions in-front of the screen area.
    2. To check the size you can visit www.metraonline.com
    3. Enter your vehicle information in the section labeled Vehicle Fit Guide
    4. If a Double DIN dash kit is available you can use this radio.
    5. Click on Metra Radio Install kits to see what part number you need for your Double Din Dash trim
    6. Click on Metra Antenna adaptors to see what part number you need for your Antenna Adapter
    7. Click on Metra Radio Harness Into Car to see what part number you need for your Wiring Harness. Standard harnesses will only work for basic audio systems. If your vehicle is equipped with an amplified audio system you will need a Radio Replacement Interface, those are available by clicking on Replace Factory Radio
    8. Click on Replace Factory Radio to see what part number you need for your Radio Replacement Interface You may see more than one interface listed depending on vehicle options such as steering wheel control, factory back-up camera and various factory audio systems.
    9. You can also call, email or chat with us and we can select the right installation items for your vehicle.
Posted by jeremy Ross, Wednesday, May 30, 2018

Question:

Does this radio work for a 2013 altima coupe 2.5 S with manual climate controls?

Answers:

  • Posted by Salvador Diaz on Thursday, June 14, 2018
    A: Yes, this will work no problem.
Posted by Rickie Charles, Sunday, December 10, 2017

Question:

How do I get music videos that I download and converted from YouTube to play on my pioneer receiver? What is the best file that I should use to play this file from my USB (Thumb drive)?

Answers:

  • Posted by Store Owner on Tuesday, December 12, 2017
    A:

    You will need to check to see what files are compatible with your receiver. With that you can use a video conversion program to convert the video files to the supported resolution and encoding.

    Most newer receivers support MP4, older receivers support MP2. Keep in mind, that you will need to verify the max resolution the receiver supports, some accept full HD some accept only 480p.

    Below is a sample instruction manual that demonstrates compatible video files

    Sample accepted video files and resolutions for USB thumbdrives
