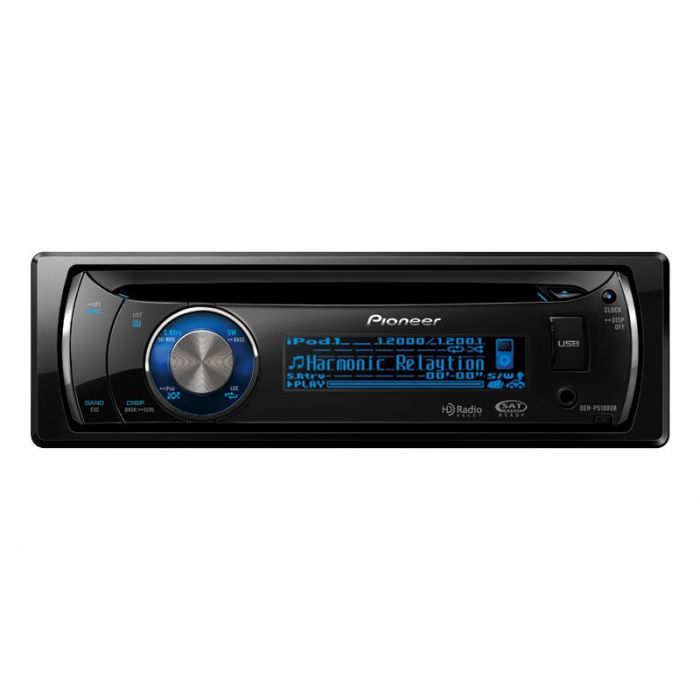

DISCONTINUED - Pioneer DEH-P5100UB In-Dash CD / MP3 / WMA / iTunes AAC / WAV Receiver
Unit includes: In dash receiver, Mounting cage, Remote control, Wiring harness, and Instruction manual
Pioneer DEH-P5100UB CD Receiver General Features:
- CD, MP3, WMA Receiver with Remote Control and Dual USB Ports
- iPod USB direct connectivity via your standard iPod-to-USB connection cable allows you to charge, control, and playback your iPod through the receiver and stereo system
- Detachable face
- 3 Line full motion blue Organic Electroluminescent Display (192x48 pixels)
- Wireless remote control included
- Blue button lighting
- CEA-2006 compliant amplifier
- Power Output:
- Peak: 50 watts x 4 channels
- RMS: 22 watts x 4 channels
- CD Text Display
- MP3 ID3 Tag Display (Title/Artist/Album)
- Supports multiple menu languages (English, Spanish, French)
- Display off/on function
- Internal amplifier off mode
- Passenger control mode
Playback and Audio Features:
- Playback of CD, CD-R, CD-RW, MP3, WAV, ACC, and WMA
- Supertuner IIID with 18FM/6AM presets
- EEQ (7-Band graphic equalizer)
- Advanced Sound Retriever (ASR)
- AGC (Automatic Gain Control)
- Alphabetical High-Speed Search
- Link Play (Artist, Album, Genre)
- Electronic Balance/Fader
- Source Level Adjuster (SLA)
- Disc Title Memory
- Disc/Track List
- 3 Mode loudness feature
- BSM (Best Stations Memory)
- High-Pass Crossover (HPF): (50/63/80/100/125 Hz, -12dB/octave)
- Low-Pass Crossover (LPF): (50/63/80/100/125 Hz, -18dB/octave)
Expandability Options:
- 3 Sets of 4V preamp outputs (front, rear and subwoofer)
- SIRIUS or XM Satellite Radio Ready: Pioneer Sirius Satellite Radio Package or GEX-P920XM Satellite Tuner required and sold separately
- HD Radio Ready: Pioneer GEX-P20HD required and sold separately
- Bluetooth Ready: Pioneer CD-BTB200 required and sold separately
- iPod and iPhone Ready: Direct connection through USB (Compatible with 1st, 2nd, and 3rd generation iPod Nano, 5th generation iPod, 1st generation touch, iPod classic, iPhone and iPhone 3G)
- Front-panel auxiliary input: 3.5mm (headphone jack) allows connection to portable media devices such as MP3 players, etc.
- Front and rear-panel auxiliary inputs: USB port allows connection to portable media devices such as MP3 players, etc. Rear IP-Bus auxiliary input: Pioneer CD-RB10 or CD-RB20 required and sold separately
- Steering Wheel Control Ready: PAC SWI-PSv1 is required and sold separately)
- CD Changer controls
Manufacturer | Pioneer |
---|---|
Part Number | DEH-P5100UB |
Chassis Size | Single DIN |
Faceplate features | Detachable face plate |
Built in Bluetooth | Optional |
NFC (Near Field Communication) | No |
HD Radio | Optional |
Satellite Radio | Sirius/XM |
Front mounted auxiliary input | 3.5 mm audio/video input |
USB input | Yes |
RCA Pre-amp Audio outputs | 3 Pairs (Front, Rear, Sub) |
Preamp voltage | 4 volts |
Steering Wheel Control | Yes, requires external module |
Wireless Remote Control | Yes |
Warranty | 1 Year |
Return period | 30 days |
Exchange period | 30 days |
