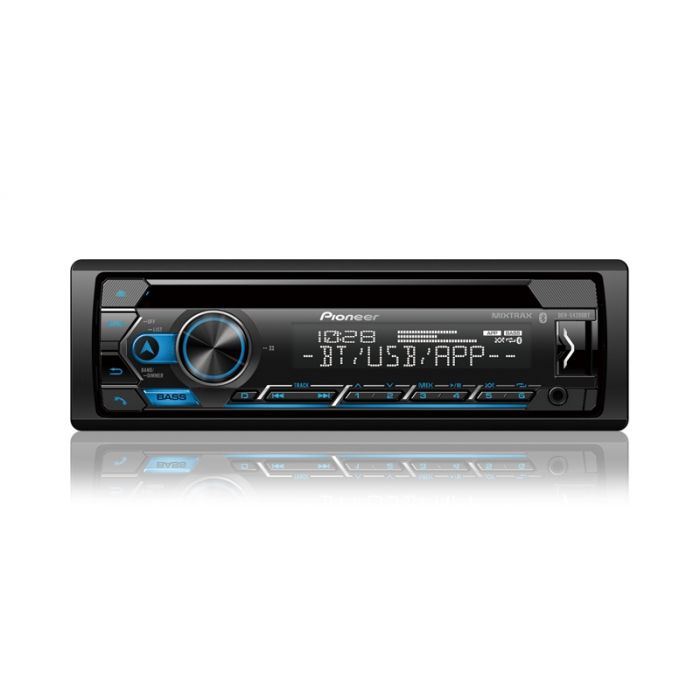

Pioneer DEH-S4200BT Single-DIN In-Dash CD Receiver with Bluetooth and Pioneer Smart Sync

$85.99
Out of stock
SKU
DEH-S4200BT

Key Features

  • Single-DIN in-dash CD receiver
  • Blue color illumination
  • Built-In MOSFET 50W x 4 Amplifier
  • iPhone and Android Pandora support
  • 2 sets of 2 volt RCA outputs
  • Pioneer Smart Sync to integrate music, navigation, and messaging apps
  • Built in Bluetooth
  • Siri Eyes Free
  • Front USB connection
  • Front 3.5mm Audio connection
  • Steering wheel control input
Unit includes: Single-DIN Receiver, Bluetooth Mic, Wiring Harness, Wireless Remote and instruction manual

Pioneer DEH-S4200BT Single-DIN In-Dash CD Receiver with Bluetooth
    Features:
  • Single-DIN in-dash CD receiver
  • Blue button illumination
  • Multilanguage support
  • Dual Bluetooth connectivity
  • Pioneer Smart Sync to integrate music, navigation, and messaging apps
  • Full detachable face-plate for extra security
  • Multi-Segmented 2-Line LCD Display with LED Backlight
  • Spotify and Pandora App Control
  • Pioneer ARC App Control
  • MIXTRAX Enjoy Your Favorite Music in a Non-Stop Mix
  • Built in Bluetooth with A2DP for wireless audio streaming
  • AM/FM radio tuner
  • Voice control for iphone, tell your car stereo who to call or what station to listen to
  • iPod and iPhone control with standard USB to lightning interface cable, simply connect your iPhone or iPod touch and access your entire music library
  • Pandora support for both iPhone and Android with CD-IU52 or CD-MU200 interface cable, simply connect your iPhone or iPod touch and stream Pandora
  • Android music support with MTP and AOA 2.0
  • Power Output: 4 channels x 50 watts peak and 4 channels x 22 watts RMS
  • MP3, AAC, WAV & WMA playback from CD's and USB
  • Displays CD text and MP3 ID3 Tag including title, artist & album
  • Easily accessible with wireless remote and graphic touch screen
  • Advanced Sound Retriever
  • Siri Eyes Free
  • Dual simultaneous phone pairing with guest mode
  • Spectrum Analyzer
  • Steering wheel control input


    Audio features:
  • Plays CD, CD-R, CD-RW, via USB plays MP3, ACC, WAC, FLAC and WMA
  • Electronic shock protection with built in buffer
  • Includes Supertuner IIID AM & FM tuner with 18 FM station 6 AM presets memory
  • Controls: Volume, Fader, Bass, Treble, Balance
  • 13-band Graphic equalizer with 6 preset and 1 custom options with 80Hz, 250Hz, 800Hz, 2.5kHz, 8kHz centers with up to 12dB adjustment
  • Variable subwoofer level control with selectable Low-Pass digital crossover filter 50Hz, 63Hz, 80Hz, 100Hz, 125Hz, 160Hz, 200Hz with 12db or 24db slopes and -24dB to +6dB adjustment
  • Normal and Reverse subwoofer phase control
  • CD text information, display artist and song information
  • MP3 ID3 tag information, display artist and song information
  • 24-bit Digital Analog Converter (DAC) to enhance your MP3/WMA playback
  • 3 Loudness modes


    Tuner features:
  • Includes AM & FM tuner with 24 preset stations memory
  • Best Station Memory (BSM)
  • RDS (Radio data service) Tuner
    Pioneer Smart Sync
  • Links your smartphone to Pioneer car audio and entertainment systems
  • With the Pioneer Smart Sync app, you can bring your smartphone’s maps, messages, and music together in the car
  • Pioneer DEH-S6100BS features new buttons such as NAV, BASS Boost and a Rotary knob that are optimized with the Pioneer Smart Sync App
  • Access music, navigation, and messaging apps from one location while driving
  • Voice Recognition
  • Hands Free Calling
  • Variable Wallpapers


    Bluetooth features:
  • Integral Bluetooth technology facilitates convenient hands-free phone calls and supports A2DP & AVRCP
  • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
  • AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
  • SPP: Serial Port Profile provides a wireless replacement for RS-232 based serial communications
  • PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list of the mobile phone directly from the car stereo
  • HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
  • External microphone for optimal placement
  • Bluetooth 2.0+ certified
  • Compatible with most Bluetooth phone that support Bluetooth 2.0 and above


    Inputs and outputs:
  • 2 - 2V preamp outputs (front, rear)
  • 1 - Front USB connection accepts up to a 32Gb
  • 1 - Front 3.5mm Audio connection for connection to multiple devices
  • 1 - Steering wheel control input requires ASWC steering wheel interface


    Dimensions:
  • Single DIN chassis
  • Dimensions: 7"W x 7-1/4"D x 2"H
More Information
Manufacturer Pioneer
Part Number DEH-S4200BT
Chassis Size Single DIN
Illumination color Blue
Faceplate features Detachable face plate
Disc Playback CD
Built in Bluetooth Built in Bluetooth
NFC (Near Field Communication) No
HD Radio No
Radio Data Service - RDS Yes
Satellite Radio No
Front mounted auxiliary input 3.5 mm audio input
USB input Yes
Audio Formats AAC, FLAC, Mpeg-3, WAV, WMA
RCA Pre-amp Audio outputs 2 Pairs (Front, Rear)
Preamp voltage 2 volts
Built in Crossover High-pass, Low-pass
Warranty 1 Year
UPC Code 884938434003
Return period 30 days
Exchange period 30 days
