DISCONTINUED - Pioneer MVH-290BT Digital Media Single-DIN Receiver with Bluetooth
Expert Knowledge
Talk to a specialist
- AM/FM Digital Multimedia Single DIN In-Dash car stereo receiver
- Completely mech-less and does not contain a disc player, meant for digital media playback
- MP3, WAV, WMA, FLAC playback from USB
- High, Low pass crossovers with subwoofer control

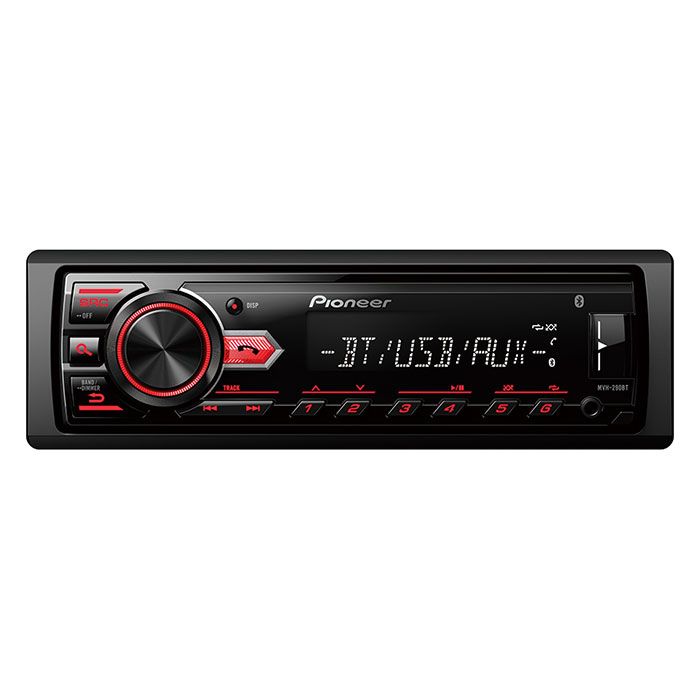

Pioneer MVH-290BT Digital Media Single-DIN Receiver with Bluetooth
-
Features:
- AM/FM Digital Multimedia Double DIN In-Dash car stereo receiver
- Completely mech-less and does not contain a disc player, meant for digital media playback
- Detachable face plate for added security
- 1-Line Multi-Segmented VA-LCD Display
- Red button and LCD illumination
- Built in Bluetooth with HFP, A2DP, AVRCP, SSP, for wireless audio streaming and wireless phone operation
- Android Music Support: MTP and AOA 2.0
- Front USB for thumb drives
- Power Output:
- 4 channels x 50 watts peak
- 4 channels x 17 watts RMS
- MP3, WAV, FLAC, WMA playback from USB
-
Digital Media Playback features:
- Plays MP3, WAV, WMA and FLAC
- MP3 ID3 tag information, display artist and song information
- Electronic shock protection with built in buffer
- Music text information, display artist and song information
- AM & FM tuner with 18 station 6 presets memory
-
Audio features:
- Controls: Volume, Fader, Bass, Treble, Balance
- 5-band Graphic equalizer with preset and custom options
- Variable subwoofer level control with selectable Low-Pass digital crossover filter 80, 120, 160
- High-Pass filter with variable slopes and crossover frequencies
- Low-Pass filter with variable slopes and crossover frequencies
- 3 Mode Loudness control
- Tuner features:
- AM & FM tuner with 24 preset stations memory
- Best station memory
- Local seek
- RDS (Radio data service) Tuner
- Integral Bluetooth technology facilitates convenient hands-free phone calls and supports A2DP & AVRCP
- A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
- AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
- HFP 1.6 : Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
- SPP: Serial Port Profile
- SSP - Secure Simple pairing
- External microphone with 10 foot cord for optimal placement
- Bluetooth 2.0+ certified
-
Inputs and outputs:
- 1 - 2V preamp outputs (front, rear and subwoofer)
- 1 - Front USB connection
- 1 - Front 3.5mm Audio connection for connection to multiple devices
-
Dimensions:
- Singel DIN chassis
- Dimensions: 7"W x 4-1/8"D x 1-15/16"H
| Manufacturer | Pioneer |
|---|---|
| Part Number | MVH-290BT |
| Chassis Size | Single DIN |
| Illumination color | Red |
| Faceplate features | Detachable face plate |
| Disc Playback | No |
| Built in Bluetooth | Built in Bluetooth |
| NFC (Near Field Communication) | No |
| HD Radio | No |
| Radio Data Service - RDS | Yes |
| Satellite Radio | No |
| Front mounted auxiliary input | 3.5 mm audio input |
| Audio Video inputs | 1 Audio Input |
| USB input | Yes |
| SD Card input | No |
| Audio Formats | FLAC, Mpeg-3, WAV, WMA |
| RCA Pre-amp Audio outputs | 1 Pair |
| Preamp voltage | 2 volts |
| Steering Wheel Control | Yes, requires external module |
| Built in Crossover | High-pass, Low-pass |
| Wireless Remote Control | Optional |
| Warranty | 1 Year |
| UPC Code | 884938343428 |
| Return period | 30 days |
| Exchange period | 30 days |
Car stereo installation
We show you the complete process of installing a Pioneer Double DIN car stereo in a Chevy truck. The in-depth video shows the installation of the interface, and steering wheel control.
Stereo Installation Basics
Let's start with the basics of replacing your car stereo receiver. In out first video we demonstrate how to crimp or solder your wiring, mount your new receiver to your dash kit and prepare everything for an installation in your vehicle.
Wiring Harnesses Explained
What do all of the wire colors mean? Aftermarket manufacturers have made car stereo receiver installation an easier process by using a standardized wire color scheme. We walk you through what each individual wire does, this way if you have an installation that doesn't perform properly you will have the resources to begin troubleshooting your installation.
Simple radio Installation
In our third video we demonstrate this installation process from start to finish. We show you the complete process of installing a Pioneer Double DIN car stereo in a Chevy truck. The in-depth video shows the installation of the interface, and steering wheel control.
Complex radio Installation
In our fourth video we demonstrate a much more difficult installation of a Car Stereo receiver. In this video we are using a more complicated dash kit and a difficult level of installation.
