Xantech DL85K LCD / CFL - Proof Dinky Link Remote IR Kit

Xantech DL85K LCD / CFL - Proof Dinky Link Remote IR Kit

Xantech DL85K LCD / CFL - Proof Dinky Link Remote IR Kit - Main

More Views

Xantec
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Xantec DL85K Product Highlights

  • Easily extend and use your remote control on components that are hidden in cabinets or in rack systems
  • Surface mount IR receiver makes mounting to any device very easy
  • Receiver has a 30 foot reception range
  • Receiver is designed to work with LED, LCD & plasma TV’s and CFL lighting
  • For use with all types of cable boxes, satellite boxes, remote controls and TVs
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Overview

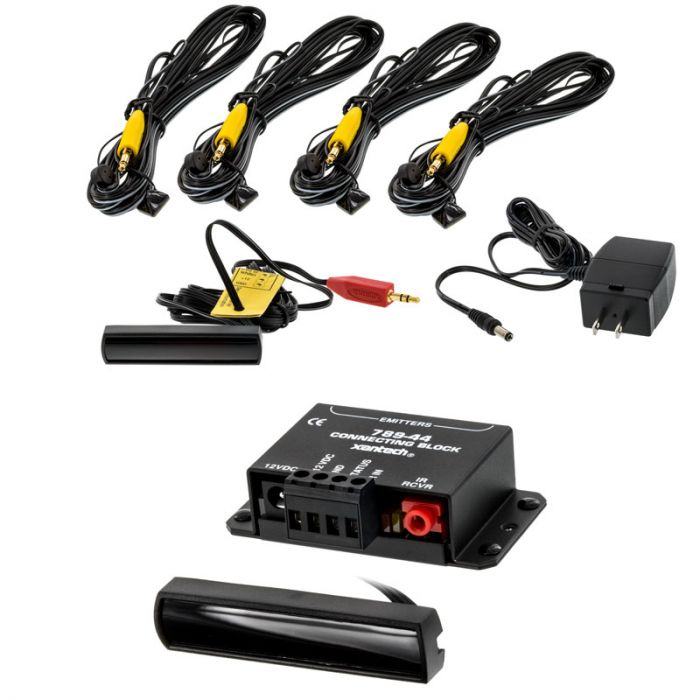

Unit includes: DL85 IR Receiver, 781ERGPS AC adapter, 789-44 Connecting block, 4 - Blink IR designer emitters, and Instruction manual

Xantech DL85K LCD / CFL - Proof Dinky Link Remote IR Kit

Features
  • Easily extend and use your remote control on components that are hidden in cabinets or in rack systems
  • Surface mount IR receiver makes mounting to any device very easy
  • Receiver has a 30 foot reception range
  • Receiver is designed to work with LED, LCD & plasma TV’s and CFL lighting
  • For use with all types of cable boxes, satellite boxes, remote controls and TVs
  • White, silver & black trim kit included to match any AV system
  • Proprietary ambient noise-suppression technology for reliable operation in any lighting environment including compact fluorescents
  • IR modulation frequency bandwidth: 25-60kHz
  • Loop-thru allows use of additional transmitters for more locations


Connector Pin-out Cable A
  • Pin 1 - Video Pr (+)
  • Pin 2 - Video Pr (-)
  • Pin 3 - Video Pb (+)
  • Pin 4 - Video Y (+)
  • Pin 5 - Video Y (-)
  • Pin 6 - Video Pb (-)
  • Pin 7 - IR Sleeve
  • Pin 8 - IR Tip


Connector Pin-out Cable B
  • Pin 1 - Audio Left (+)
  • Pin 2 - Audio Left (-)
  • Pin 3 - Audio Right (+)
  • Pin 4 - IR Ring
  • Pin 5 - Ground
  • Pin 6 - Audio Right (-)
  • Pin 7 - Digital Audio (+)
  • Pin 8 - Digital Audio (-)


One Cable Connection
  • Supports component video and digital audio only
  • A-Cable must be split out, by removing Brown and Brown white wire and crimping to second RJ-45 jack


IR Jacks
  • Supports direct pass through, requires third party IR system that utilizes 3 wire systems with 3.5mm connections
  • Passive jacks and no power is supplied, third party system must be compatible with full length cable run


Quick Specifications
  • Maximum range on CAT-5 cable: 300 feet @ 1080i
  • Maximum range on CAT-6 cable: 500 feet @ 1080i
  • Video isolation port to port: >65dB
  • Video isolation out to input: >80dB
  • Return loss: >30dB
  • Video bandwidth >50 MHz (HDTV requires 37MHz minimum)
  • Audio input impedance: 22K ohm
  • Audio output impedance: 1K ohm
  • Audio Frequency response: 20Hz - 20kHz
  • Audio signal to noise ratio: 80dB @ 1 volt output

Technical Specifications

Manufacturer Xantec
Part Number DL85K
Wire Size No
Length 300 Feet
Connector Type N/A
Cable Type Component Video
Color Black
UL/Compliance Rating No
Warranty 1 Year
UPC Code 042777318360
