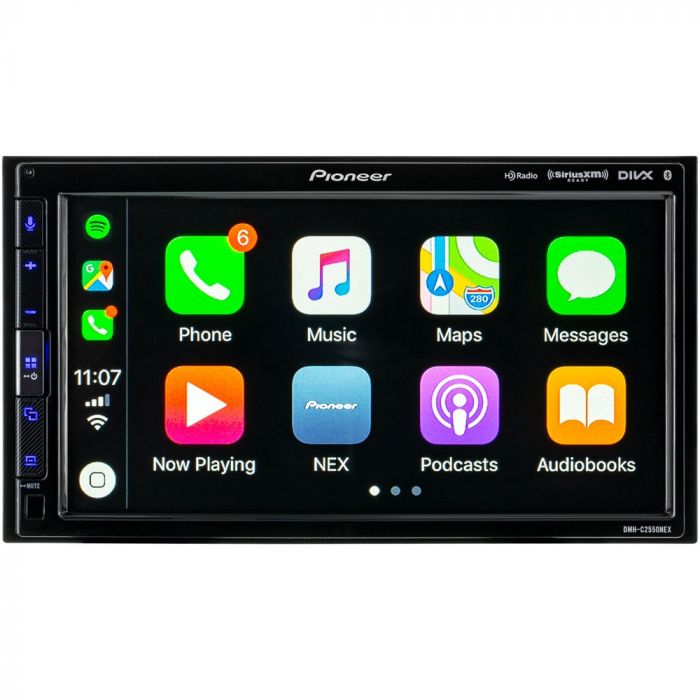

Pioneer DMH-C2550NEX Double DIN 6.8 inch Modular Digital Media Receiver with Clear Resistive Touchscreen, Apple Carplay, Android Auto, and HD Radio
- 6.8 inch Modular Digital Media Receiver with Clear Resistive Touchscreen
- Apple Carplay and Android Auto via Bluetooth
- Built-in Bluetooth
- Built in HD Radio
- WebLink car connectivity solution offers the fastest and easiest way for drivers to elevate their in-vehicle, smartphone experience
- Dual Camera Ready for Rear and Front Cameras
- Siri and Google Assistant
- Dual zone capable
- 3 Sets of Hi-Volt RCA Preouts (4V) for System Expansion
-
Pioneer DMH-C2550NEX Double DIN 6.8 inch Modular Digital Media Receiver with Clear Resistive Touchscreen, Apple Carplay, Android Auto, and HD Radio
- 6.8 inch Modular Digital Media Receiver with Clear Resistive Touchscreen
- Pioneer physically separated the LCD touchscreen display from the sub-chassis that contains the CPU, and control system
- Apple Carplay and Android Auto via Bluetooth
- USB connection Apple Carplay and Android Auto
- Built in Bluetooth with HFP, A2DP, AVRCP, SSP for wireless audio streaming and wireless phone operation
- Dual Camera Ready for Rear and Front Cameras
- WebLink car connectivity solution offers the fastest and easiest way for drivers to elevate their in-vehicle, smartphone experience
- LCD screen Resolution: 800 x 480 Pixels
- LED Back-lighting
- Works with Google Assistant and Apple HomeKit: control smart thermostat, lights, locks and garage door on the stereo
- 5 Color LCD Display illumination colors, 112 color button illumination
- Selectable backgrounds
- Mosfet Power amplifier with Output: 4 channels x 50 watts Peak and 4 channels x 17 watts RMS
- 12 hours or 24 hours clock display
- Displays CD text and MP3 ID3 Tag including title, artist & album
- Easily accessible with wireless remote and graphic touch screen
- Jpeg picture viewer
- iPod interface control with optional CD-IU201V cable
- AppRadio Mode for iPhone 4 and 4S with CD-IU201S cable
- AppRadio Mode for Android phones with CD-AH200 cable
- Wireless Pandora Control for iPhone and Android
- Siri Eyes Free Compatible
- Dual-zone control, play a movie in the backseat for the children while the driver listens to the radio!
- Electronic shock protection with built in buffer
- MP3/WMA/iTunes AAC Audio Playback on USB
- MP3 ID3 tag information, display artist and song information
- Jpeg image playback on USB
- DivX Video Playback on USB
- H.264/WMV Video Playback USB
- Linear PCM decoder for excellent digital audio quality
- Dolby Digital Decoder for surround sound
- MPEG-1, MPEG-2, MPEG-4 Decoder for playback of nearly any digital file
- FLAC Audio Playback for high definition audio downloads
- MKV/FLV Video Playback
- Link Search for iPod
- iTunes Tagging
- Voice Recognition Support
- Pandora Radio App Compatible with proper cable
- Pandora Station Creation
- 96 kHz/24-bit D/A Converter for high quality digital to analog conversion
- 13-band parametric equalizer with preset and custom options
- High-Pass filter with variable slopes and crossover frequencies
- Variable subwoofer level control with selectable Low-Pass digital crossover filter 80, 120, 160
- Selectable sound fields: Hall, Classic, Pop, Rock, User
- Built in time-alignment
- Includes HD-Radio AM & FM tuner with 24 preset stations memory
- RDS (Radio data service) Tuner
- SiriusXM radio ready with SXV300 Sirius XM tuner
- Integral Bluetooth technology facilitates convenient hands-free phone calls and supports A2DP & AVRCP
- A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
- AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
- External microphone with 10 foot cord for optimal placement
- Bluetooth 2.0+ certified
- Compatible with most Bluetooth phone that support Bluetooth 2.0 and above
- 3 - 4V preamp outputs (Front, Rear and Subwoofer)
- 1 - Rear Backup Camera Input
- 1 - Rear video output to connect to an external monitors
- 1 - Rear Audio video inputs for connection to external source
- 1 - Rear RCA Harness Input
- 1 - Rear Antenna
- 1 - Rear Sirius XM
- 1 - Rear USB connection accepts up to a 32Gb
- 1 - Steering wheel control input requires ASWC steering wheel interface
- 1 - iDataLink Maestro Rr input
Features:
Media playback features:
Audio features:
Tuner features:
Bluetooth features:
Inputs and outputs:
- Android Auto features:
- Built in Navigation via Google Maps
- Navigation provides real-time traffic
- Hands-free voice guidance with text to speech prompts, so one can keep their eye on road while driving
- Place and receive hands-free calls using Google Assistant
- Place and receive hands-free text messages using Google Assistant
- Compatible with third party apps for a complete hands free assistant
- Requires phone to be connected via USB
- Apple Car Play features:
- Built in Navigation via Apple Maps
- Navigation provides real-time traffic
- Hands-free voice guidance with text to speech prompts, so one can keep their eye on road while driving
- Place and receive hands-free calls using Siri Assistant
- Place and receive hands-free text messages using Siri Assistant
- Compatible with third party apps for a complete hands free assistant
- Requires phone to be connected via USB
- Pioneer WebLink:
- In-dash control of select apps via USB connection via iPhone or Android
- WebLink car connectivity solution offers the fastest and easiest way for drivers to elevate their in-vehicle, smartphone experience
- Display and get control apps like YouTube, Yelp, Music Player, Video Player, and Zomato onto the stereo
Dimensions:
- Double DIN chassis
- Dimensions: 7"W x 7-1/8"D x 3-15/16"H
Manufacturer | Pioneer |
---|---|
Part Number | DMH-C2550NEX |
Chassis Size | Double DIN |
Faceplate features | None |
RCA Pre-amp Audio outputs | 3 Pairs (Front, Rear, Sub) |
Preamp voltage | 4 volts |
LCD Screen Size | 7 inch - 8 inch |
Illumination color | Full Color |
Touchscreen | Yes - Capacitive touchscreen |
Widescreen Display | 16:9 Widescreen Display |
Native Screen Resolution | 800 x 480 |
Front camera input | Yes |
Back up camera input | Yes |
Audio Video inputs | 2 Audio Video Inputs |
Front mounted auxiliary input | None |
Audio Video Outputs | 1 Video output |
Built-in DVD Player | Yes |
Disc Playback | DVD |
Anti-Shock | Yes |
Dual Zone Control | Yes |
SD Card input | Yes, SD Card |
USB input | Dual USB |
Smartphone Compatible | Yes |
Smartphone Technology | Apple CarPlay and Android Auto |
Built in Crossover | High-pass, Low-pass |
Audio Formats | AAC, FLAC, Mpeg-3, WAV, WMA |
Built in Bluetooth | Built in Bluetooth |
NFC (Near Field Communication) | No |
HD Radio | Yes |
Satellite Radio | Sirius XM Ready |
Navigation | Built in |
Steering Wheel Control | Yes, requires external module |
Wireless Remote Control | Yes |
CEA2006 Compliant | No |
Warranty | 1 Year |
UPC Code | 884938416443 |
Return period | 30 days |
Exchange period | 30 days |
Car stereo installation
We show you the complete process of installing a Pioneer Double DIN car stereo in a Chevy truck. The in-depth video shows the installation of the interface, and steering wheel control.
Stereo Installation Basics
Let's start with the basics of replacing your car stereo receiver. In out first video we demonstrate how to crimp or solder your wiring, mount your new receiver to your dash kit and prepare everything for an installation in your vehicle.
Wiring Harnesses Explained
What do all of the wire colors mean? Aftermarket manufacturers have made car stereo receiver installation an easier process by using a standardized wire color scheme. We walk you through what each individual wire does, this way if you have an installation that doesn't perform properly you will have the resources to begin troubleshooting your installation.
Simple radio Installation
In our third video we demonstrate this installation process from start to finish. We show you the complete process of installing a Pioneer Double DIN car stereo in a Chevy truck. The in-depth video shows the installation of the interface, and steering wheel control.
Complex radio Installation
In our fourth video we demonstrate a much more difficult installation of a Car Stereo receiver. In this video we are using a more complicated dash kit and a difficult level of installation.
