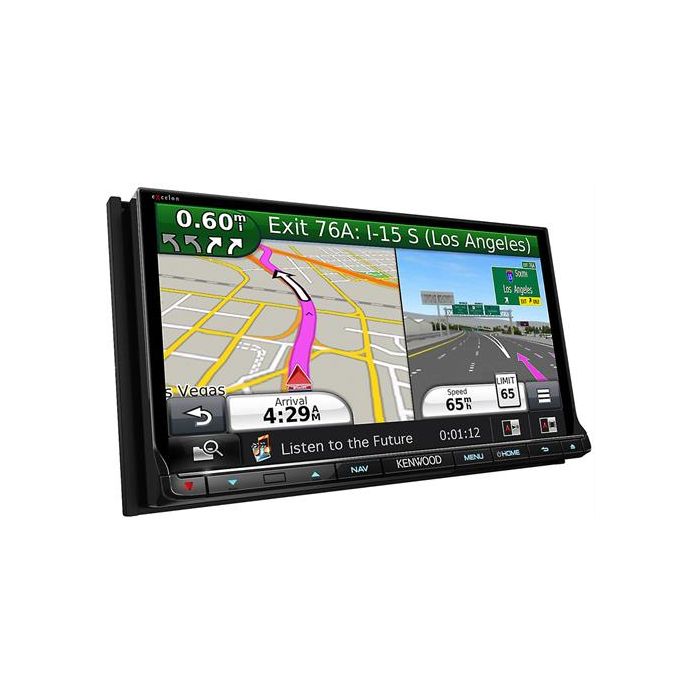

Kenwood eXcelon DNN992 6.95 Inch Double DIN Car Stereo Receiver

Description

Unit includes: Double DIN radio, Remote control, External microphone, GPS sensor, Magnetic Pad, Wiring harness, Mounting hardware, Mounting cage, Back strap, USB cable, and Instruction manual

Kenwood Excelon DDX9903S 6.95" Double DIN Car Stereo receiver with Android Auto and Apple Car Play

Features:

6.95 inch WVGA widescreen double DIN in-dash touchscreen receiver
Capacitive touchscreen for great touch control, requires less pressure with greater accuracy
Built-in Garmin Navigation
True Mirroring with HDMI / MHL
Network: Use pre-installed social media applications like Facebook and Twitter and AV browser can play streaming videos
Hi-Res Audio: Supports up to 192kHz/24bit resolution in FLAC or WAV formats
Motorized 6 Step Tilt Angle Adjust
HD Radio
Built-in WiFi (USB Dongle) & Verizon 4G Dongle Supported
SD Card Slot
Detachable USB
Built in Bluetooth with HFP, A2DP, AVRCP, SSP for wireless audio streaming, wireless audio, and dual phone connection
LCD screen Resolution: 800 x 480 Pixels
LED Backlighting
Dual 1.5 Amp USB ports with Android Rapid Charge
Full color variable button illumination
Selectable backgrounds with information window, plus new wallpapers
Mosfet Power amplifier with Output: 4 channels x 50 watts Peak and 4 channels x 22 watts RMS
12 hours or 24 hours clock display
Displays text, tags and titles for artist and album
Easily accessible with customizable GUI graphic touch screen
iDataLink Maestro compatible with iDataLink ADS-MRR Maestro interface
SiriusXM Radio ready with SXV300V1 Sirius XM Connect Satellite Radio Tuner
Wireless or wired Pandora and Spotify Control for iPhone and Android
Adjustable parking grid lines for back up camera
Dual zone control

Media playback features:

Plays DVD, CD-RW, CD-R, DVD-R, DVD-RW, MPEG1/2, MP3, MPEG4, AAC, WAV, FLAC, H.264, JPEG, MKV, and WMA
Region 1 DVD player
Electronic shock protection with built in buffer
MP3/WMA/WAV/WMV/AAC/FLAC/H.264/MPEG1/MPEG2 Playback on CD/DVD/USB
Displays text, tags and titles for artist and album
Linear PCM 96kHz/24-Bit/32-bit decoder for excellent digital audio quality

Audio features:

13-band parametric equalizer with 8 preset and custom options (Drive EQ / Flat / Rock / Pops / Easy / Powerful / Top 40 / Jazz) and (Adjustable from ±9dB)
High-Pass filter with variable slopes and crossover frequencies (Adjustable from 50 to 220 Hz) and (Adjustable slope from -6dB / -12dB / -18dB / -24dB)
Low-Pass filter with variable slopes and crossover frequencies (Adjustable from 50 to 120 Hz) and (Adjustable slope from -6dB / -12dB / -18dB / -24dB)
Variable subwoofer level control (-50dB to +10dB) with selectable low-Pass digital crossover filter (Adjustable from 50 to 120 Hz) with variable slopes (Adjustable slope from -6dB / -12dB / -18dB / -24dB)
Speaker size setup for perfect crossover mapping from subwoofer to door speakers (Standard, Narrow, Middle or Wide speaker type)
Loudness function (Boost bass and upper frequencies)
Drive EQ boosts specific frequencies in the audio signal to compensate the negative impact of road noise
Digital time alignment with independent front, rear, and subwoofer delay
High-resolution audio playback 96kHz/24-Bit audio with K2 audio technology
Sound response restorer to cancels time distortion to create clearer sound during the playback of compressed audio files
Space Enhancement is a virtual surround technology using 2 speakers. Just select the vehicle size, and the head unit automatically adjusts the sound effectively
Sound lift to virtually manipulate the height of the speakers by adjusting the sound frequencies
Volume Link EQ boosts specific frequencies in the audio signal to compensate for the impact of road noise. It boosts frequencies in the music that are affected by road noise
Dual zone control
Digital time alignment

Tuner features:

HD AM & FM radio tuner with 20 preset stations memory
RDS (Radio data service) Tuner
SiriusXm radio ready with SXV300 Sirius XM tuner

Bluetooth features:

Integrated Bluetooth 3.0 technology facilitates convenient hands-free phone calls and high quality audio streaming
A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
SPP: Serial Port Profile provides a wireless replacement for RS-232 based serial communications
HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list
SSP: Secure Simple Pairing
SDP: Service Discovery Profile
GAP: Generic Access Profile
External microphone with 10 foot cord for optimal placement
Bluetooth 3.0+ EDR certified
Compatible with most Bluetooth phone that support Bluetooth 2.0 and above
Includes wired microphone for optimal placement

Inputs and outputs:

3 - 5V preamp outputs (Front, Rear and Subwoofer)
1 - Rear HDMI input with MHL support
1 - Rear Input for Rear Camera
1 - Rear Input for Front Camera
1 - Rear audio video output to connect to an external monitors (Dual zone)
1 - Rear Audio video input for connection to external source
2 - Rear USB connection accepts up to a 64Gb
1 - Steering wheel control input requires ASWC steering wheel interface
1 - iDataLink Maestro input and output

Navigation features:

Equipped with the industry leading Garmin navigation software
Includes 2 years free access to INRIX data services, offering real time traffic information as well as parking, fuel services, weather and much more
Junction View, Lane Assist, 3D Building Map, Multi-Route Review, ecoRoute, My Trend, Multi-touch Opeartion, Route Collector
Offers points of interest and real time traffic
Request guidance or enter an address by voice command
Use voice commands to send text messages and answer calls without ever touching your phone
Search the internet through voice commands while driving and stay connected to virtually anything or find the closest restaurants or gas station
Device control via Apps Mode requires KENWOOD Smartphone Control from Google Play

Dimensions:

Double DIN chassis
Dimensions: 7"W x 6-1/4"D x 3-15/16"H

Specifications

More Information
Manufacturer	Kenwood
Part Number	DNN992
Chassis Size	Double DIN
RCA Pre-amp Audio outputs	3 Pairs (Front, Rear, Sub)
Preamp voltage	5 volts
LCD Screen Size	7 inch - 8 inch
Illumination color	Full Color
Swivel Screen	No
Touchscreen	Yes - Capacitive touchscreen
Widescreen Display	16:9 Widescreen Display
Native Screen Resolution	Native Screen Resolution
Front camera input	Yes
Back up camera input	Yes
Audio Video inputs	2 Audio Video Inputs
Front mounted auxiliary input	None
Audio Video Outputs	1 Audio/Video output
Built-in DVD Player	Yes
Disc Playback	DVD
Anti-Shock	Yes
USB input	Dual USB
HDMI input	Yes
Smartphone Compatible	Yes
Audio Formats	AAC, FLAC, Mpeg-3, WAV, WMA
Video Formats	H.264, JPEG, MPEG-1, MPEG-2, MPEG-4, WMV
Built in Bluetooth	Built in Bluetooth
NFC (Near Field Communication)	No
HD Radio	Yes
Radio Data Service - RDS	Yes
Satellite Radio	Sirius XM Ready
Navigation	Built in
GPS Maps	USA
Integration Module	iDataLink Maestro RR
Steering Wheel Control	Yes, requires external module
Wireless Remote Control	Yes
CEA2006 Compliant	No
Warranty	1 Year
UPC Code	019048211507
Return period	30 days
Exchange period	30 days
