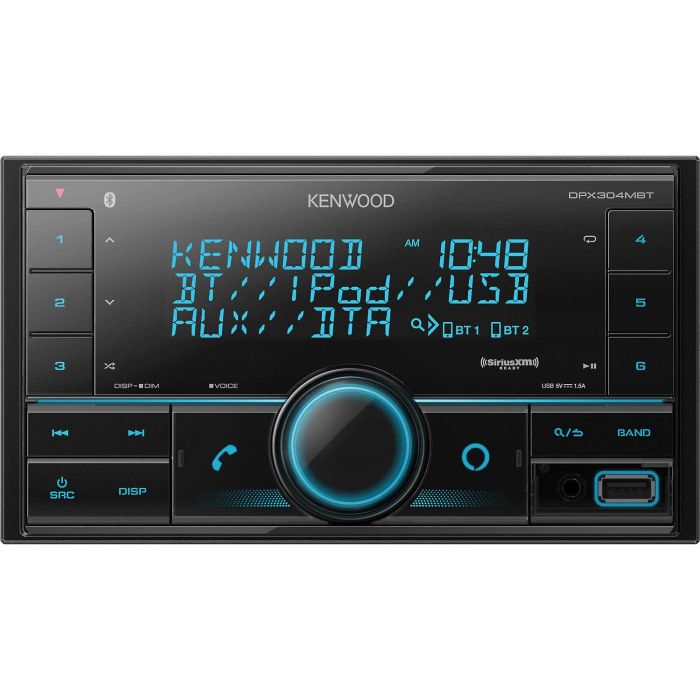

Kenwood DPX304MBT Double DIN Digital Media Receiver

$139.99
Out of stock
SKU
DPX304MBT

Key Features

  • Double DIN In-Dash Digital Media Receiver
  • Built in Bluetooth for phone calls and wireless audio streaming
  • Variable button illumination for perfect matching of your factory button color
  • Front USB input for thumb-drives
  • AM/FM Radio tuner
  • 13-band EQ
  • SiriusXM radio ready
  • No Disc Slot ***
  • Steering wheel control input
  • 2.5V preamp outputs (Front, Rear and Subwoofer)
Unit Includes: Double DIN CD receiver, DIN Mounting Sleeve, Universal trim ring, Wiring harness, Bluetooth Microphone, and Instruction manual


Kenwood DPX302U Double DIN Digital Media Receiver
Features
  • Double DIN car stereo with USB input
  • Multi-Segmented 13 Digital 1.5 Line LCD Display
  • No Disc Slot ***
  • Variable button illumination for perfect matching of your factory button color
  • Manual dimmer and brightness control
  • Built in Bluetooth for phone calls and wireless audio streaming
  • AM/FM tuner
  • Siri Eyes Free voice control for iphone
  • Android Music Playback
  • Compatible Kenwood Music Play Android App
  • iPod interface control (30 Pin connector) with optional KCA-iP102 cable
  • iPod interface control (Lightning connector) with optional KCA-iP103 cable
  • Mosfet Power amplifier with Output: 4 channels x 50 watts Peak and 4 channels x 22 watts RMS
  • Displays MP3 ID3 Tag including title, artist & album
  • Steering wheel control input
  • Front USB input for thumb-drives

Media playback features
  • No Disc Slot ***
  • Via USB plays MP3, WMA, AAC, WAV and FLAC files
  • Electronic shock protection with built in buffer
  • MP3 ID3 tag information, display artist and song information
  • Pandora® Radio App Compatible from iPod touch, iPhone with proper cable, Android through Bluetooth
  • Spotify® Radio App Compatible from iPod touch, iPhone with proper cable, Android through Bluetooth
  • iHeart® Radio App Compatible from iPod touch, iPhone with proper cable, Android through Bluetooth

Audio features
  • 13-band parametric equalizer with 8 preset and custom options (Drive EQ / Natural / Rock / Pops / Easy / Powerful / User / Jazz / TOP 40 )
  • Manual EQ with 62.5 Hz / 100Hz / 160 Hz / 250 Hz / 400 Hz / 630 Hz / 1 kHz / 1.6 kHz / 2.5 kHz / 4 kHz / 6.3 kHz / 10 kHz / 16 kHz frequency centers ±9dB with adjustable Q
  • Front High-Pass filter with variable slopes and crossover frequencies (Adjustable from 30 to 250 Hz) and (Adjustable slopes from -6dB / -12dB / -18dB / -24dB)
  • Rear High-Pass filter with variable slopes and crossover frequencies (Adjustable from 30 to 250 Hz) and (Adjustable slopes from -6dB / -12dB / -18dB / -24dB)
  • Variable subwoofer level control (-50dB to +10dB) with selectable Low-Pass digital crossover filter (Adjustable from 30 to 250 Hz) with variable slopes (Adjustable from -6dB / -12dB / -18dB / -24dB)
  • Subwoofer phase control 0° - 180°
  • Speaker size setup for perfect crossover mapping from subwoofer to door speakers (3.5" / 4" / 4.75" / 5" / 6.5" / 6.75" / 7" / 4x6" / 5x7" / 6x8" / 6x9" / 7x10")
  • Boost bass with 6 levels Level1 / Level2 / Level3 / Level4 / Level5 / Off
  • Sound reconstruction restores digital files
  • Loudness function (Boost bass and upper frequencies)
  • Drive EQ boosts specific frequencies in the audio signal to compensate the negative impact of road noise

Tuner features
  • Includes AM & FM tuner with 24 preset stations memory
  • iTunes tagging
  • RDS (Radio data service) Tuner
  • SiriusXM radio ready with SXV300 Sirius XM tuner
  • SiriusXM radio replay, replay up to the last 60 minutes of your current channel
  • SiriusXM radio SmartFavorites - automatically buffers the broadcast audio content of SmartFavorites channels in the background so you can rewind or replay any missed content

Bluetooth
  • Integral Bluetooth technology facilitates convenient hands-free phone calls and audio streaming
  • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
  • AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
  • SPP: Serial Port Profile provides a wireless replacement for RS-232 based serial communications
  • HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
  • PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list
  • External microphone with 10 foot cord for optimal placement
  • Bluetooth 2.1+ EDR certified
  • Siri Eyes Free voice support
  • Bluetooth Auto Pairing

Inputs and Outputs
  • 3 - 2.5V preamp outputs (Front, Rear and Subwoofer)
  • 1 - 3.5mm front audio input for connection to external source
  • 1 - SiriusXM radio tuner input
  • 1 - Front USB connection
  • 1 - Rear microphone input
  • 1 - Steering wheel control input requires ASWC steering wheel interface

Dimensions
  • Double DIN chassis
  • Dimensions: 7" W x 6-5/16" D x 3-15/16" H
More Information
Manufacturer Kenwood
Part Number DPX304MBT
Chassis Size Double DIN
Illumination color Full Color
Faceplate features None
Disc Playback No
Built in Bluetooth Built in Bluetooth
NFC (Near Field Communication) No
Radio Data Service - RDS Yes
Satellite Radio Sirius XM Ready
Front mounted auxiliary input 3.5 mm audio input
USB input Yes
SD Card input No
Audio Formats AAC, FLAC, Mpeg-3, WAV, WMA
RCA Pre-amp Audio outputs 3 Pairs (Front, Rear, Sub)
Preamp voltage 2 volts
Steering Wheel Control Input Yes, requires external module
Built in Crossover High-pass, Low-pass
Wireless Remote Control No
Warranty 1 Year
Return period 30 days
Exchange period 30 days
