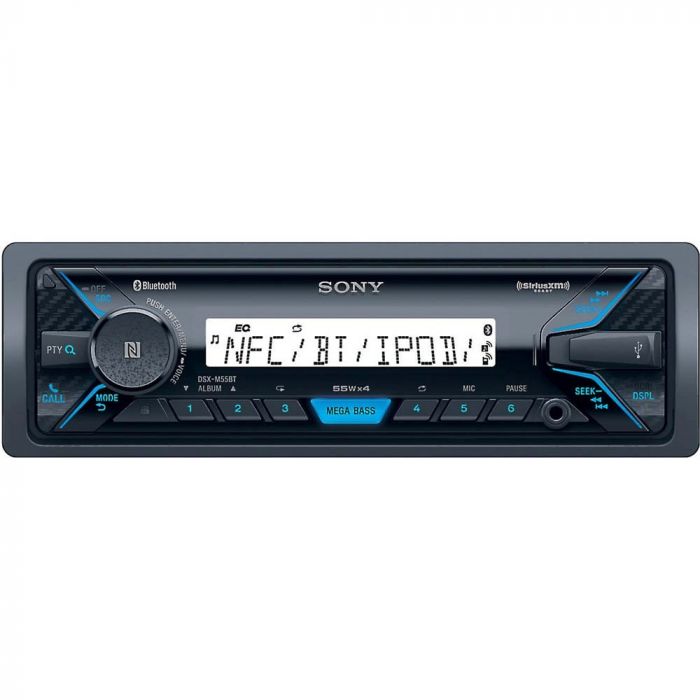

Sony DSX-M55BT Single DIN Marine Stereo Digital Media Receiver with Bluetooth and NFC

Rating:
96 % of 100
$139.99
Out of stock
SKU
DSX-M55BT

Key Features

  • Sony DSX-M55BT Single DIN Digital Media Receiver
  • High power 4-channel amplifier: 55 watts Peak and 20 watts RMS
  • 10-band parametric equalizer with 8 preset and custom options
  • Full detachable face with blue button color illumination
  • Front USB input for thumb-drives
  • Steering wheel control input
Unit includes: Single DIN Stereo, Remote control, Wiring harness, Mounting hardware and Instruction manual

Sony DSX-M55BT Single DIN Marine Stereo Digital Media Receiver with Bluetooth and NFC
    Features:
  • Single DIN Digital Media receiver
  • Amazing high power 4-channel amplifier with Output: 4 channels x 55 watts Peak and 4 channels x 20 watts RMS (CEA rated)
  • Internal amplifer is as capable as a seperate amp and can be bridged for single subwoofer output
  • Full detachable face with dual-zone variable color illumination
  • Multi-Segmented 13 Digital 2 Line LCD Display
  • Blue button illumination with 2 zone illumination to match your factory button color
  • Button Illumination has Sound and color synchronization for DJ like effects
  • Dimmer and brightness control
  • Built in Bluetooth for phone calls and wireless audio streaming
  • Voice control from Android or iOS smartphones via Bluetooth connection
  • Siri Eyes Free voice control for iphone
  • Voice control for Android
  • Pandora Internet radio control via Bluetooth
  • Carbon Fiber faceplate for extra clean look
  • Displays MP3 ID3 Tag including title, artist & album
  • Steering wheel control input
  • Front USB input for thumb-drives
    Media playback features:
  • Plays AAC, WAV, MP3 and WMA
  • Electronic shock protection with built in buffer
  • MP3/WMA/AAC/FLAC/WMA Audio Playback on USB
  • MP3 ID3 tag information, display artist and song information
  • 24-bit Digital to Analog Converter
  • AOA 2.0-compatible USB
    Audio features:
  • 5-band parametric equalizer with 8 preset and custom options (R and B / Dance / Rock / Pop / Hip-Hop / Electronica / Jazz / Soul / Country / Custom)
  • Intelligent Extrabass: Level1 / Level2 / Off
  • Manual EQ with ±10dB adjustments
  • Variable subwoofer level control (-6dB to +6dB) with selectable Low-Pass digital crossover filter (Adjustable from 80 Hz / 100 Hz / 120 Hz)
  • Subwoofer phase control 0° - 180°
  • Sound Synchronization displays color changes timed to your music
    Tuner features:
  • Includes AM & FM tuner with 30 preset stations memory
  • RDSB (Radio data service) Tuner
    Bluetooth features:
  • Integral Bluetooth technology facilitates convenient hands-free phone calls and audio streaming
  • NFC: Near Field Communication auto pairing
  • A2DP 1.3: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
  • AVRCP 1.3: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
  • HFP 1.6: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
  • PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list
  • Optional External microphone with 10 foot cord for optimal placement (sold separately)
  • Bluetooth 3.0 certified
  • Siri Eyes Free voice support
  • Voice control for Android
  • NFC for easy pairing of Bluetooth devices
  • Full voice recognition with SMS text response
  • Supports single phone connection
    Inputs and outputs:
  • 2 - 2V preamp outputs (Front, Rear/Subwoofer)
  • 1 - 3.5 mm front audio input for connection to external source
  • 1 - Front USB connection with High power charging
  • 1 - Rear microphone input (Microphone is optional)
  • 1 - Steering wheel control input requires ASWC steering wheel interface
  • 1 - Marine wired remote control input (RM-X11M optional)
    Dimensions:
  • Single DIN chassis
  • Dimensions: 7"W x 4-3/4"D x 2"H
More Information
Manufacturer Sony
Part Number DSX-M55BT
Chassis Size Single DIN
Illumination color Blue
Faceplate features Detachable face plate
Disc Playback No
Anti-Shock Yes
Built in Bluetooth Built in Bluetooth
NFC (Near Field Communication) No
HD Radio No
Radio Data Service - RDS Yes
Satellite Radio No
Front mounted auxiliary input 3.5 mm audio input
Audio Video inputs 1 Audio Input
USB input Yes
SD Card input No
Audio Formats AAC, Mpeg-3, WAV, WMA
RCA Pre-amp Audio outputs 2 Pairs (Front, Rear/Sub)
Preamp voltage 2 volts
Steering Wheel Control Yes, requires external module
Built in Crossover Low-pass
Wireless Remote Control Yes
Warranty 1 Year
UPC Code 027242896017
Return period 30 days
Exchange period 30 days
