Accelevision DVD9850HDMI 9 inch Universal attachable DVD headrest Monitor system
- Unit Features:
- 9 inch Active Matrix LCD display with built in DVD player and media player
- Sold individually
- HDMI input
- (3) colored trims are included and allow you to match your vehicles interior. Grey, Tan, and Black are included
- Single DVD system, two units can be connected to one another to display the same DVD movie (HDMI, and digital media will not be cross linked)
- Includes game controller and CD of 16 bit games
- Includes parental RF remote control to pause movie from front seat for child discipline
- Wiring information
- Unit can be permanently installed or temporarily installed
- Temporary installations can use the cigarette lighter cord for power (Will lack cross connect capabilities)
- Permanent installations use the hardwire cable that has inputs and outputs, this allows you to connect two units together
- Permanent cable assemble has a disconnect that allows for quick removal of player for security reasons
- Mounting information:

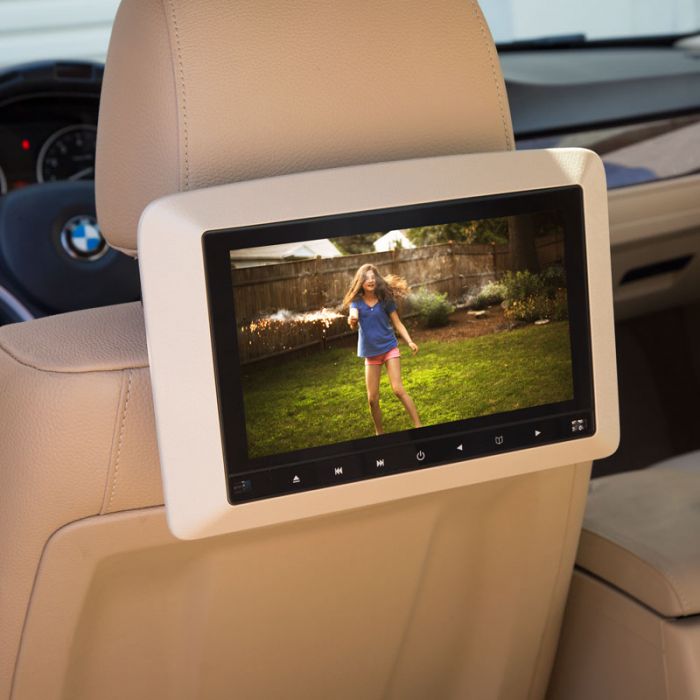

- System can be mounted to any headrest, Active or non Active, and mounts in minutes
- Twin clamp style mount allows for quick installation and removal without removing the bracket from the headrest
- Quick release slide mechanism makes removing players from headrests very easy while leaving mount in place
- Slide track on back allows unit to be adjusted up or down 3"
- Mount has adjustments for different headrest pillow depths - 2-3/8" minimum depth from center id headrest post, 3-5/8" maximum depth from center of headrest post
- Headrest Post width sizing: 8" on center maximum, 3-1/2" minimum
- 5 different post diameter adapters: 10.4mm, 11.3mm, 12mm, 13mm, 14.3mm
- 120 degree angle adjustment for optimal viewing angle and nice factory fit look(40° down / 90° up)
- Inputs and Outputs
- 1 - Cigarette lighter plug for quick installation
- 1 - Permanent power cord installation cable
- 1 - Audio Video output cable for cross connect (Requires male-to-male RCA cable)
- 1 - HDMI input (See below for HDMI input limitations)
- 1 - 3.5mm headphone jack
- Built in speakers
- Built in two channel headphone transmitter
- Built in FM modulator
- 1 - SD card input (tested up to 16GB may accept 32GB class 10 cards)
- 1 - USB input (tested up to 16GB may accept 32GB)
- Media Playback
- Disc drive: DVD, DVD+R, CD, CD-R, VCD, MPEG2, MP3, Divx, Xvid
- USB: MPEG2, MP3, Divx, Xvid
- SD Card: MPEG2, MP3, Divx, Xvid
- Display specifications
- 9 inch active matrix TFT LCD screen
- Auto resume feature - DVD picks up where it left off before power was removed
- 16:9 widescreen display
- LED backlight
- 350 NIT brightness
- NTSC/PAL auto switch
- 800 x 480 x 3 Pixel Resolution
- Dimensions
- Dimensions of unit: 11" (W) x 7-3/8" (H) x 2-1/4" (D)
- HDMI input limitations
- When using HDMI input the system will not output video to a second screen. HDMI input in to a single screen only
