DISCONTINUED - Savv FSC-707-B Surface Mount Micro Front or Reverse Backup Camera - Black
$53.99
Out of stock
SKU
FSC-707-B
Expert Knowledge
Talk to a specialist
- Surface mount car camera camera
- Front or rear view use
- WDR - (Wide Dynamic Range)
- BLC - (black Level Compensation)
- Super night vision
- Built in three color parking grid lines
- Super CMOS image sensor
- 170° wide viewing angle
- Black housing
Unit includes: Black car camera, Wiring harness, Double sided tape, Cable retainer, Hex key, and Instruction manual

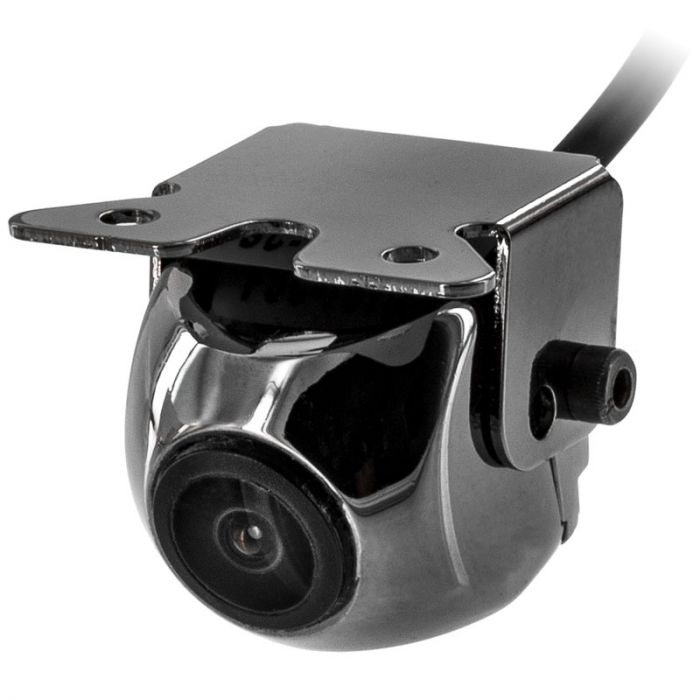

Savv FSC-707-B Surface Mount Micro Front or Reverse Backup Camera - Black
Savv FSC-707-B Surface Mount Micro Front or Reverse Backup Camera - Black
- Features:
- Surface mount car camera camera
- 2 cut-able wires allow you to change between reverse and non reverse and guide lines and no guide lines
- Camera can be used for front or rear view use
- Built in three color parking grid lines for visual representation of distance to another vehicle or object
- WDR - (Wide Dynamic Range)
- BLC - (black Level Compensation)
- Super night vision
- 170° wide viewing angle
- 2.8 mm color Super CMOS sensor
- IP68 rated
- Resolution 520 TV lines
- Active pixels: 720 (H) x 480 (V)
- Image sensor: CMOS7070
- Operating Temperature: -22° C - 70° C
- AGC: auto White balance: auto
- Electronic shutter: 1/60 - 1/15,000 second
- Current consumption: Max 100mA. Power supply 12V DC
- .3 Lux light sensitivity
- Black color housing
- Dimensions:
- Dimension without mount:3/4" (W) x 1" (D) x 3/4" (H)
- Dimension with screw: 1-3/16" (W) x 1" (D) x 15/16" (H)
| Manufacturer | Savv |
|---|---|
| Part Number | FSC-707-B |
| Camera Sensor type | CMOS |
| Back up camera type | Surface Mount Camera |
| Camera diameter | 1/3 inch |
| Viewing Angle | 170 degrees |
| Wireless Transmission | Wired connection |
| Waterproof ingress protection | IP68 - Dust; Immersion beyond 1 m |
| Reverse Image | Selectable |
| Parking grid lines | Yes |
| Infrared Illumination | No |
| Built in Microphone | No |
| Connector Type | RCA Cable |
| Modulation | NTSC only |
| Operation Voltage | 12-15 Volt DC |
| Battery Powered | Hard wired |
| Color | Black |
| Overall Height | $0.75 |
| Overall Length | $1.00 |
| Overall Width | $0.75 |
| Warranty | 1 Year |
| Return period | 30 days |
| Exchange period | 30 days |
