DISCONTINUED - Pioneer GM-A3602 400 Watt Class AB 2-Channel Car Amplifier

DISCONTINUED - Pioneer GM-A3602 400 Watt Class AB 2-Channel Car Amplifier

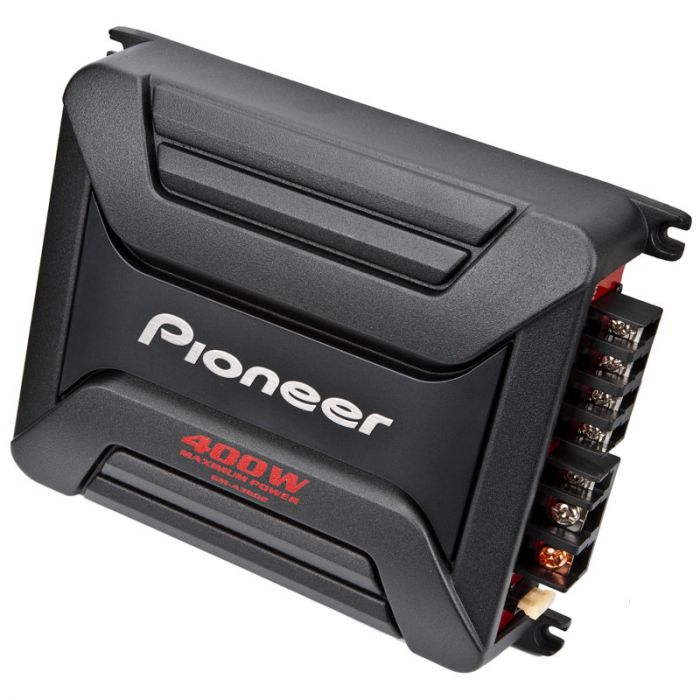

Pioneer GM-A3602 2 - Channel car amplifier - Main

More Views

Ships Free!

Overall Rating 5 (Based on 1 reviews)

Pioneer GM-A3602 Product Highlights

This item has been discontinued.
Click here for new model.

Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Frequently Bought Together


Unit includes: Power Car Amplifier,Speaker level input harness, and Instruction manual

Pioneer GM-A3602 400 Watt Class AB 2-Channel Car Amplifier features:
  • 400 Watts Max Power
  • Pulse Width Modulated MOSFET Power supply
  • Compact Design for Versatile Installation Options without compromising sound quality, Efficient Class-AB digital Car Amplifiers are 50% smaller that the Pioneer GM-Series Car Amplifiers.
  • Improved Protection circuit senses internal temperature and automatically lowers input level to prevent heat damage. Stability circuitry allows connection to 1 ohm subwoofer systems which allows connection of large or multiple subwoofers.
  • Variable Low Pass filters and high pass filters allow you to adjust the playback frequencies from 40 Hz to 500 Hz with 12dB per octave slopes
  • Speaker level inputs allow you to connect this Car Amplifier stereo system that do not have RCA outputs. The is very typical for OEM head-units and you can now avoid adding separate line level converters.
  • Remote turn on by auto signal sense, so you do not need to run a remote turn on lead with OEM head-units
  • 2 channel RCA inputs accepts up to 6.5 volt input signals
  • RCA Pass through outputs to connect multiple amplifiers in series
  • Bass boost 0-18dB
  • Gold plated screw terminal connections for Power Inputs and Speaker level outputs
  • Continuous Power Output (2 Ω, ≤ 1% THD+N): 90 W x 2
  • Continuous Power Output (4 Ω, ≤ 1% THD+N): 60 W x 2
  • Frequency Response: 10Hz to 35kHz
  • Total Harmonic Distortion (4 Ω): < 0.05% (1kHz)
  • Signal-to-Noise Ratio (IHF-A Weighted, at 1 kHz): >95dB
  • Dimensions: 7 1/8" (W) x 2 3/8" (H) x 9 3/8" (D)

Technical Specifications

Manufacturer Pioneer
Part Number GM-A3602
Amplifier Topology Class Class AB
Number of Channels 2 Channel
Total RMS Power at 1 ohm 0 Watts
Total RMS Power at 2 ohm 0 Watts
Total RMS Power at 4 ohm 0 Watts
RMS Output per Channel (x1 at 4 ohms) 0 Watts
RMS Output per Channel (x2 at 4 ohms) 0 Watts
RMS Output per Channel (x4 at 4 ohms) 0 Watts
Total Peak Power Output 0 Watts
Amplifier Bridging Bridgable @ 4 ohms
Minimum Impedance in Bridged Mode 4 ohm
Minimum Impedance in Un-Bridged Mode 2 ohm
Strappable Amplifier No
Strappable Power Output No
RCA Pre-amp Audio inputs No
RCA Pre-amp Audio outputs 1 Pair
Preamp voltage No
Speaker level inputs Yes
Gain Control Yes
Bass Knob / Remote Gain No
Built in Crossover High-pass, Low-pass
Cooling Fan No
Color Black
Warranty 1 Year
Recommended Power Wire Gauge No
Overall Height 0 Inches
Overall Length 0 Inches
Overall Width 0 Inches
CEA2006 Compliant N/A
UPC Code 884938219655

Customer Reviews

Great amplifier
Review by
Install (5 star for easy)
I bought this to use with with a Pioneer TS-SWX2502 subwoofer and this amp was perfect! It really filled out my sound system and had exactly was what I was looking for! Great service and price, I couldn't be happier. (Posted on 11/18/2014)
