Audiovox HR7012 7 inch Headrest Entertainment System for 2005 - 2008 Toyota RAV-4

Audiovox HR7012 7 inch Headrest Entertainment System for 2005 - 2008 Toyota RAV-4

Audiovox HR7012 for 2005 - 2008 Toyota RAV-4 - Main



More Views

Audiovox
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Audiovox HR7012-162005-RAV-4 Product Highlights

  • Dual 7 inch Headrest monitors
  • Configurable as monitors only, single DVD, or dual DVD
  • OEM perfectly matched to your vehicle's interior
  • Optional HDMI inputs
  • Optional wireless streaming
  • Optional game system
  • (2) Wireless headphones included
  • Available in 3 factory colors for 2005 - 2008 Toyota RAV-4
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Overview

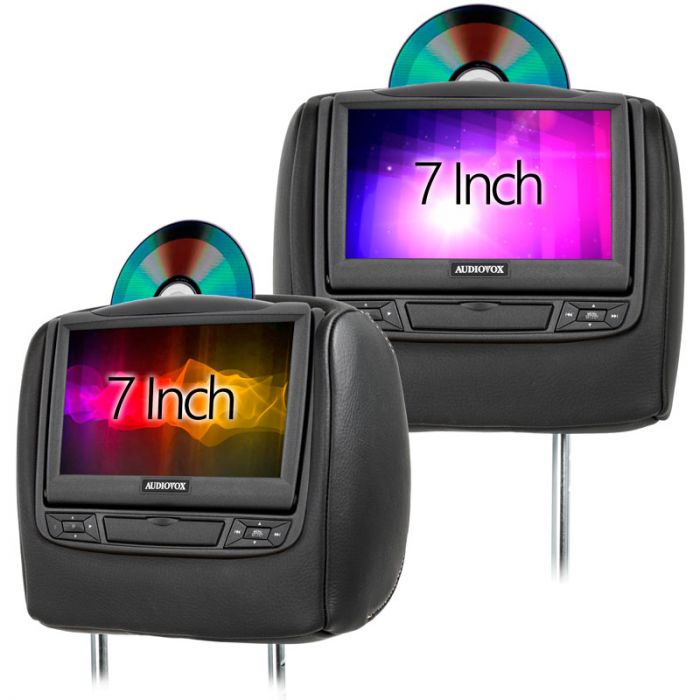

Audiovox HR7012 7 inch Headrest Entertainment System for 2005 - 2008 Toyota RAV-4
Monitor features: Audiovox HR7012 7 inch DVD Headrest Monitor system
  • 7 inch high density LCD displays for excellent video quality
  • OEM (Factory Matching) styling, with physical buttons for quick control of monitor and DVD functions
  • Swivel screen for optimal viewing even when vehicle seat is not in an optimal position
  • Bright LED back-lite system for excellent color and day-time viewing
  • Dual Channel IR Headphone transmitter to broadcast audio to included wireless headphones (Add as many headphones as you would like)
  • Wireless FM modulator to broadcast audio to the speakers of your car by tuning the radio to the proper station
DVD features: Audiovox HR7012 Swivel screen and DVD being inserted
  • Plays DVD, VCD, CD-RW, CD-R, DVD-R, DVD-RW, MP3, MPEG4, and JPEG
  • Region 1 DVD player
  • Electronic shock protection with built in buffer
  • Top slot-load design for easy disc insertion
  • Optional purchase
HR7012MA features: HR7012MA - RCA inputs, Headphone jack, and USB input
  • Share DVD media between both screens, play one DVD on both screens.
  • USB input for stored media on Jump drive such as MP3's and MP4's. (Can be shared with other screen)
  • Front RCA Audio Video input for easy connection to media players and other devices. (Can be shared with other screen)
  • Wired headphone jack so you can use your favorite wired headphones.
HR7012D features: HR7012D - USB input and Front HDMI input
  • Share DVD media between both screens, play one DVD on both screens.
  • Individual HDMI inputs HDMI source can be displayed on a single screen, it will also send the HDMI signal to other display.
  • USB input USB can be used as an input for stored media on Jump drive such as MP3's and MP4's or as a charging port for phones, tablets, Amazon Fire TV Stick, Roku, or Google Chromecast. Can be shared with other screen. (1 amp 5 volt USB power output)
Additional Options:
Optional Single HDMI input or WiFi Streaming
  • Option 1:
    HDMI input
    Central HDMI input with flush mount dongle. Easily place the HDMI input where it is easy to connect additional sources such as a game system or your phone for streaming services. Provides a third HDMI input for those that select front HDMI (Optional) and will provide a single HDMI input for monitor only systems or units without front HDMI input.
  • Option 2:
    Wireless streaming
    Mirror your apps, music, and video's from your smartphone to each or both headrests. Supports Miracast, DLNA and AirPlay protocols for Apps, Audio and Video files. (See exclusions below)
  • Wireless Streaming Exclusions Not all apps or purchased media will allow wireless content streaming due to copyright protection and OS restrictions.
Upholstery features: Factory matching upholstery with matching stitching
  • Headrests are factory color matched to your vehicles interior in cloth or leather upholstery (Does not match aftermarket leather interiors)
  • Leather and cloth matches in grain and texture
  • Matching color stitching and/or piping if vehicle is equipped with these options
  • Chrome hollow posts so all wiring is concealed within the seat
  • Central control box that both headrests connect to, box provides cross connections and provide video inputs and outputs
  • Independent lab crash safety tested and meet or exceed factory vehicle crash tests (Certificate is available)
(Optional) Game System Optional gaming system with wireless controllers Gaming features:
  • 32-bit gaming system with excellent game play and graphics
  • Includes two wireless controllers for thrilling battles in the back seat
  • 54 Built in games
  • Optional, can be added at the time of purchase or after
HR7012MA Inputs and Outputs:
  • 1 - RCA Audio Video output on control box
  • 1 - RCA Audio Video input on control box
  • 2 - USB inputs (USB on each monitor)
  • 2 - RCA Audio Video inputs (Front of each monitor)
  • 2 - 3.5 mm wired headphone jack (Front of each monitor)
  • 1 - HDMI Video input on control box (Optional upgrade)
  • 1 - Wired FM modulator output (Audiovox FMDIRB Wired FM modulator sold separately)
  • 1 - Wireless FM modulator antenna output
  • 2 - Headrest signal output cables
  • 2 - Headrest power output cables
  • 1 - MVGP1 Game system input
HR7012D Inputs and Outputs:
  • 1 - RCA Audio Video output on control box
  • 2 - USB inputs (USB on each monitor)
  • 1 - HDMI Video input on control box (Optional upgrade)
  • 2 - HDMI inputs (HDMI on each monitor)
  • 1 - Wired FM modulator output (Audiovox FMDIRB Wired FM modulator sold separately)
  • 1 - Wireless FM modulator antenna output
  • 2 - Headrest signal output cables
  • 2 - Headrest power output cables
  • 1 - MVGP1 Game system input
What's in the box:
  • (2) 7 inch Headrests LCD's
  • (2) OEM Matching Headrests
  • (2) Remote controls
  • (2) Two-channel wireless channels
  • (4) Monitor extension cables
  • (1) Power Cable
  • (1) Control box

Special Order Note: Audiovox replacement headrests are made to order, build time is 1-3 business days, please allow time for assembly before shipping. Please select vehicle color carefully as these headrests are special order items and are not-returnable. Correctly ordered but non-matching headrests are exchanged with correctly matching headrests.

Technical Specifications

Manufacturer Audiovox
Part Number HR7012-162005-RAV-4
LCD Screen Size 7 inch - 8 inch
Native Screen Resolution 800 x 480
LCD Screen Brightness 350 Nit
LCD back light type LED
Widescreen Display 16:9 Widescreen Display
Swivel Screen Yes
Touchscreen No
Built-in DVD Player Optional
Last Position Memory Yes
Dual DVD capable Configurable
Anti-Shock Yes
Headphone Transmitter Two Channel
Headphone Jack No
Built in Speakers No
Built in FM Modulator Yes
HDMI input Optional
VGA input No - VGA input
Front mounted auxiliary input 3.5 mm audio/video input
Audio Video inputs 1 Audio Video Input
Audio Video Outputs No
USB input Yes
SD Card input No
Wireless Remote Control Yes
Built in Game System No
AV7900 System Selection No
Warranty 1 Year
Vehicle Year 2005, 2006, 2007, 2008
Vehicle Brand Toyota
Vehicle Model Rav-4
Interior color No
Headrest Type Standard Headrest
UPC Code No
