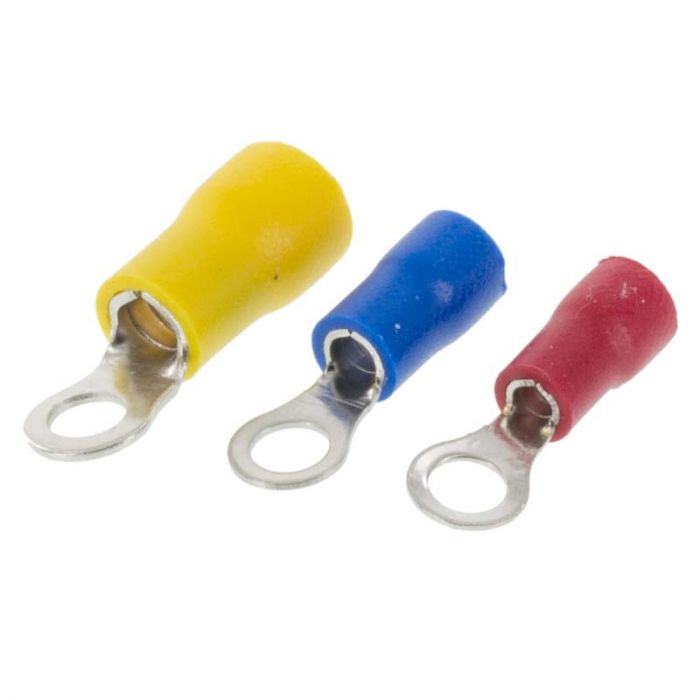

Metra IBR16 (3) Wire Size Crimp Nickel #8 and #10 Ring Terminals - 24 pieces
Metra IBR16 (3) Wire Size Crimp Nickel #8 and #10 Ring Terminals - 24 pieces
Key Features
Properly terminate virtually any wire to minimize shorts and maximize current delivery with a ring terminal Nickel plated for superior power transfer with added durability Contains (4) pieces of #8 10/12, #8 14/16, #8 18/22, #10 10/12, #10 14/16, #10 18/22 gauge ring terminals Contains 24 Ring Terminals
Unit includes: (4) #8 10-12 gauge, (4) #8 14-16 gauge, (4) #8 18-22 gauge, (4) #10 10-12 gauge, (4) #10 14-16 gauge, (4) #10 18-22 gauge
Metra IBR16 (3) Wire Size Crimp Nickel Plated Ring Terminals - 24 pieces
Features:
Properly terminate virtually any wire to minimize shorts and maximize current delivery with a ring terminal
Nickel for superior power transfer with added durability
Bulk packaging
Contains 24 pieces, 4 sizes of #8 and #10 (3) wire sizes
10/12 Gauge #8 Dimensions:
Wire opening: 0.196"
Ring outer diameter: 0.30" O.D.
Ring inner diameter: 0.16" I. D.
10/12 Gauge #10 Dimensions:
Wire opening: 0.196"
Ring outer diameter: 0.35" O.D.
Ring inner diameter: 0.19" I. D.
14/16 Gauge #8 Dimensions:
Wire opening: 0.11"
Ring outer diameter: 0.26" O.D.
Ring inner diameter: 0.16" I. D.
14/16 Gauge #10 Dimensions:
Wire opening: 0.11"
Ring outer diameter: 0.35" O.D.
Ring inner diameter: 0.19" I. D.
18/22 Gauge #8 Dimensions:
Wire opening: 0.09"
Ring outer diameter: 0.26" O.D.
Ring inner diameter: 0.16" I. D.
18/22 Gauge #10 Dimensions:
Wire opening: 0.09"
Ring outer diameter: 0.31" O.D.
Ring inner diameter: 0.19" I. D.
More Information
Manufacturer
Metra
Part Number
IBR16
Input wire gauge
Assorted
Color
Assorted
Warranty
1 Year
UPC Code
086429170272
Return period
30 days
Exchange period
30 days
