The Quality Mobile Video K2247 is a compact, professional-grade 1080p 4-channel mobile DVR designed for fleet vehicles, trucks, and commercial applications. It delivers high-quality H.264 recording from up to four AHD cameras with synchronized 4-channel audio, built-in GPS/BD for location tracking, and a G-Sensor for impact detection. Featuring dual SD card slots (up to 128GB), lockable anti-tamper design, wide 8-36V power input, motion detection, timer recording, and UPS power protection, this rugged DVR ensures reliable, tamper-proof surveillance and easy video playback on any computer.
Features:
- 1080p (1920 x 1080) H.264 Mobile DVR system with high quality recording of everything as it happens in your vehicle or truck
- Utilizes AHD signal type for excellent video quality
- Records 4 Channel video and 4 Channel audio
- Real-time HD Video Recording, 1080P / D1 / HD1 / CIF record modes with adjustable frame rate quality
- Dual SD card slots for a maximum capacity of 128GB of recording media
- Built-in GPS/BD module
- Built-in G-Sensor
- Can sync record GPS information, trace replay
- Vibration and dust resistant housing to prevent corruption and damage to SD cards
- Variable ignition delay so unit will not power down when vehicle is being started, can be set for diesel and gasoline engines
- Motion detection sensor for automatic recording as when you are stopped or parked recording starts for a set interval
- Timer record options (7-day with on and off time)
- Uninterrupted cycle recording, unit will record over oldest stored footage
- Quad screen output for use with any LCD monitor
- Vehicle identification menu for embedded vehicle information
- Time and Date stamp option
- Built in clock
- Password protect settings - User and Administrator level passwords
- Lockable front panel to prevent someone from removing the SD cards
- UPS Technology: All video information can be saved automatically when the power is cut off, and make sure that all the files can not be damaged
- Over-load / Over-voltage / Short Circuit / Reverse Protection
Recording:
- Records onto 2Gb - 64Gb Micro SD card (2 slots)
- Video Recording format: H.264
- Audio Recording format: G.726
- Playback video on any computer
- Video recording modes: HD (1920 x 1080)
Resolution modes:
- HD (1920 x 1080)
- D1 (704 x 576)
- HD1 (704 x 288)
- CIF (352 x 288)
Recording Methods:
- Normal Mode: Continuous recording will automatically start after booting
- Time Mode: Recording by day of week and time of day
- Alarm Mode: Recording by alarm input (Optional harness required)
Video Bit Rates:
- PAL: 100 FPS @ 50Hz
- NTSC: 120 FPS @ 60Hz
- CIF: 256Kbps - 1.5Mbps (8 levels of video quality)
- HD1: 600Kbps - 2.5Mbps (8 levels of video quality)
- D1: 800Kbps - 3Mbps (8 levels of video quality)
- 1080P: 4Mbps - 6Mbps (8 levels of video quality)
Playback Methods:
- Search Mode: Search video files anytime per day
- Support forward and backward play at the speed of: 2x / 4x / 8x / 16x
Inputs and Outputs:
- 4 - Camera inputs
- 1 - Monitor output for audio and video
- 1 - Front IR sensor
- 1 - SIM card slot
- Alarm inputs: Cam 1, Cam 2, Cam 3, Cam 4 (Optional harness required)
- Alarm output: Alarm 1, Alarm 2 (Optional harness required)
Power Requirements:
- Power input: 8 VDC - 36 VDC
- Power output: 12 VDC @ 2.5 amps
- Internal capacitor for data protection
Mounting:
- Includes 4 metal heavy duty mounting brackets
Dimensions:
- Dimensions without mount: 5.51" (W) x 1.65" (H) x 5.59" (D)

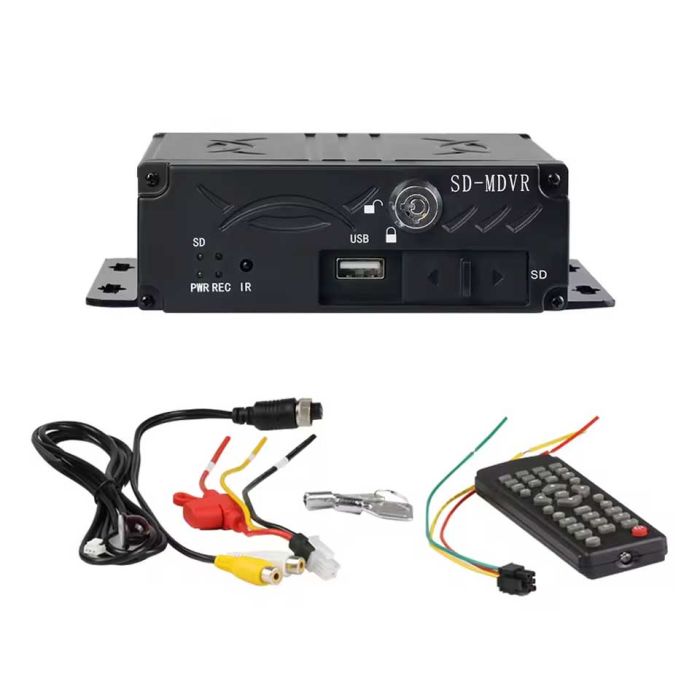

Inside the Box:
- 4-Channel 1080p HD DVR recorder
- Remote control
- 4 - Camera input adapter cables
- 1 - Video output adapter cable
- Mounting hardware
- Locking keys
- Instruction manual
Note: Cameras must be used in pairs, unit can record 4 channels of 1080p HD or 2 Channels in SD and 2 Channels in HD. You cannot use three HD cameras and one SD camera
