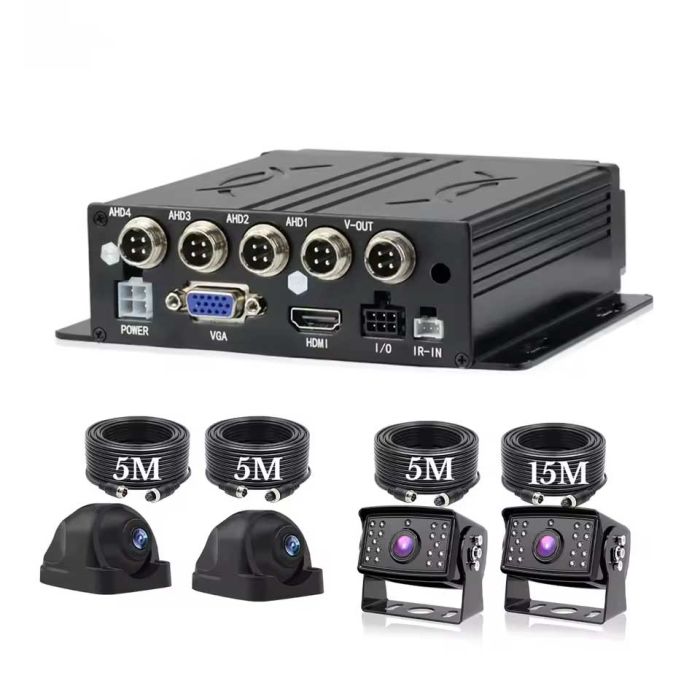

The Quality Mobile Video K2248 is a robust 1080p 4-channel mobile DVR built for reliable vehicle and fleet surveillance. This advanced system supports high-quality H.264 recording from four AHD cameras with 4-channel audio sync, integrated GPS tracking, and G-Sensor for event-based recording. It features dual storage options, lockable design to prevent tampering, wide voltage operation (8-36V), motion detection, timer recording, and power protection features, making it ideal for commercial trucks, vans, and fleet applications. Playback is simple on any computer, with embedded vehicle data and location information.
Features:
- 1080p (1920 x 1080) H.264 Mobile DVR system with high quality recording of everything as it happens in your vehicle or truck
- Utilizes AHD signal type for excellent video quality
- Records 4 Channel video and 4 Channel audio
- Real-time HD Video Recording, 1080P / D1 / HD1 / CIF record modes with adjustable frame rate quality
- Dual SD card slots for a maximum capacity of 128GB of recording media
- Built-in GPS/BD module
- Built-in G-Sensor
- Can sync record GPS information, trace replay
- Vibration and dust resistant housing to prevent corruption and damage to SD cards
- Variable ignition delay so unit will not power down when vehicle is being started, can be set for diesel and gasoline engines
- Motion detection sensor for automatic recording as when you are stopped or parked recording starts for a set interval
- Timer record options (7-day with on and off time)
- Uninterrupted cycle recording, unit will record over oldest stored footage
- Quad screen output for use with any LCD monitor
- Vehicle identification menu for embedded vehicle information
- Time and Date stamp option
- Built in clock
- Password protect settings - User and Administrator level passwords
- Lockable front panel to prevent someone from removing the SD cards
- UPS Technology: All video information can be saved automatically when the power is cut off, and make sure that all the files can not be damaged
- Over-load / Over-voltage / Short Circuit / Reverse Protection
Recording:
- Records onto 2Gb - 64Gb Micro SD card (2 slots)
- Video Recording format: H.264
- Audio Recording format: G.726
- Playback video on any computer
- Video recording modes: HD (1920 x 1080)
Resolution modes:
- HD (1920 x 1080)
- D1 (704 x 576)
- HD1 (704 x 288)
- CIF (352 x 288)
Recording Methods:
- Normal Mode: Continuous recording will automatically start after booting
- Time Mode: Recording by day of week and time of day
- Alarm Mode: Recording by alarm input (Optional harness required)
Video Bit Rates:
- PAL: 100 FPS @ 50Hz
- NTSC: 120 FPS @ 60Hz
- CIF: 256Kbps - 1.5Mbps (8 levels of video quality)
- HD1: 600Kbps - 2.5Mbps (8 levels of video quality)
- D1: 800Kbps - 3Mbps (8 levels of video quality)
- 1080P: 4Mbps - 6Mbps (8 levels of video quality)
Playback Methods:
- Search Mode: Search video files anytime per day
- Support forward and backward play at the speed of: 2x / 4x / 8x / 16x
Inputs and Outputs:
- 4 - Camera inputs
- 1 - Monitor output for audio and video
- 1 - Front IR sensor
- 1 - SIM card slot
- Alarm inputs: Cam 1, Cam 2, Cam 3, Cam 4 (Optional harness required)
- Alarm output: Alarm 1, Alarm 2 (Optional harness required)
Power Requirements:
- Power input: 8 VDC - 36 VDC
- Power output: 12 VDC @ 2.5 amps
- Internal capacitor for data protection
Mounting:
- Includes 4 metal heavy duty mounting brackets
Dimensions:
- Dimensions without mount: 5.51" (W) x 1.65" (H) x 5.59" (D)
Inside the Box:
- 4-Channel 1080p HD DVR recorder
- (2) 1080p Front and Rear cameras
- (2) 1080p Side cameras
- Remote control
- 4 - Camera input adapter cables
- 1 - Video output adapter cable
- Mounting hardware
- Locking keys
- Instruction manual
Note: Cameras must be used in pairs, unit can record 4 channels of 1080p HD or 2 Channels in SD and 2 Channels in HD. You cannot use three HD cameras and one SD camera
