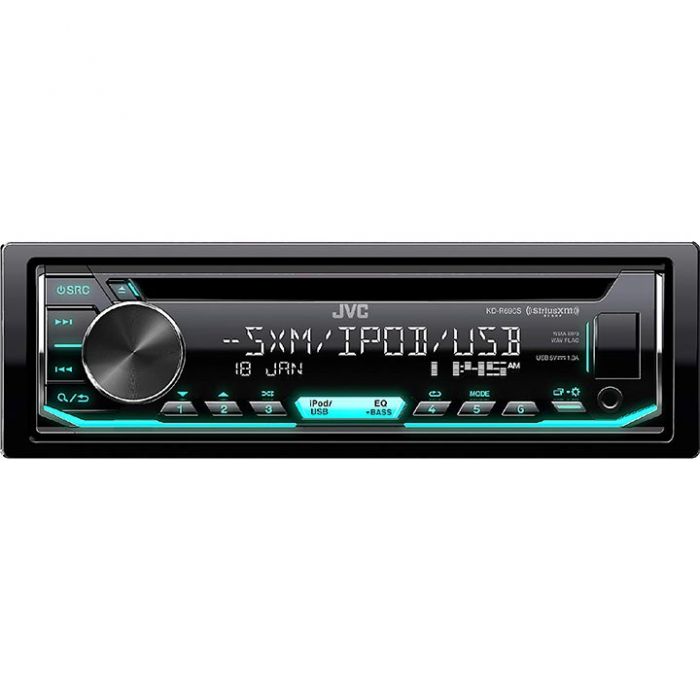

JVC KD-R690S Single DIN CD Receiver with Sirius XM
- Single-DIN in-dash CD receiver
- Sirius XM Ready
- Variable Button, White LCD Illumination
- Built-In MOSFET 50W x 4 Amplifier
- iPhone and Android Pandora support
- 2 sets of 2.5 volt RCA outputs
- Front USB connection
- Front 3.5mm Audio connection
JVC KD-R690S Single DIN CD Receiver
- Features:
- Single DIN In-Dash CD receiver
- Full detachable face-plate for extra security
- 2-Line VA(Vertical Alignment) LCD Display with animation effects
- Variable Button Illumination
- White LCD Illumination
- Front USB connection
- Android Open Accessory Protocol (AOA2) and Android™ Music Playback via USB
- AM/FM radio tuner
- Spanish Text Display Compatible
- iPod and iPhone control with standard USB to lightning interface cable, simply connect your iPhone or iPod touch and access your entire music library
- Power Output: 4 channels x 50 watts peak and 4 channels x 22 watts RMS
- MP3, WAV, WMA & FLAC playback from CD's and USB
- Displays CD text and MP3 ID3 Tag including title, artist & album
- Easily accessible with wireless remote and graphic touch screen
- Pandora, iHeart Radio and Spotify control
- JVC Remote app control
- Audio features:
- Plays CD, CD-R, CD-RW, MP3, WAC, WMA and FLAC
- Controls: Volume, Fader, Bass, Treble, Balance
- 3-band customizable Graphic equalizer with 13 presets
- Variable subwoofer level control with selectable Low-Pass digital crossover filter
- CD text information, display artist and song information
- MP3 ID3 tag information, display artist and song information
- 24-bit Digital Analog Converter (DAC) to enhance your MP3/WMA playback
- Digital Track Expander
- Loudness, Bass Boost, drvnEQ
- Tuner features:
- Includes AM & FM tuner with 24 preset stations memory
- Best Station Memory (BSM)
- RDS (Radio data service) Tuner
- SiriusXM radio ready with SXV300 Sirius XM tuner
- Inputs and outputs:
- 2 - 2.5V preamp outputs (front, rear or subwoofer)
- 1 - USB front connection accepts up to a 32Gb
- 1 - Front 3.5mm Audio connection for connection to multiple devices
- 1 - Steering wheel control input requires ASWC steering wheel interface
- Dimensions:
- Single DIN chassis
- Dimensions: 7-3/16"W x 6-1/4"D x 2-1/8"H
Manufacturer | JVC |
---|---|
Part Number | JVC KD-R690S |
Chassis Size | Single DIN |
Illumination color | Full Color |
2-Zone Color Illumination | Yes, Single-Color |
Faceplate features | Detachable face plate |
Disc Playback | CD |
Anti-Shock | Yes |
Amazon Alexa | No |
Built in Bluetooth | No Bluetooth |
NFC (Near Field Communication) | No |
HD Radio | No |
Radio Data Service - RDS | Yes |
Satellite Radio | Sirius XM Ready |
Front mounted auxiliary input | 3.5 mm audio input |
USB input | Front USB |
SD Card input | No |
Audio Formats | FLAC, Mpeg-3, WAV, WMA |
Time Alignment | No |
RCA Pre-amp Audio outputs | 2 Pairs (Front, Rear/Sub) |
Preamp voltage | 2.5 volts2.5 volts |
Steering Wheel Control | Yes, requires external module |
Built in Crossover | Low-pass |
Wireless Remote Control | Optional |
Warranty | 1 Year |
UPC Code | 046838076879 |
Return period | 30 days |
Exchange period | 30 days |
