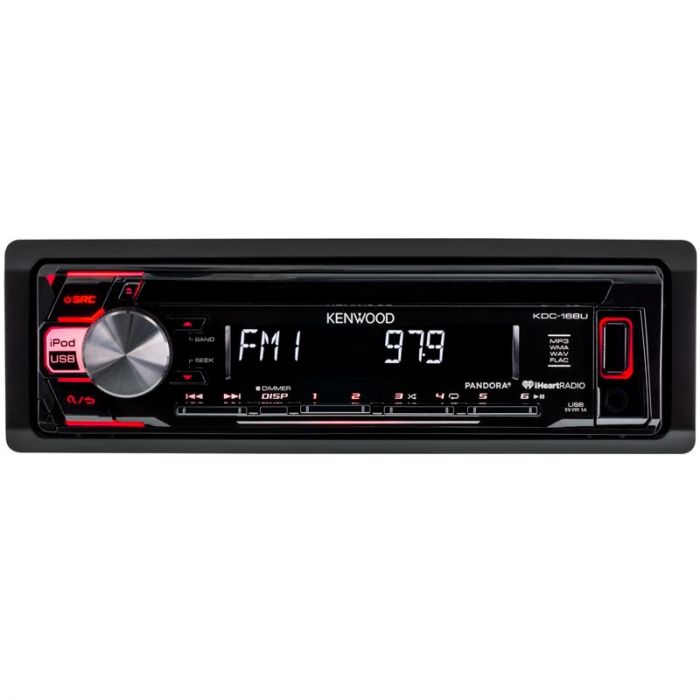

Kenwood KDC-168U Single DIN Car Stereo Receiver

$64.99
Out of stock
SKU
KDC-168U

Key Features

  • Single DIN In-Dash CD receiver
  • Full detachable face-plate for extra security
  • Red and White display illumination
  • Front USB and AUX inputs
  • 13-band EQ
  • 1 set of 2.5 volt RCA pre-amp outputs
Unit includes: Single DIN Stereo, Wiring harness, Mounting hardware, and Instruction manual

Kenwood KDC-168U Car Stereo CD Receiver

    Features:
  • Single DIN In-Dash CD receiver
  • Full detachable face-plate for extra security
  • Multi-Segmented 13 Digital 1 Line LCD Display
  • Front USB
  • No Bluetooth
  • Red and White display illumination
  • Dimmer and brightness control
  • AM/FM Radio tuner
  • Android Rapid Charge
  • Android Music Playback
  • Compatible Kenwood Music Play Android App
  • iPod interface control (30 Pin connector) with optional KCA-iP102 cable
  • iPod interface control (Lightning connector) with optional KCA-iP103 cable
  • Mosfet Power amplifier with Output: 4 channels x 50 watts Peak and 4 channels x 22 watts RMS
  • Hidden CD-slot for extra clean look
  • Displays CD text and MP3 ID3 Tag including title, artist & album
  • Steering wheel control ready


Media playback features:
  • Plays CD, CD-RW, CD-R, MP3, WMA
  • Electronic shock protection with built in buffer
  • MP3/WMA/WAV/FLAC Audio Playback on CD/USB
  • MP3 ID3 tag information, display artist and song information
  • Linear PCM decoder for excellent digital audio quality
  • FLAC Audio Playback for high definition audio downloads (Up to 48kHz/16bit)
  • Pandora® Radio App Compatible from iPod touch, iPhone with proper cable
  • Pandora® Radio App Compatible from Android and Blackberry through Bluetooth
  • iHeart® Radio App Compatible from iPod touch, iPhone with proper cable
  • Aupeo® Radio App Compatible from iPod touch, iPhone with proper cable


Audio features:
  • 13-band parametric equalizer with 8 preset and custom options (Drive EQ / Natural / Rock / Pops / Easy / Powerful / User / Jazz)
  • Manual EQ with 62.5 Hz / 100Hz / 160 Hz / 250 Hz / 400 Hz / 630 Hz / 1 kHz / 1.6 kHz / 2.5 kHz / 4 kHz / 6.3 kHz / 10 kHz / 16 kHz frequency centers ±9dB
  • Tweeter High-Pass filter with variable slopes and crossover frequencies (Adjustable from 1 kHz to 12.5 kHz) and (Adjustable left and right gain from -6dB - 0dB
  • Low-Pass filter with variable slopes and crossover frequencies (Adjustable from 30 to 250 Hz) and (Adjustable slopes from -6dB / -12dB / -18dB / -24dB)
  • Variable subwoofer level control (-50dB to +10dB) with selectable Low-Pass digital crossover filter (Adjustable from 30 to 250 Hz) with variable slopes (Adjustable from -6dB / -12dB / -18dB / -24dB)
  • Subwoofer phase control 0° - 180°
  • Speaker size setup for perfect crossover mapping from subwoofer to door speakers (3.5" / 4" / 4.75" / 5" / 6.5" / 6.75" / 7" / 4x6" / 5x7" / 6x8" / 6x9" / 7x10")
  • Boost bass with 6 levels Level1 / Level2 / Level3 / Level4 / Level5 / Off
  • Sound reconstruction restores digital files
  • Loudness function (Boost bass and upper frequencies)
  • Drive EQ boosts specific frequencies in the audio signal to compensate the negative impact of road noise
  • Digital time alignment with independent front, rear, and subwoofer delay


Tuner features:
  • Radio AM & FM tuner with 24 preset stations memory
  • RDSB (Radio data service) Tuner


Inputs and outputs:
  • 2 - 2.5V preamp outputs (Front, Rear and Subwoofer)
  • 1 - Front 3.5mm rear audio input for connection to external source
  • 1 - Front USB connection
  • 1 - Steering wheel control input requires ASWC steering wheel interface


    Dimensions:
  • Single DIN chassis
  • Dimensions: 7"W x 6-1/4"D x 2"H
More Information
Manufacturer Kenwood
Part Number KDC-168U
Chassis Size Single DIN
Faceplate features Detachable face plate
Disc Playback CD
Built in Bluetooth No Bluetooth
NFC (Near Field Communication) No
HD Radio No
Radio Data Service - RDS Yes
Satellite Radio No
Front mounted auxiliary input 3.5 mm audio input
USB input Yes
Audio Formats Mpeg-3, WAV, WMA
RCA Pre-amp Audio outputs 1 Pair
Preamp voltage 2 volts
Steering Wheel Control Yes, requires external module
Built in Crossover Low-pass
Warranty 1 Year
UPC Code 0019048216885
Return period 30 days
Exchange period 30 days
