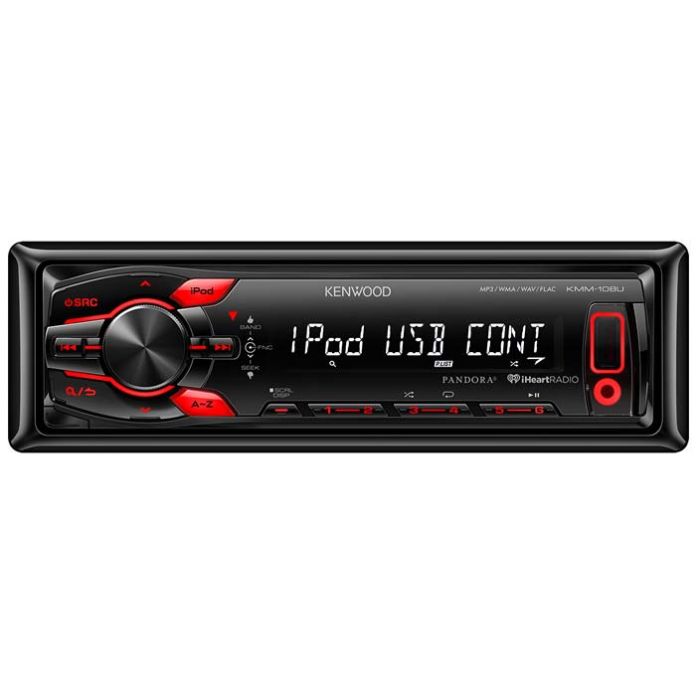

DISCONTINUED - Kenwood KMM-108U Single DIN Digital Media Car Stereo Receiver with Front USB

$78.99
Out of stock
SKU
KMM-108U

Key Features

  • Single DIN In-Dash mech-less receiver
  • Full detachable face-plate for extra security
  • Front USB input for thumb-drives
  • AM/FM tuner
  • 3-band EQ
  • Steering wheel control input
  • 2V preamp output (Rear/Subwoofer)
Unit includes: Single DIN Stereo, Wiring harness, Mounting hardware, and Instruction manual

Kenwood KMM-108U Single DIN Digital Media Car Stereo Receiver with Front USB

    Features:
  • Single DIN In-Dash Mech-less receiver plays all digital files but does not have a disc media player
  • Full detachable face-plate for extra security
  • Multi-Segmented 13 Digital 1 Line LCD Display
  • Red button illumination for perfect matching of your factory button color
  • Dimmer and brightness control
  • AM/FM tuner
  • iPod interface control (30 Pin connector) with optional KCA-iP102 cable
  • iPod interface control (Lightning connector) with optional KCA-iP103 cable
  • Mosfet Power amplifier with Output: 4 channels x 50 watts Peak and 4 channels x 22 watts RMS
  • Displays CD text and MP3 ID3 Tag including title, artist & album
  • Steering wheel control input
  • Front USB input for thumb-drives


Media playback features:
  • Does not contain a CD media player, plays digital media files only
  • MP3/WMA/AAC/FLAC Audio Playback on USB
  • MP3 ID3 tag information, display artist and song information
  • Linear PCM decoder for excellent digital audio quality
  • Pandora® Radio App Compatible from iPod touch, iPhone with proper cable
  • iHeart® Radio App Compatible from iPod touch, iPhone with proper cable


Audio features:
  • 3-band parametric equalizer with 8 preset and custom options (Drive EQ / TOP40 / Natural / Rock / Pops / Easy / Powerful / User / Jazz)
  • Manual EQ with Bass (60Hz / 80Hz / 100Hz / 200Hz) ±8dB, Mid (500Hz / 1.0kHz / 1.5kHz / 2.5kHz) ±8dB, and Treble adjustments (10kHz / 12.5kHz / 15kHz / 17.5kHz) ±8dB
  • Subwoofer output with selectable Low-Pass digital crossover filter (85Hz / 120Hz / 160Hz)
  • Subwoofer phase control 0° - 180°
  • Speaker size setup for door speakers (4" / 5" / 6" / 6x9")
  • Boost bass with 6 levels Level1 / Level2 / Level3 / Off
  • Sound reconstruction restores digital files
  • Loudness function (Boost bass and upper frequencies)
  • Drive EQ boosts specific frequencies in the audio signal to compensate the negative impact of road noise


Tuner features:
  • Includes AM & FM tuner with 24 preset stations memory


Inputs and outputs:
  • 1 - 2.5V preamp outputs (Rear/Subwoofer)
  • 1 - 3.5mm front audio input for connection to external source
  • 1 - Front USB connection
  • 1 - Steering wheel control input requires ASWC steering wheel interface


    Dimensions:
  • Single DIN chassis
  • Dimensions: 7"W x 6-1/4"D x 2"H
More Information
Manufacturer Kenwood
Part Number KMM-108U
Chassis Size Single DIN
Illumination color Red
Faceplate features Detachable face plate
Disc Playback No
Built in Bluetooth No Bluetooth
NFC (Near Field Communication) No
HD Radio No
Radio Data Service - RDS Yes
Satellite Radio No
Front mounted auxiliary input 3.5 mm audio input
Audio Video inputs 1 Audio Input
USB input Yes
SD Card input No
Audio Formats AAC, FLAC, Mpeg-3, WAV, WMA
RCA Pre-amp Audio outputs 1 Pair
Preamp voltage 2 volts
Steering Wheel Control No
Built in Crossover High-pass, Low-pass
Wireless Remote Control Yes
Warranty 1 Year
UPC Code 019048205841
Return period 30 days
Exchange period 30 days
