DISCONTINUED - Lorex LBC7083 960H Weatherproof Night-Vision Outdoor Security Camera

DISCONTINUED - Lorex LBC7083 960H Weatherproof Night-Vision Outdoor Security Camera

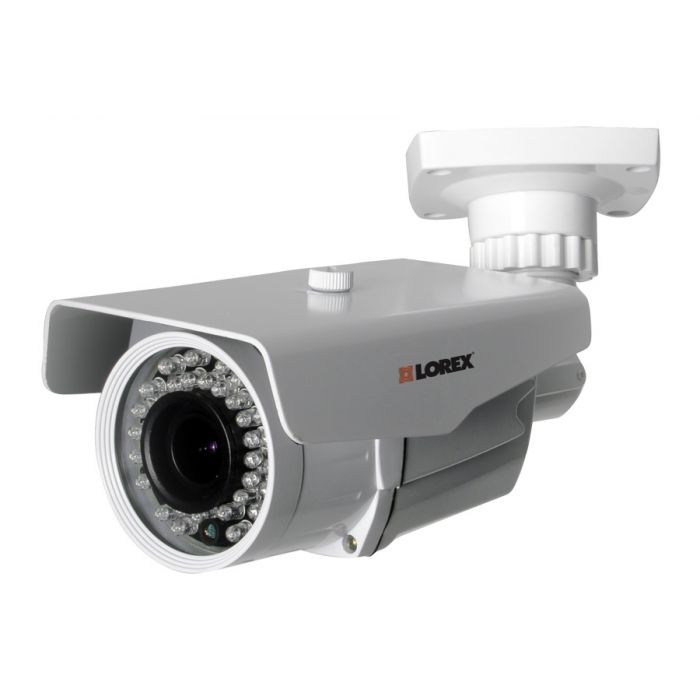

Lorex LBC7083 960H Weatherproof Night-Vision Outdoor Security Camera-main

More Views

Lorex
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Lorex LBC7083 Product Highlights

  • Features Sony EXview II Image Sensor
  • Provides 700 TVL of Resolution
  • Comes with 2.8-12mm Manual Zoom Lens
  • Offers Customizable Viewing Angle
  • Gives 33 to 104° Diagonal Field of View
  • Improves Low-light Performance with ClearNight Imaging
  • Automatically switches to B&W mode at night
  • Features Split Glass Design that Reduces IR Reflection
  • IP66-Rated Weatherproof Housing
  • Cable Pass-Through Bracket
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Overview

The Unit Includes: Lorex LBC7083 960H Weatherproof Night-Vision Outdoor Security Camera, Sunshade, 60' (18.28 m) BNC/Power Extension Cable, BNC Female to RCA Male Adapter, 12 VDC Power Adapter, Limited 3-Year Warranty

Lorex LBC7083 960H Weatherproof Night-Vision Outdoor Security Camera

Features:
  • Sony EXview II Image Sensor
  • 700 TVL of Resolution
  • 2.8-12mm Manual Zoom Lens
  • Customizable Viewing Angle
  • 33 to 104° Diagonal Field of View
  • Night-Vision Range of up to 110'
  • ClearNight Imaging
  • Split Glass Design Reduces IR Reflection
  • IP66-Rated Weatherproof Housing
  • Cable Pass-Through Bracket

Dimensions:
  • Size: 9.3" x 4.4" x 5.1"
  • Weight: 1.7 lb

Technical Specifications

Manufacturer Lorex
Part Number LBC7083
Max DVR Channels No
DVR HDD Capacity No
Length No
Wireless Transmission No
Infrared Illumination No
Built in Microphone No
Included cameras No
Imager Manufacturer Sony
Camera Sensor type CCD
Sensor Size 1/3 inch
Camera diameter 9.3 x 4.4 x 5.1" (235 x 111 x 130 mm)
Lines of Resolution 700
Minimum Illumination 0.1 Lux without IR LED 0 Lux with IR LED
Color Camera No
Viewing Angle No
IR LED Count 36
Infra-Red Wavelength 850nm
Zoom No
Gain Control No
Dynamic Range (dB) 48
Focus No
AGC (Automatic Gain Control) No
IR range (ft) No
OSD (On Screen Display) No
NTSC/PAL NTSC only
Lens Included No
Lens Type No
Electronic Shutter No
Relative Aperture (F-stop) No
Focal Length (mm) No
Color Grey
Housing material Metal
Vandal-proof No
Outdoor Yes
Waterproof ingress protection IP66 - Dust; String Water Jets/Waves
Battery Powered No
Ac Adapter included No
Operation Voltage 12 - 15 Volt DC
Power consumption Amps No
Connector Type BNC Connector
Signal type No
Warranty 1 Year
UPC Code 778597708301
