Metra LC-GMRC-05 Economy Radio Replacement Data Bus interface with Chime Retention Speaker
$71.99
In stock
SKU
LC-GMRC-05
Expert Knowledge
Talk to a specialist
- Designed for GM vehicles with Class 2 data buss
- Provides accessory output for databus signals (12-volt 3-amp capable output)
- Retains R.A.P. (retained accessory power) while doors remain closed so you can continue to listen to the radio until doors open
- Interface is designed to be used with factory amplified and non-amplified systems or when removing the amplified audio system
- Does not retain OnStar
- Retains all factory warning chimes with built in speaker

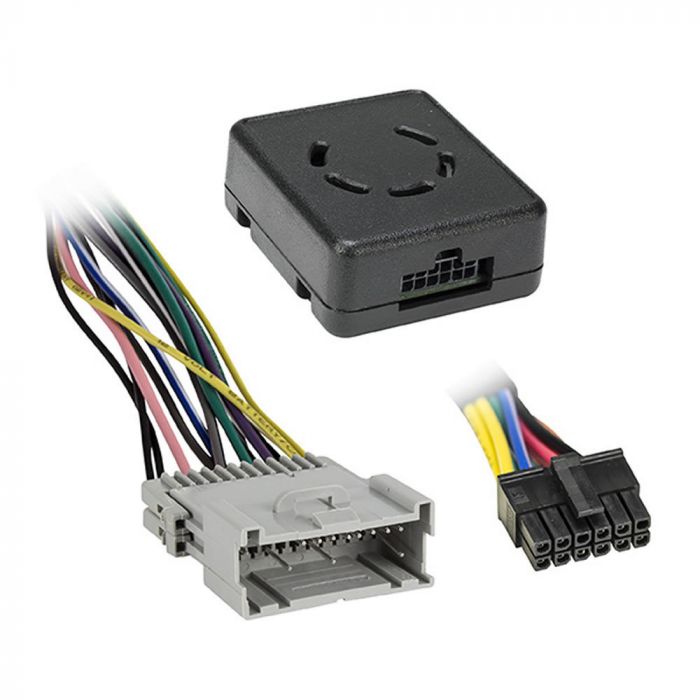

Unit includes: A) LC-GMRC-05, B) GM harness, and Instruction manual
Metra LC-GMRC-05 Economy Radio Replacement Data Bus interface with Chime Retention Speaker
Interface Features:
Connections:
Kit Components:
Tools Required:
Optional parts:
Metra LC-GMRC-05 Economy Radio Replacement Data Bus interface with Chime Retention Speaker
Interface Features:
- Designed for GM vehicles with Class 2 data buss
- Provides accessory output for databus signals (12-volt 3-amp capable output)
- Retains R.A.P. (retained accessory power) while doors remain closed so you can continue to listen to the radio until doors open
- Interface is designed to be used with factory amplified and non-amplified systems or when removing the amplified audio system
- Does not retain OnStar
- Retains all factory warning chimes with built in speaker
- Provides all connections to factory wiring and makes installing an aftermarket stereo very easy
- 4 - High level speaker inputs makes connections for aftermarket car stereo's to factory speakers easy
- USB firmware updatable
- Retains balance and fader
Connections:
- Yellow – 12V Constant
- Red – 12V Accessory
- Black - Ground
- Orange – Radio illumination (+)
- Orange with White Stripe – Radio Dimmer Wire (+)
- Blue with White stripe – Antenna turn on
- Green – Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White – Left Front Speaker (+)
- White with Black Stripe – Left Front Speaker (-)
- Purple – Right Rear Speaker (+)
- Purple with Black Stripe – Right Rear Speaker (-)
- Gray – Right Front Speaker (+)
- Gray with Black Stripe – Right Front Speaker (-)
Kit Components:
- A) LC-GMRC-LAN-03
- B) 10-pin to 30 pin harness
- C) Instruction manual
Tools Required:
- Panel Removal tool
- Cutting tool
- Crimping tool
- Electrical tape
- Crimp connectors
Optional parts:
- Wiring and Antenna Connections (Sold Separately)
- Metra 40-GM10 GM Antenna adapter
- 2005 - 2006 Equinox
- 2006 - 2006 Torrent
Vehicle Applications:
Chevrolet:
-
Oldsmobile:
| Manufacturer | Metra |
|---|---|
| Part Number | LC-GMRC-05 |
| Wiring harness function | Replace Factory Radio |
| Vehicle Year | 2005, 2006 |
| Vehicle Brand | Chevrolet, Oldsmobile |
| Vehicle Model | Equinox, Torrent |
| UPC Code | 086429294145 |
| Return period | 30 days |
| Exchange period | 30 days |
