Metra LC-GMRC-LAN-01 Economy Data Bus interface with Chime Retention Speaker

$54.99
In stock
Only 1 left
SKU
LC-GMRC-LAN-01

Key Features

  • Provides accessory output for databus signals (12-volt 3-amp capable output)
  • Retains R.A.P. (retained accessory power) while doors remain closed so you can continue to listen to the radio until doors open
  • Interface is designed to be used with factory non-amplified systems or when removing the amplified audio system
  • Retains all factory warning chimes with built in speaker
  • Provides all connections to factory wiring and makes installing an aftermarket stereo very easy
  • For select Buick, Cadillac, Chevrolet, GMC, Pontiac, Saturn, and Suzuki vehicles

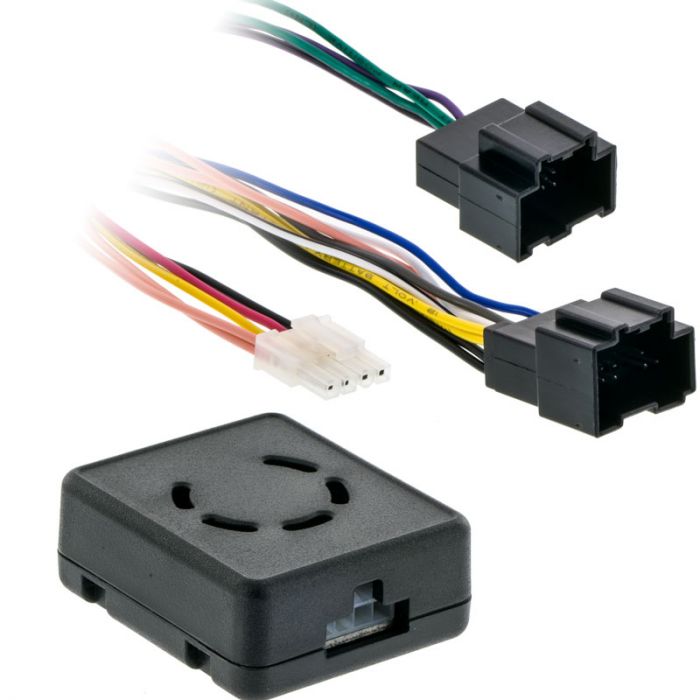

Unit includes: A) LC-GMRC-LAN-01, B) 10-pin to 30 pin harness, and Instruction manual

Metra LC-GMRC-LAN-01 Economy Data Bus interface with Chime Retention Speaker

Interface Features:
  • Provides accessory output for databus signals (12-volt 3-amp capable output)
  • Retains R.A.P. (retained accessory power) while doors remain closed so you can continue to listen to the radio until doors open
  • Interface is designed to be used with factory non-amplified systems or when removing the amplified audio system
  • Retains all factory warning chimes with built in speaker
  • Provides all connections to factory wiring and makes installing an aftermarket stereo very easy
  • 4 - High level speaker inputs makes connections for aftermarket car stereo's to factory speakers easy
  • USB firmware updatable
  • Retains balance and fader


Connections:
  • Yellow – 12V Constant
  • Red – 12V Accessory
  • Black - Ground
  • Orange with White Stripe – Not used
  • Blue – Antenna turn on
  • Green – Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White – Left Front Speaker (+)
  • White with Black Stripe – Left Front Speaker (-)
  • Purple – Right Rear Speaker (+)
  • Purple with Black Stripe – Right Rear Speaker (-)
  • Gray – Right Front Speaker (+)
  • Gray with Black Stripe – Right Front Speaker (-)


Kit Components:
  • A) LC-GMRC-LAN-01
  • B) 10-pin to 30 pin harness
  • C) Instruction manual


Tools Required:

Optional parts:
  • Wiring and Antenna Connections (Sold Separately)
  • Metra 40-GM10 GM Antenna adapter


  • Vehicle Applications:

    Buick:
    • 2006 - 2007 Lucerne
    • 2008 - 2008 Enclave


    Cadillac:
    • 2006 - 2008 DTS


    Chevrolet:
    • 2007 - and Up Avalanche
    • 2007 - 2009 Equinox
    • 2008 - and Up Express van (Full Size)
    • 2006 - 2010 Impala
    • 2006 - 2007 Monte Carlo
    • 2007 - and Up Silverado Pickup
    • 2007 - and Up Suburban
    • 2007 - and Up Tahoe
    • 2007 - 2010 Traverse


    GMC:
    • 2007 - 2010 Acadia
    • 2008 - and Up Savanna full size van
    • 2007 - and Up Sierra (New Body)
    • 2007 - and Up Yukon XL / Denali
    • 2007 - and Up Yukon


    Pontiac:
    • 2007 - 2008 Torrent
    • 2009 - 2009 Vibe (OnStar retention only)


    Saturn:
    • 2007 - 2009 Outlook
    • 2008 - 2009 Vue


    Suzuki:
    • 2007 - 2009 XL-7


More Information
Manufacturer Metra
Part Number LC-GMRC-LAN-01
Wiring harness function Replace Factory Radio
Warranty 1 Year
UPC Code 086429230709
Return period 30 days
Exchange period 30 days
