Accelevision LCD22 22" Accelevision TFT Raw Module

Accelevision LCD22 22" Accelevision TFT Raw Module

Accelevision LCD22 22" Accelevision TFT Raw Module

More Views

Ships Free!

Overall Rating 0 (Based on 0 reviews)

Accelevision LCD22 Product Highlights

Accelevision LCD22 22" Accelevision TFT Raw Module
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist


Unit Includes: Monitor, Wiring Harness and Remote Control

Amazing picture quality available in Raw Module form for all different types of applications.

22" Accelevision Widescreen Raw Module Features:
  • Super Low Profile!
  • 16:9 Widescreen format
  • 1 RCA Video Input
  • 1 S-Video Input
  • "OSD" On screen display for easy adjustment of color, tint, brightness, contrast and inputs
  • NTSC, PAL, Computer and S-Video compatible
  • Resolution: 1600 (H) x 1200 (V) pixels
  • Power Source: DC 12V @ 4.5 A
  • Viewing Angle: 80 (R) / 80 (L) / 80 (T) / 80 (B)
  • Brightness: 180 NIT

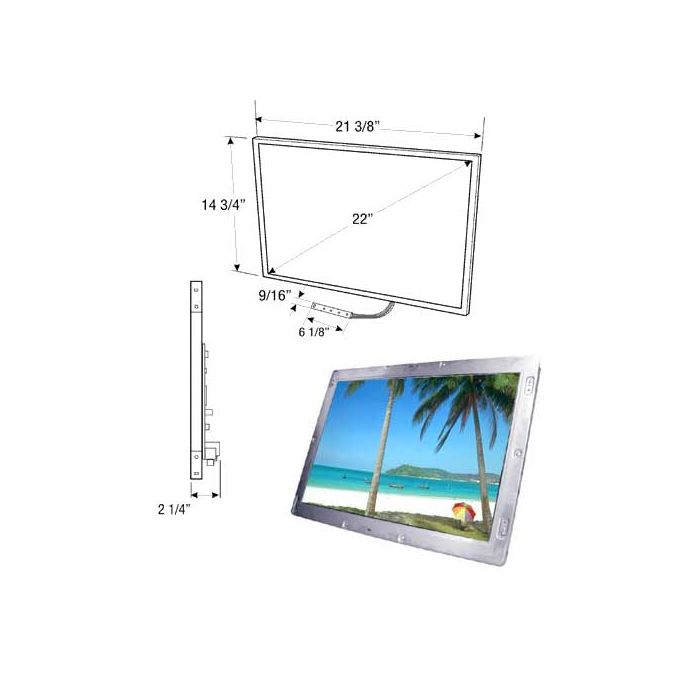

  • Dimensions: 14 3/4" (H) x 21 5/16" (W) x 1 7/16" (D)

Technical Specifications

Manufacturer Accelevision
Part Number LCD22
LCD Screen Size 21 inch - 24 inch
Native Screen Resolution 1600 x 1200
Widescreen Display 16:9 Widescreen Display
LCD back light type CCFL
LCD Screen Brightness 175 Nit
Swivel Screen No
Touchscreen No
Modulation NTSC and PAL
Built-in DVD Player No
Dual DVD capable No
Last Position Memory No
Anti-Shock No
Headphone Transmitter No
Headphone Jack No
Built in FM Modulator No
Built in Speakers No
HDMI input No
VGA input Yes - VGA input
Audio Video inputs 2 Video Inputs, 1 VGA Input
Audio Video Outputs No
Composite video input Yes
Front mounted auxiliary input No
USB input No
SD Card input No
Phone Mirroring N/A
Housing material Metal
Slide track on back No
Mounting thread for stand mount No
Mount included No
Trigger wire No
Image Flip Function No
Quad Screen No
Cigarette Lighter Cord Included No
Operation Voltage 12 - 15 Volt DC
Ac Adapter included No
Headrest Shroud included No
Headrest Type N/A
Zipper security cover No
Built in Game System No
Wireless Remote Control Yes
Monitor Color Black
Color Black
Overall Height 0 Inches
Overall Length 0 Inches
Overall Width 0 Inches
Warranty 1 Year
UPC Code No
