Accelevision LCD35QVGAFNTS 3.5" LCD module with VGA input and USB touchscreen
$192.99
In stock
SKU
LCD35QVGAFNTS
Expert Knowledge
Talk to a specialist
- 3.5 inch universal raw LCD module for use in any custom application
- VGA input for use with computers or chart plotters or any other high resolution device
- USB Touchscreen with drivers for Mac and PC operating systems
- Composite RCA video input

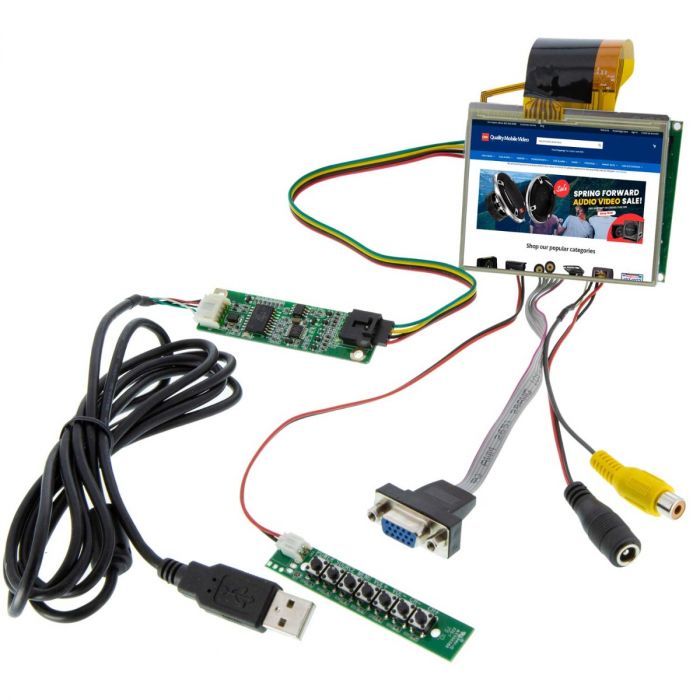

Unit includes: 3.5 inch raw module USB Touchscreen Harness and DC power harness
Accelevision LCD35QVGAFNTS 3.5" LCD module with VGA input and USB touchscreen
Accelevision LCD35QVGAFNTS 3.5" LCD module with VGA input and USB touchscreen
- Features:
- 3.5 inch universal raw LCD module for use in any custom application
- VGA input for use with computers or chart plotters or any other high resolution device
- USB Touchscreen with drivers for Mac and PC operating systems
- Composite RCA video input
- LED back lite for minimal power consumption and uniform back light intensity
- Board can be mounted to one side for thinner profile
- Operates on 10 - 12 volts DC
- NTSC/PAL auto switching
- On screen menu with adjustments for color, brightness, tint, hue, etc
- Small control board with buttons for power, menu, and OSD controls
- Resolution: 320 (H) x 240 (V)
- Power Source: DC 12V @ 275mA
- Brightness: 350 NIT
- Dimensions: 2-1/2" (H) x 3" (W) x 9/16" (D)
- Inputs and outputs
- 1 - RCA Composite video input
- 1 - VGA input
- 1 - DC power jack
- 1 - USB Touchscreen
| Manufacturer | Accelevision |
|---|---|
| Part Number | LCD35QVGAFNTS |
| LCD Screen Size | 3 inch - 4 inch |
| Native Screen Resolution | 320 x 240 |
| Widescreen Display | 4:3 Normal Aspect Ratio |
| LCD back light type | LED |
| LCD Screen Brightness | 275 Nit |
| Swivel Screen | No |
| Touchscreen | Yes |
| Modulation | NTSC and PAL |
| HDMI input | No |
| VGA input | Yes - VGA input |
| Audio Video inputs | 1 Video Input |
| Composite video input | Yes |
| Front mounted auxiliary input | None |
| USB input | Yes |
| SD Card input | No |
| Trigger wire | No |
| Image Flip Function | No |
| Quad Screen | No |
| Cigarette Lighter Cord Included | No |
| Operation Voltage | 12-15 Volt DC |
| Ac Adapter included | No |
| Wireless Remote Control | No |
| Overall Height | 2.50 inches |
| Overall Length | 0.50 inches |
| Overall Width | 3.00 inches |
| Warranty | 1 Year |
| California Proposition 65 |  Warning: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is [are] known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| UPC Code | 736836554669 |
| Return period | 30 days |
| Exchange period | 30 days |
