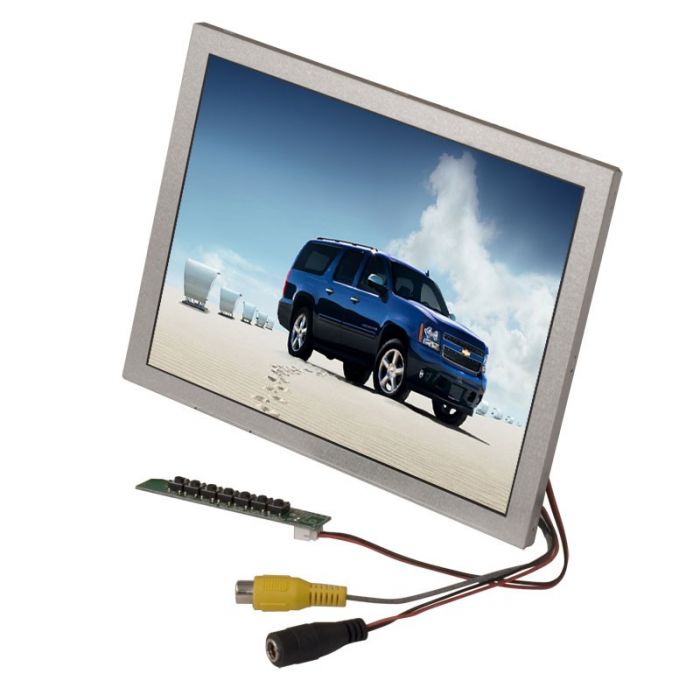

Accelevision LCD8LVGA 8" LED back lit LCD module - With VGA input
$139.99
In stock
SKU
LCD8LVGA
Expert Knowledge
Talk to a specialist
- 8 inch Active Matrix LCD panel
- LED back lite for minimal power consumption and uniform back light intensity
- Operates on 12 volts
- VGA input
- Single RCA Composite video input
Unit includes: Raw module and Wiring Harness
Accelevision LCD8LVGA 8" LED back lit LCD module - With VGA input
Accelevision LCD8LVGA 8" LED back lit LCD module - With VGA input
- Features:
- Wide Viewing Angle
- 8 inch Active Matrix LCD panel
- LED back lite for minimal power consumption and uniform back light intensity
- Operates on 12 volts
- NTSC/PAL
- VGA input
- Single RCA Composite video input
- Menu control buttons for on screen display and power control
- Resolution: 960 (H) x 234 (V)
- Power Source: DC 12V @ 120mA
- Push button power switch
- Brightness: 250 NIT
- Dimensions: 5 9/16" (H) x 7 3/16" (W) x 7/16" (D)
| Manufacturer | Accelevision |
|---|---|
| Part Number | LCD8LVGA |
| LCD Screen Size | 7 inch - 8 inch |
| Native Screen Resolution | 960 x 234 |
| Widescreen Display | 4:3 Normal Aspect Ratio |
| LCD back light type | LED |
| LCD Screen Brightness | 250 Nit |
| Touchscreen | No |
| Modulation | NTSC and PAL |
| Headphone Jack | No |
| Built in Speakers | No |
| HDMI input | No |
| VGA input | Yes - VGA input |
| Audio Video inputs | 1 Video Input |
| Audio Video Outputs | None |
| Composite video input | Yes |
| USB input | No |
| SD Card input | No |
| Housing material | Metal |
| Slide track on back | No |
| Mounting thread for stand mount | No |
| Mount included | No |
| Trigger wire | No |
| Image Flip Function | No |
| Operation Voltage | 12-15 Volt DC |
| Wireless Remote Control | No |
| Overall Height | 5.62 inches |
| Overall Length | 0.49 inches |
| Overall Width | 7.32 inches |
| Warranty | 1 Year |
| Return period | 30 days |
| Exchange period | 30 days |
