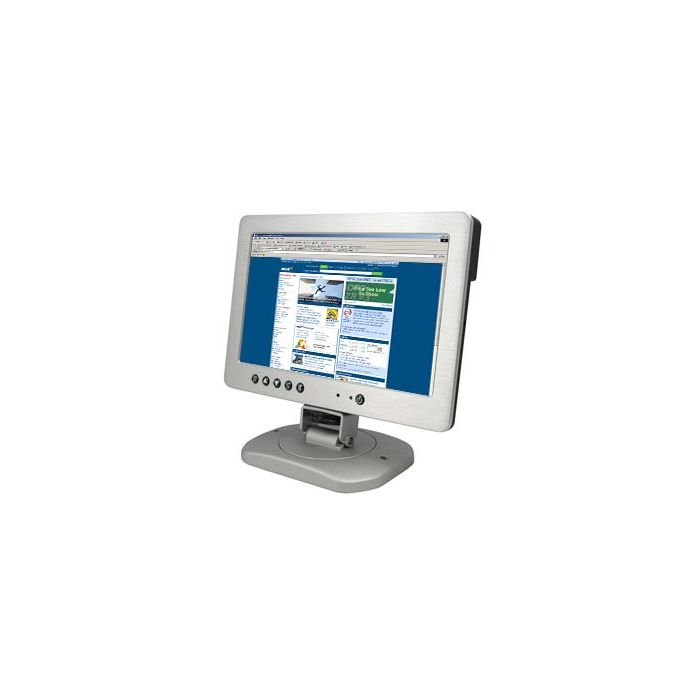

Universal Monitor LCDP1020TSV 10.2 inch LCD with VGA Input

Universal Monitor LCDP1020TSV 10.2 inch LCD with VGA Input

Universal Monitor LCDP1020TSV 10.2 inch LCD with VGA Input

More Views

Quality Mobile Video
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Quality Mobile Video LCDP1020TSV Product Highlights

  • Built in Speaker
  • Picture in Picture / Split Screen
  • Adjustable Backlight
  • VGA and RCA inputs
  • Ant Glare Coating
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist


Unit includes: Monitor, Stand, Wiring harness, and Remote control

Universal Monitor LCDP1020TSV 10.2" LCD with VGA Input features:
  • For In-Car Computing, PC, Server, GPS, and various VGA Use
  • 4-wire resistive Touch Screen (USB)
  • Multi-Monitor Touchscreen Support
  • VGA Input (15 pin D-SUB) x 1 and Video Input x 2
  • Picture In Picture / Split Screen
  • Audio Input / Built-in Speaker
  • NTSC / PAL Multi-System
  • 16/9 Aspect Ratio
  • High Resolution Display - up to 1024 x 768
  • Adjustable backlight level for night-time use
  • Dimmer Button for night-time use
  • High Performance Image and Video Signal Processor
  • AISS - Advanced Image-Scaling and Shaping
  • Last Input memory
  • Last Power setting memory
  • IR Remote Control
  • Auto power-on upon signal detection
  • Automatic display adjustment
  • On Screen Display Control
  • Copper Stand 360 Degrees / Height Adjustment
  • 20-Pin heavy-duty connector
  • Anti Glare Coating
  • Brushed, anodized aluminum face plate
  • Aluminum Casing
  • Supports 11V DC ~ 24V DC
  • E Mark Certified for Automotive use
  • Physical Resolution - 800 (H) x 480 (V) WVGA
  • Supported Resolution - 640 x 480 ~ 1024 x 768
  • Dot Resolution - 2400 x 480 = 1,152,000 (dots)
  • LCD Brightness (w/o Touchscreen) - 500 cd/m
  • Display Brightness (w/ Touchscreen) - 430 cd/m
  • Contrast Ratio - 300/1
  • Touch Screen Interface - USB port
  • Operating Voltage Range - DC 11V ~ 24V, 1A
  • Power Supply - DC 12V
  • Power Consumption - <8W
  • Operating Temperature - 23 F ~ 158 F
  • Dimension (WxHxD) 10.44" x 7.31" x 1.19"
  • Weight - 3.2 lbs
  • FCC, CE, E13 Certification
  • 18 Month Warranty

Technical Specifications

Manufacturer Quality Mobile Video
Part Number LCDP1020TSV
LCD Screen Size 9 inch - 10 inch
Native Screen Resolution 1024 x 768
Widescreen Display 4:3 Normal Aspect Ratio
LCD back light type CCFL
LCD Screen Brightness 500 Nit
Swivel Screen No
Touchscreen Yes
Modulation NTSC and PAL
Built-in DVD Player No
Dual DVD capable No
Last Position Memory No
Anti-Shock No
Headphone Transmitter No
Headphone Jack No
Built in FM Modulator No
Built in Speakers Yes
HDMI input No
VGA input Yes - VGA input
Audio Video inputs 2 Video Inputs, 1 VGA Input
Audio Video Outputs No
Composite video input No
Front mounted auxiliary input No
USB input Yes
SD Card input No
Phone Mirroring N/A
Housing material No
Slide track on back No
Mounting thread for stand mount No
Mount included Yes, Pedistal stand
Trigger wire No
Image Flip Function No
Quad Screen No
Cigarette Lighter Cord Included No
Operation Voltage No
Ac Adapter included No
Headrest Shroud included No
Headrest Type N/A
Zipper security cover No
Built in Game System No
Wireless Remote Control Yes
Monitor Color Grey
Color Grey
Overall Height 0 Inches
Overall Length 0 Inches
Overall Width 0 Inches
Warranty 1 Year
UPC Code No
