Accelevision LCDQUADS 4-Source Quad Camera Auto Switcher
$106.99
In stock
Only 3 left
SKU
LCDQUADS
Expert Knowledge
Talk to a specialist
- 4-Way intelligent video switcher for controlling front, rear, and blind-spot cameras
- 1 positive trigger per input
- Dual outputs: (1) monitor and (1) DVR
- Auto default to 360 vehicle driving mode

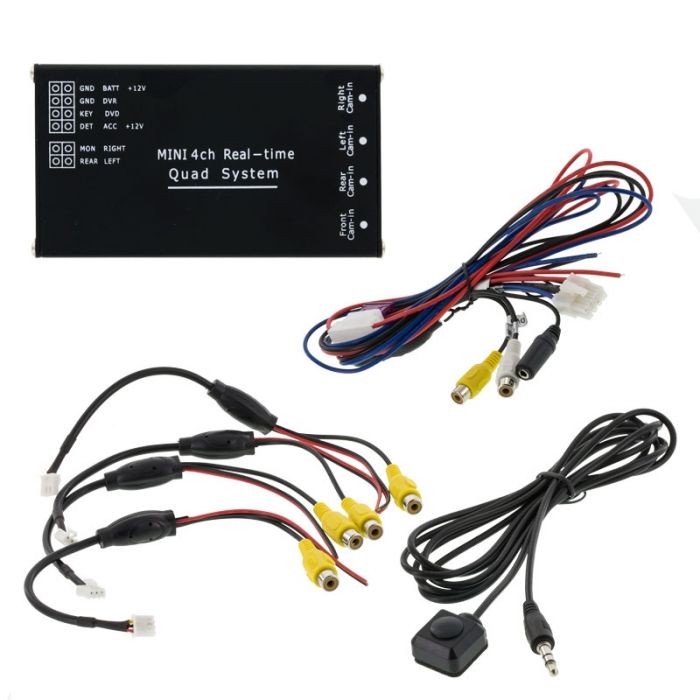

Unit includes: 4-way video switcher, Monitor output cable, (4) Camera input cables, (4) DC female power cables, (1) Main power and trigger harness, (1) Video output cable, (1) single button controller, and Instruction manual
Accelevision LCDQUADS 4-Source Quad Camera Auto Switcher
Accelevision LCDQUADS 4-Source Quad Camera Auto Switcher
-
Features:
- 4-Way intelligent video switcher for controlling front, rear, left, and right cameras
- 1 positive triggers per input to easily hook to any signal (accepts constant or pulsed signals)
- Auto default to 360 vehicle driving mode
- Auto switching to 3 camera mode on reverse and turn signal input
- Positive Input triggers accept input voltages in the range of 2 volts to 12 volts
- Monitor output with 6 different camera layouts
- DVR recorder output for 1/4 screen quadrant view all-time
- Camera layouts:
- Single button controller for 6 different camera layouts
- Two camera mode: Left and Right or Front and Rear
- Quad Screen: 1/4 quadrant (4 cameras) even distribution
- Quad Screen: 1/4 quadrant (4 cameras) front and rear camera large distribution left and right small distribution
- Quad Screen: 1/4 quadrant (4 cameras) left and right camera large distribution front and rear small distribution
- Tri Screen: 1/2 screen (3 cameras) left and right camera large distribution front and rear small distribution
- Inputs and Outputs
- 4 - Video inputs
- 4 - Positive trigger inputs (9Vdc - 12 Vdc)
- 1 - 12 Vdc power input
- 1 - 12 Vdc accessory power input
- 1 - Ground input
- 1 - Button controller input
- 1 - Video output to LCD Monitor
- 1 - Video output to DVR Recorder
- Wire connections
- Red - Constant (+) Powers the video switcher
- Blue - Accessory (+) turns the video switcher on
- White - Right camera input trigger (+) will trigger right camera input
- Grey - Back camera input trigger (+) will trigger back camera input
- Yellow - Left camera input trigger (+) will trigger left camera input
- Brown - unused
- Black - Ground (-)
| Manufacturer | Accelevision |
|---|---|
| Part Number | LCDQUADS |
| Audio Video inputs | 4 Video Input |
| Warranty | 1 Year |
| Audio Video Outputs | 2 Video outputs |
| Wireless Remote Control | Wired Remote |
| Item Returns | This item can be returned |
