Monitor features:

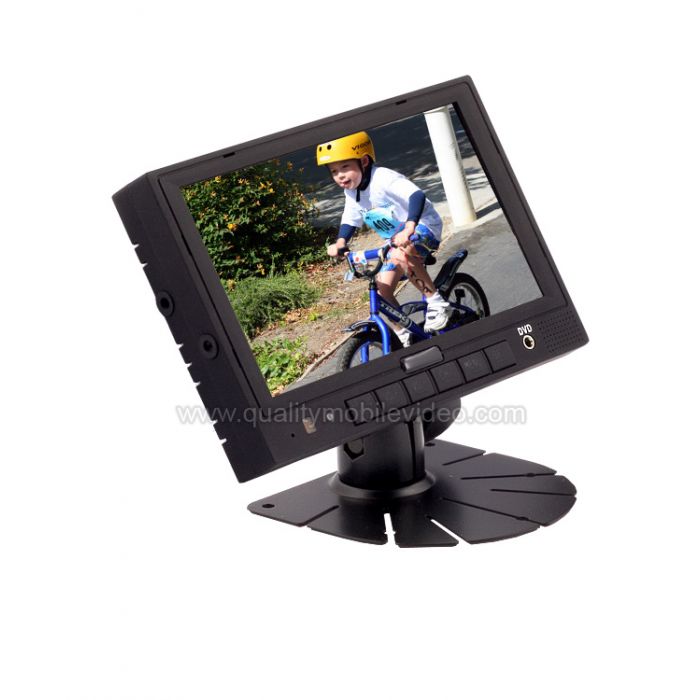

• 7 inch TFT LCD Color Monitor
• Aspect Ratio: 16:9 Format
• Video system: NTSC or PAL auto system
• Monitor Resolution: 1440 x 234
• Monitor Brightness: 350 cd/m2
• Contrast: 400:1
• Monitor Viewing Angle - Up:45; Down:65; Left/Right:65 degrees
• Monitor Dimensions (HxWxD) 5 5/16" x 7 7/8" x 1 9/16" (with stand)

Inputs and outputs:

• LCDRV700
• (1) Front Audio Video input - 3.5mm
• (2) Audio Video inputs with 4-pin connectors

Inputs and outputs:

• LCDRV700-QUAD
• 1 DVD/ AV input and 4 camera inputs
• Camera title can be set (max 8 characters)
• Single, Dual, Triple and Quad image or PIP functions
• Boot-strap display - single or split views
• 4 trigger wires control auto switching between cameras
• With trigger wire for dual picture, the relative cameras can be combined
• Priority of trigger wire can be set
• Backup distance grid and left/right turning indicator arrow are available
• Volume, brightness, color, contrast and sharpness for each camera can be set
• Auto switch to blue screen when there is no video input
• Live video output - connected monitor can be displayed in sync
• REC video output and picture - single or split
• Auto controlled day and night brightness mode
• Auto scan available and image switching time from 1~30 seconds
• Operates from 12V ~ 32V
• Supports max 4 x 300mA power output
• Power short protection
• On board speaker


• Video Inputs: 4 video inputs for cameras; peak value: 1Vp-p; impedance: 75 ohm
• Video Inputs: 1 DVD input; peak value: 1Vp-p; impedance: 75 ohm


• Audio Inputs: 4 audio inputs for cameras; peak value: 1Vp-p; impedance: 4.7K ohm
• Audio Inputs: 1 DVD input; peak value: 1Vp-p; impedance: 4.7K ohm


• Video outputs: 1 REC video output; peak value: 1Vp-p; impedance: 75 ohm
• Video outputs: 1 LIVE video output; peak value: 1Vp-p; impedance: 75 ohm


• Audio output: 1 REC audio output; peak value: 1Vp-p; impedance: 4.7K ohm



• Included
• Pedestal Stand Mount
• Visor Attachment
• Connectors and Cables
