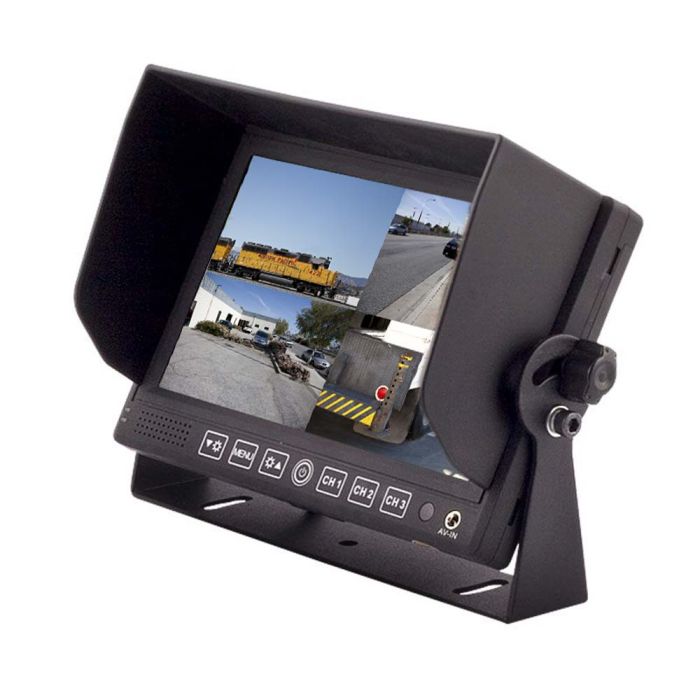

The Accele LCDRV700QUAD is a 6.95-inch backup camera monitor designed for RVs, trucks, commercial vehicles, and other large vehicles. Four camera inputs allow the monitor to display up to four camera images simultaneously, providing expanded visibility around the vehicle. Automatic switching displays the appropriate camera when activated by the trigger wire or manual selecting the camera. The included swivel mounting bracket allows convenient positioning with a ball joint for infinite flexibility. The monitor also features a built-in speaker and is compatible with an 4-pin rearview and side-view cameras.

Monitor features:

• 7 inch TFT LCD Color Monitor
• Aspect Ratio: 16:9 Format
• Video system: NTSC or PAL auto system
• Auto controlled day and night brightness mode
• Auto scan available and image switching time from 1~30 seconds
• Operates from 12V ~ 32V
• Supports max 4 x 300mA power output
• Power short protection
• On board speaker
• Monitor Resolution: 1440 x 234
• Monitor Brightness: 350 cd/m2
• Contrast: 400:1
• Monitor Viewing Angle - Up:45; Down:65; Left/Right:65 degrees

Inputs and outputs:

• (1) Front Audio Video input - 3.5mm
• (4) Audio Video inputs with 4-pin connectors
• (4) Camera triggers - 12 volt positive input

Camera views:

• Camera title can be set (max 8 characters)
• Single, Dual, Triple and Quad image or PIP functions
• Volume, brightness, color, contrast and sharpness for each camera can be set

Triggers:

• 4 trigger wires control auto switching between cameras
• With trigger wire for dual picture, the relative cameras can be combined
• Priority of trigger wire can be set
• Backup distance grid and left/right turning indicator arrow are available

Camera views:

• Auto switch to blue screen when there is no video input
• Live video output - connected monitor can be displayed in sync
• REC video output and picture - single or split

Dimensions:

• Monitor Dimensions with stand: 5-5/16" (H) x 7-7/8" (W) x 1-9/16" (D)
• Monitor only: 4-3/4" (H) x 7-3/16" (W) x 7/8" (D)
